Auxiliary Contact Block Front Fixing 4 Normally Open
Auxiliary Contact Block Front Fixing 4 Normally Open
Auxiliary Contact Block Front Fixing 4 Normally Open - Image 2
Auxiliary Contact Block Front Fixing 4 Normally Open - Image 3

Auxiliary Contact Block Front Fixing 4 Normally Open

£24.58 Incl. VAT

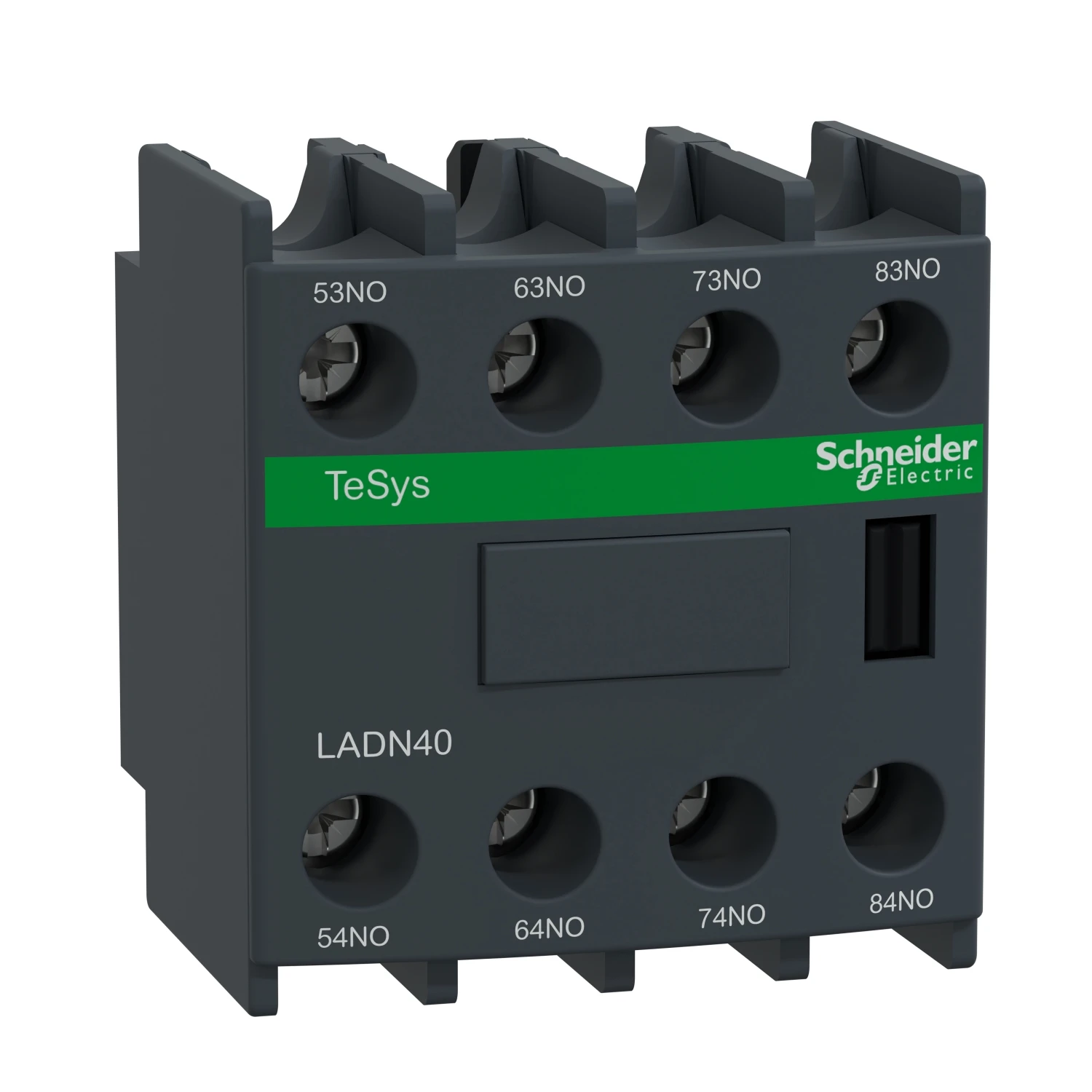

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 4NO contacts rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. · · It provides 4NO contacts rated up to 10A/690V AC, connection by screw clamp terminals. · · Clip-on front mounting, it procures high reliability and durability. · · System voltage: <= 690V AC · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · Mechanical durability: 30 Mcycles · · Minimum switching current/voltage: 5mA/17V · · Non-overlap time: 1.5ms (energisation/de-energisation) · · Ambient operating temperature: -5°C to 60°C · · IP2x Degree of protection

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LADN40 Categories: , , Brand: Part Number: 2500089280

Description

Technical Specifications  Technical Specifications Auxiliary contact block Rated operation current Ie at AC-15, 230 V 10 A Number of fault-signal switches 0 Number of contacts as change-over contact 0 Number of contacts as normally closed contact 0 Number of contacts as normally open contact 4 · Technical Data Sheet – Click to Download
