Auxiliary Contact Side Instantaneous Normally Open+Nc
Auxiliary Contact Side Instantaneous Normally Open+Nc
Auxiliary Contact Side Instantaneous Normally Open+Nc - Image 2
Auxiliary Contact Side Instantaneous Normally Open+Nc - Image 3
Auxiliary Contact Side Instantaneous Normally Open+Nc - Image 4

Auxiliary Contact Side Instantaneous Normally Open+Nc

£13.24 Incl. VAT

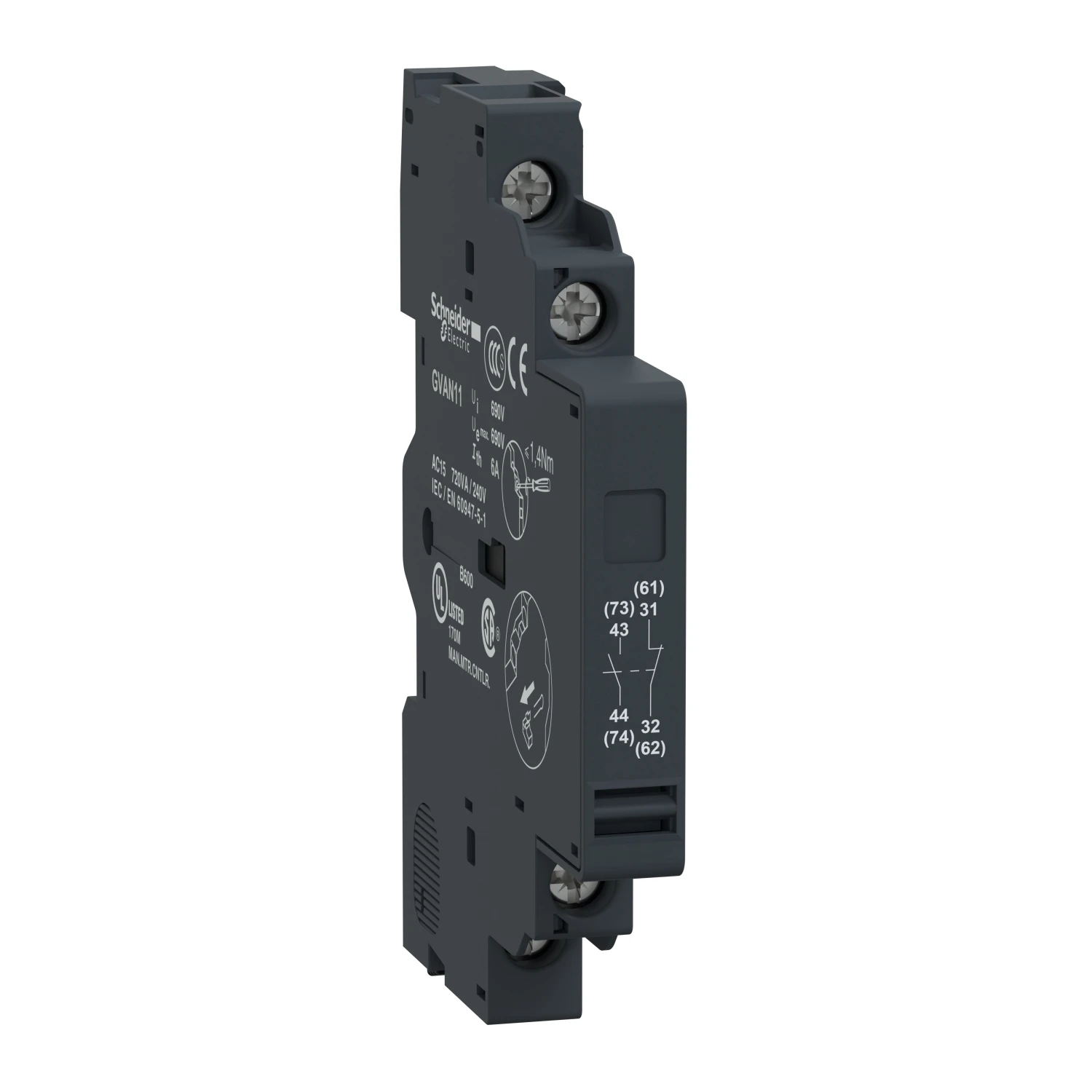

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. · · 1NO+1NC instantaneous auxiliary contacts. · · Rated for operation up to 6A/690V AC and 6A/240V DC. · · Conventional free air thermal current: 6A · · To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by screw clamp terminals. · · Mechanical durability: 100000 cycles · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · Tightening torque: 1.4Nm · · Product compatibility: GV2P, GV2L, GV2RT, GV2ME, GV2LE, GV3L, GV3P · · Compatibility code: GVAN

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GVAN11 Categories: , , Brand: Part Number: 2500091361

Description

Technical Specifications  Technical Specifications Auxiliary contact block Number of contacts as normally closed contact 1 Rated operation current Ie at AC-15, 230 V 3.3 A Number of fault-signal switches 0 Number of contacts as change-over contact 0 Number of contacts as normally open contact 1 · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188186
