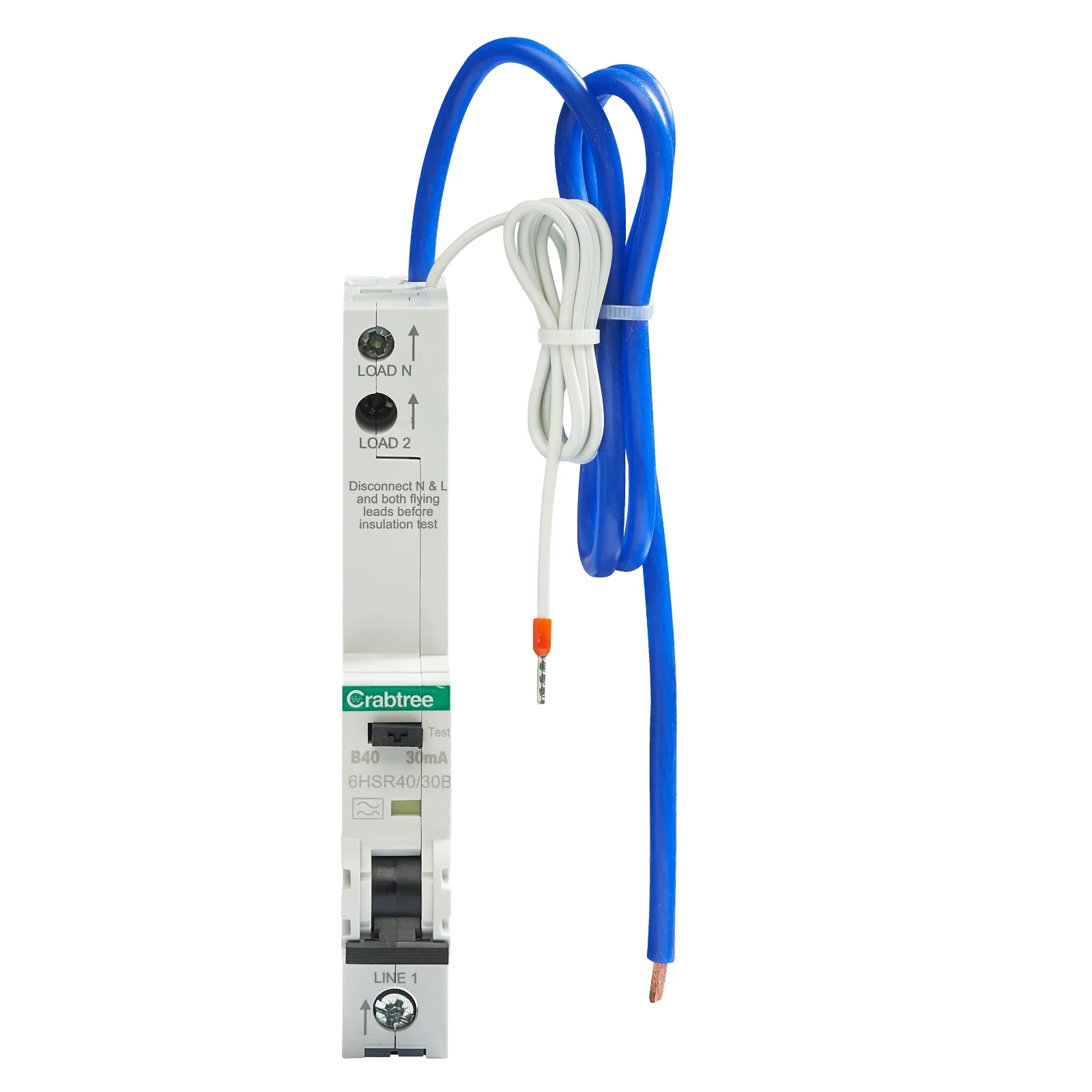

B40 30mA 10kA 1P+N Type A RCBO (1 Module Width)
£51.36 Incl. VAT
Crabtree Loadstar RCBO is a 40A, 30mA, single pole, Type B RCBO. It has terminal cable capacity of 16mm² and 18mm width. It is suitable for use within Loadstar distribution board. · · · Single Module 10kA RCBO · · 40A B curve (MCB), 30mA Type A (RCD) · · Neutral & Earth Tail lengths = 600mm · · Suitable for use in Crabtree Loadstar Distribution Boards
10 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Tripping characteristic (type/curve) B Rated insulation voltage Ui 400 V Width in number of modular spacings 1 Rated fault current 0.03 A Rated current 40 A Current limiting class 3 Rated voltage 230 V Number of protected poles 1 Over voltage category 3 Concurrently switching N-neutral No Ambient temperature during operating -5 – 45 °C Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Rated short-circuit breaking capacity according to EN 61009 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 1 Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
