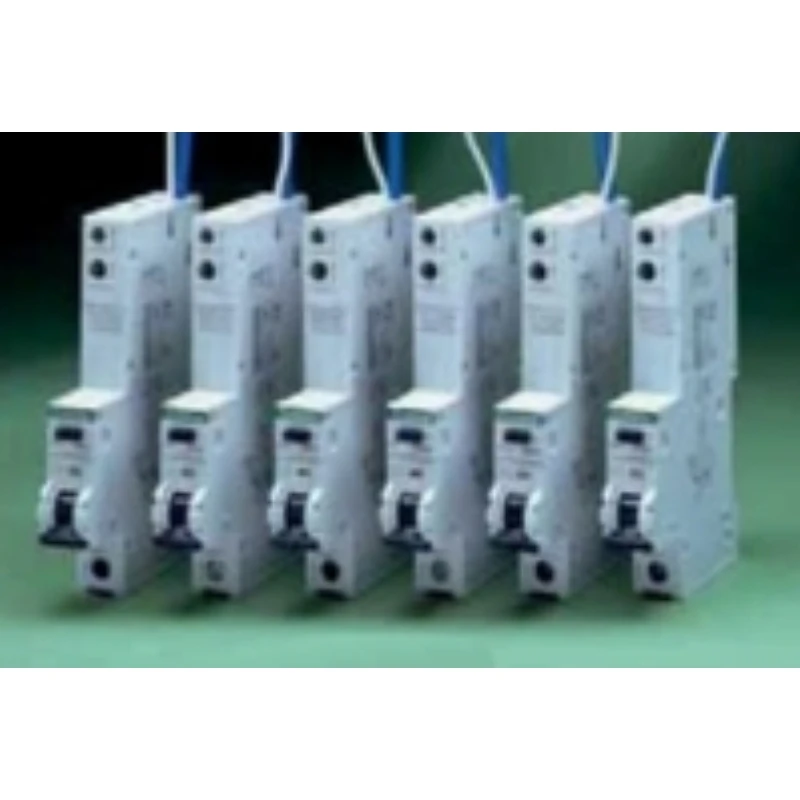

B50 30mA 10kA 1P+N Type A RCBO (1 Module Width)
B50 30mA 10kA 1P+N Type A RCBO (1 Module Width)
B50 30mA 10kA 1P+N Type A RCBO (1 Module Width) - Image 2
B50 30mA 10kA 1P+N Type A RCBO (1 Module Width) - Image 3

B50 30mA 10kA 1P+N Type A RCBO (1 Module Width)

£51.36 Incl. VAT

Crabtree Loadstar RCBO is a 50A, 30mA, single pole, Type B RCBO. It has terminal cable capacity of 16mm² and 18mm width. It is suitable for use within Loadstar distribution board. · · · Single Module 10kA RCBO · · 50A B curve (MCB), 30mA Type A (RCD) · · Neutral & Earth Tail lengths = 600mm · · Suitable for use in Crabtree Loadstar Distribution Boards

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6HSR50/30B Categories: , , Brand: Part Number: 2500371060

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Over voltage category 3 Rated short-circuit breaking capacity according to EN 61009 10 kA Number of poles (total) 1 Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 1 Current limiting class 3 Number of protected poles 1 Rated current 50 A Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Rated voltage 230 V Rated fault current 0.03 A Rated insulation voltage Ui 400 V Ambient temperature during operating -5 – 45 °C Flush-mounted installation No Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download
