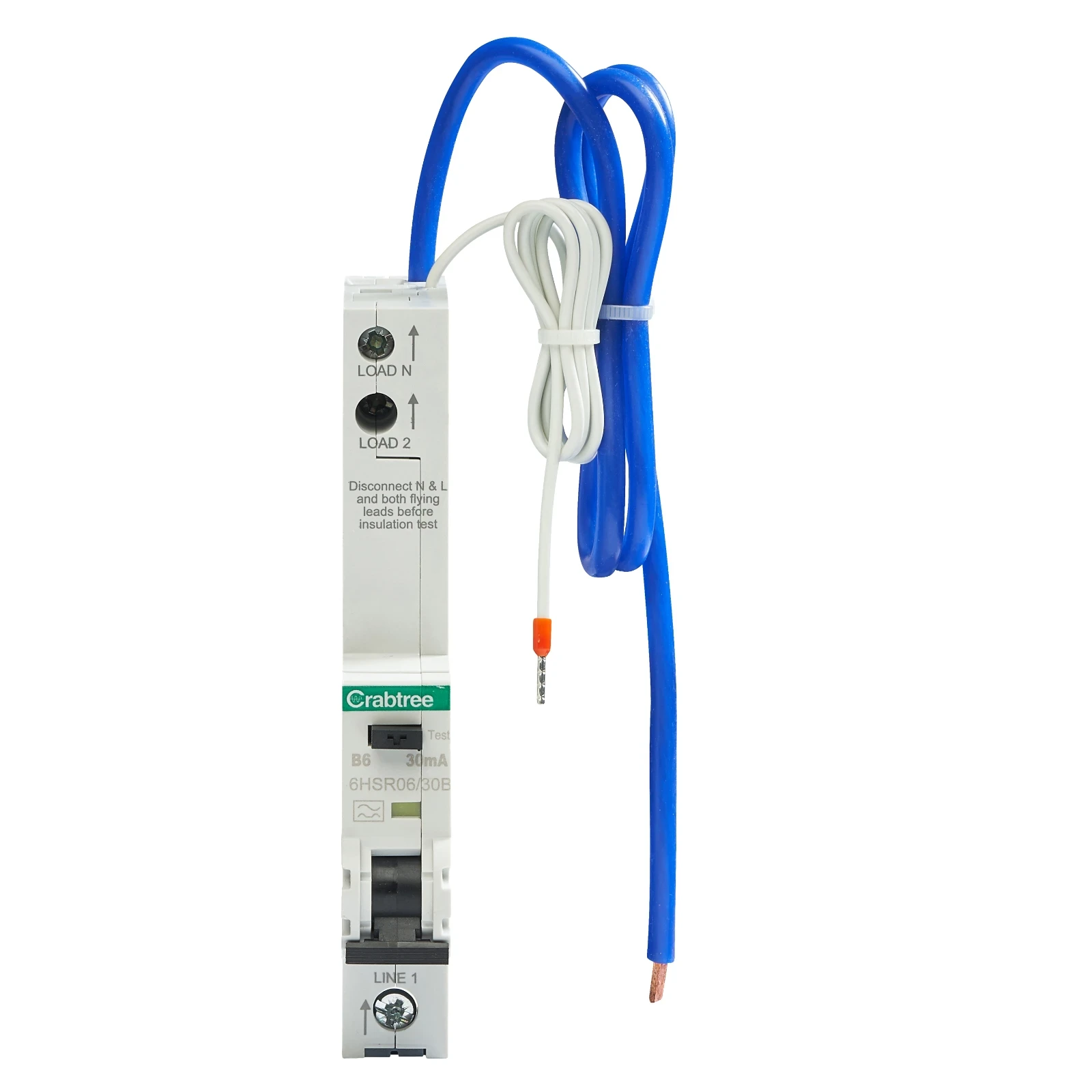

B6 30mA 10kA 1P+N Type A RCBO (1 Module Width)
B6 30mA 10kA 1P+N Type A RCBO (1 Module Width)
B6 30mA 10kA 1P+N Type A RCBO (1 Module Width) - Image 2
B6 30mA 10kA 1P+N Type A RCBO (1 Module Width) - Image 3

B6 30mA 10kA 1P+N Type A RCBO (1 Module Width)

£63.79 Incl. VAT

This RCCB is suitable for use within Loadstar distribution boards. · · · Single Module 10kA RCBO · · 6A B curve (MCB), 30mA Type A (RCD) · · Neutral & Earth Tail lengths = 600mm · · Suitable for use in Crabtree Loadstar Distribution Boards · · B release characteristic

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6HSR06/30B Categories: , , Brand: Part Number: 2500329813

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Rated short-circuit breaking capacity according to EN 61009 10 kA Tripping characteristic (type/curve) B Rated fault current 0.03 A Rated insulation voltage Ui 400 V Number of protected poles 1 Over voltage category 3 Width in number of modular spacings 1 Current limiting class 3 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 1 Rated current 6 A Rated voltage 230 V Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 45 °C Flush-mounted installation No Anti-nuisance tripping version No With interlocking device No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
