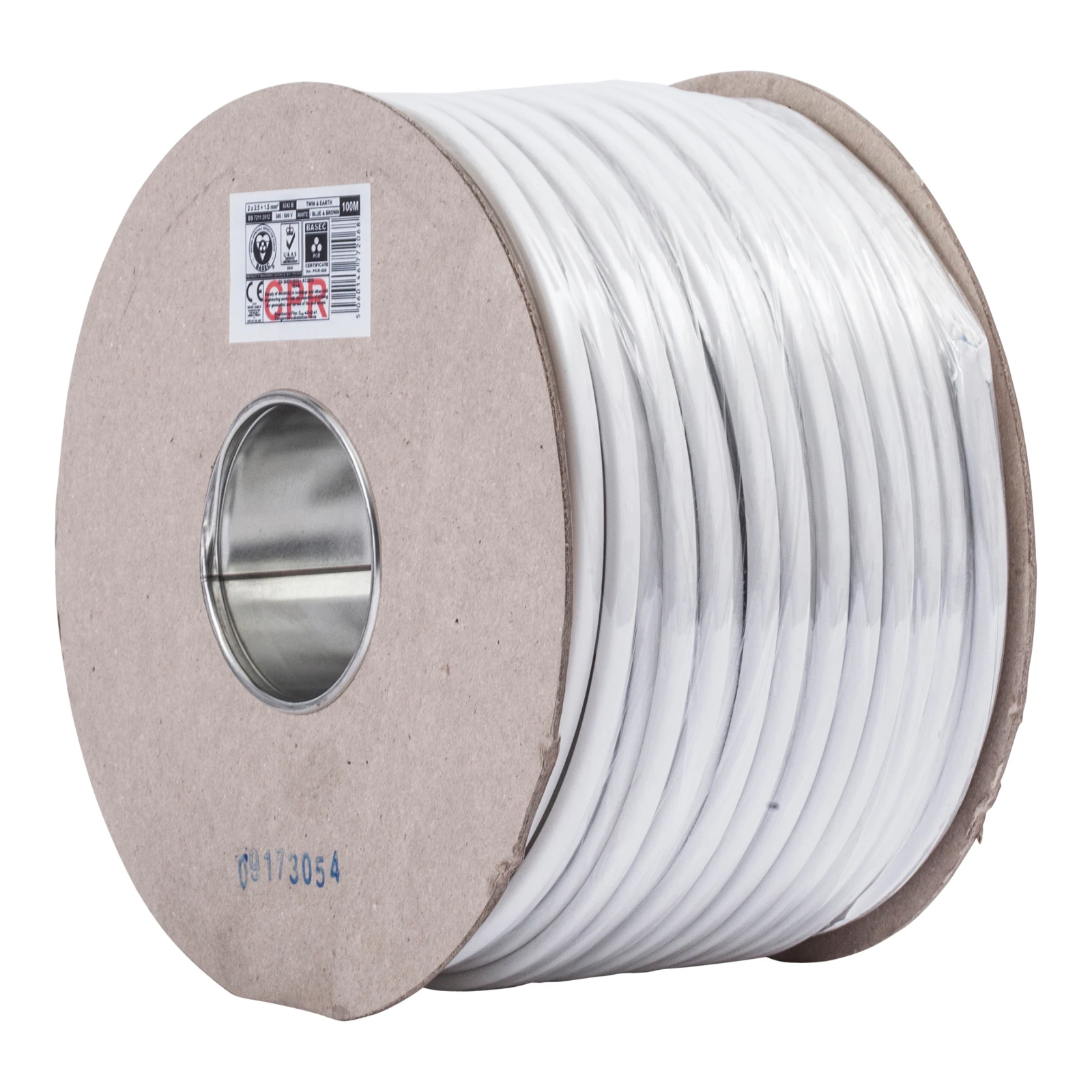

Basec Approved 2 Core 2.5mm ² LSOH Cable 100m White
Basec Approved 2 Core 2.5mm ² LSOH Cable 100m White
Basec Approved 2 Core 2.5mm ² LSOH Cable 100m White - Image 2
Basec Approved 2 Core 2.5mm ² LSOH Cable 100m White - Image 3
Basec Approved 2 Core 2.5mm ² LSOH Cable 100m White - Image 4

Basec Approved 2 Core 2.5mm ² LSOH Cable 100m White

£117.30 Incl. VAT

A premium fire safety flat wiring cable with bare CPC. It is suitable for domestic and light industrial wiring, where smoke and acid gas emission would pose a major hazard in the event of fire. · · · Meets BS 7211 standards · · 300/500V rated · · Can be clipped · · Suitable for laying into trunking or conduit · · May be embedded in plaster or laid in walls · · XLPE insulated · · Laid parallel with CPC · · Zero halogen low smoke (OHLS®) sheathed

1024700 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6242BH-2.5-WHI100 CABL-RX Categories: , , Brand: Part Number: 2500142914

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 1 = solid Protective barrier None Core colour Several Conductor material Copper Sheath colour White Core identification Colour Conductor Diameter 2.5 mm Max. conductor temperature 90 °C Nominal voltage U0 300 V Nominal voltage U 500 V Nominal cross sectional area of conductor 2.5 mm² Core insulation material Polyolefin Sheath material Polyolefin Conductor surface Bare Number of cores 2 Permitted cable outer temperature during assembling/handling 0 – 80 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Screen No Drain wire Yes · Technical Data Sheet – Click to Download
