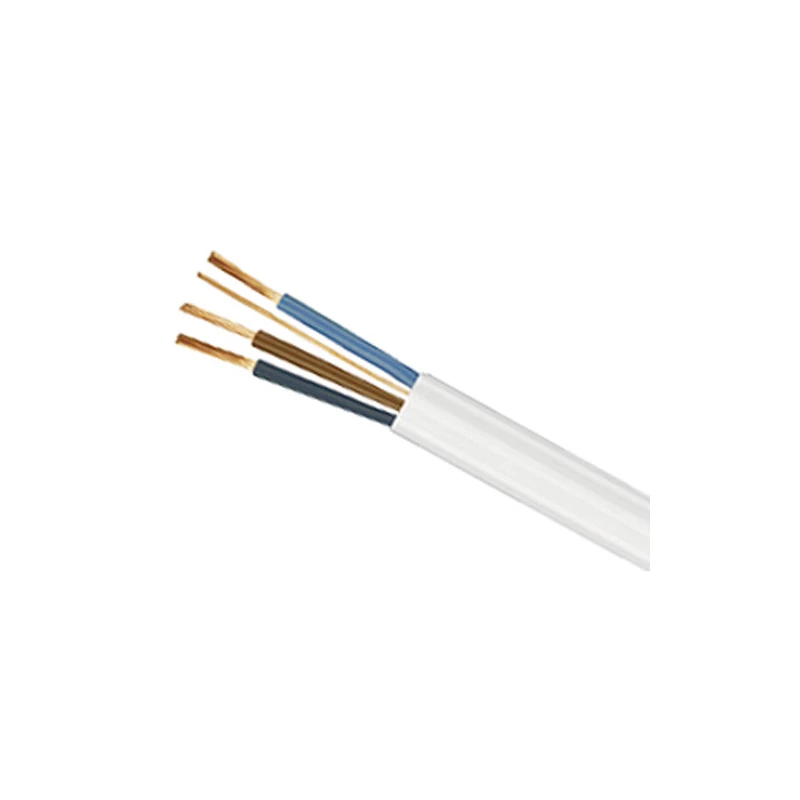

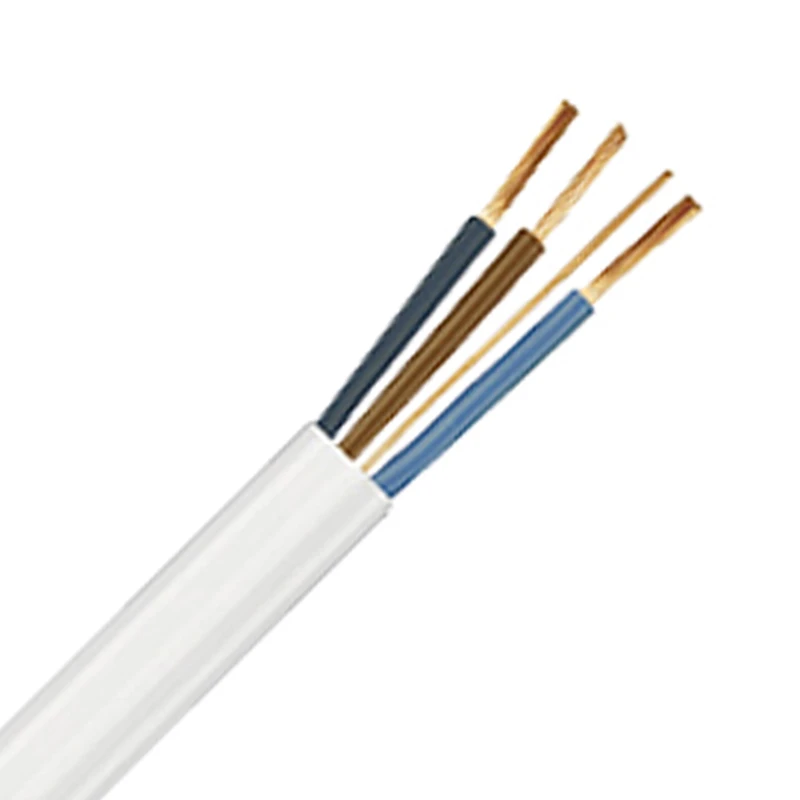

Commodity Cables 6243BH 1.5mm² White Basec Cable 3-Core & Earth
£124.08 Incl. VAT
This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6243BH-1.5 is a Flat Cable made up of a circular copper wire comeplete with XPLE insulation and low smoke and zero halogen (LSZH) sheathing. These cables are of similar construction as 6243YH but produce lower levels of smoke and fumes under fire conditio · · · BS7211 White LSOH sheathed cable with CPC · · Used in light industrial & domestic wiring · · Plain annealed copper conductors · · No. of cores: 3 · · Product Packaging: Reel · · Cut to Various Lengths: No · · Low Smoke Zero Halogen · · Standard: BS7211 · · Standard: BS7211
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Core colour Several Protective barrier None Conductor category Class 1 = solid Conductor material Copper Core insulation material Polyolefin Sheath colour White Conductor surface Bare Core identification Colour Sheath material Polyolefin Nominal voltage U 500 V Conductor Diameter 1.5 mm Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U0 300 V Number of cores 3 Max. conductor temperature 90 °C Permitted cable outer temperature during assembling/handling 0 – 80 °C Drain wire Yes Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No · Technical Data Sheet – Click to Download
