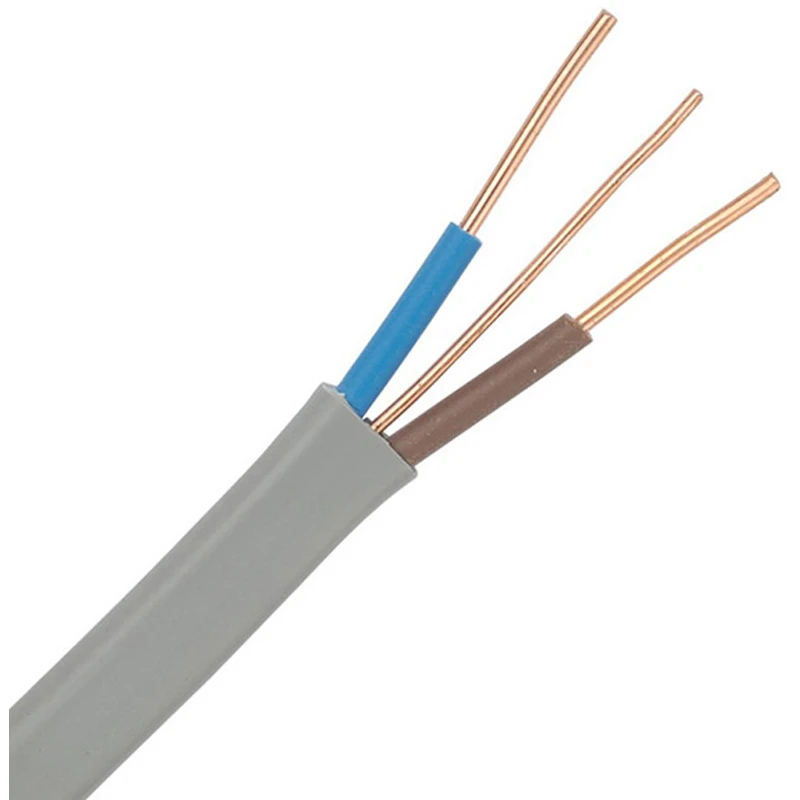

Basec Approved 6242Y 2 Core 10mm² Copper Twin and Earth Cable 100m Grey
Basec Approved 6242Y 2 Core 10mm² Copper Twin and Earth Cable 100m Grey
Basec Approved 6242Y 2 Core 10mm² Copper Twin and Earth Cable 100m Grey - Image 2
Basec Approved 6242Y 2 Core 10mm² Copper Twin and Earth Cable 100m Grey - Image 3
Basec Approved 6242Y 2 Core 10mm² Copper Twin and Earth Cable 100m Grey - Image 4

Basec Approved 6242Y 2 Core 10mm² Copper Twin and Earth Cable 100m Grey

£534.24 Incl. VAT

A premium flat copper wiring cable with bare CPC. This cable can be installed in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · · BASEC Approved · · Conductor Area: 10mm² · · Suitable for commercial and domestic applications · · Operating temperature: -15°C to 70°C · · Fixed bending radius: r=4D · · XLPE insulated · · Laid parallel with CPC · · Zero halogen low smoke (OHLS®) sheathed · · Cut Sizes Available – Please Contact Your Local Branch

Minimum order: 100 units.

10600 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6242YH-10.0 Categories: , , , Brand: Part Number: 2500143087

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour Grey Core colour Several Protective barrier None Conductor material Copper Conductor category Class 2 = stranded Sheath material Polyvinyl chloride (PVC) Core insulation material Polyvinyl chloride (PVC) Core identification Colour Conductor surface Bare Nominal voltage U 500 V Drain wire Yes Permitted cable outer temperature during assembling/handling 0 - 60 °C Max. conductor temperature 70 °C Nominal voltage U0 300 V Number of cores 2 Nominal cross sectional area of conductor 10 mm² Conductor Diameter 10 mm Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No · Technical Data Sheet – Click to Download
