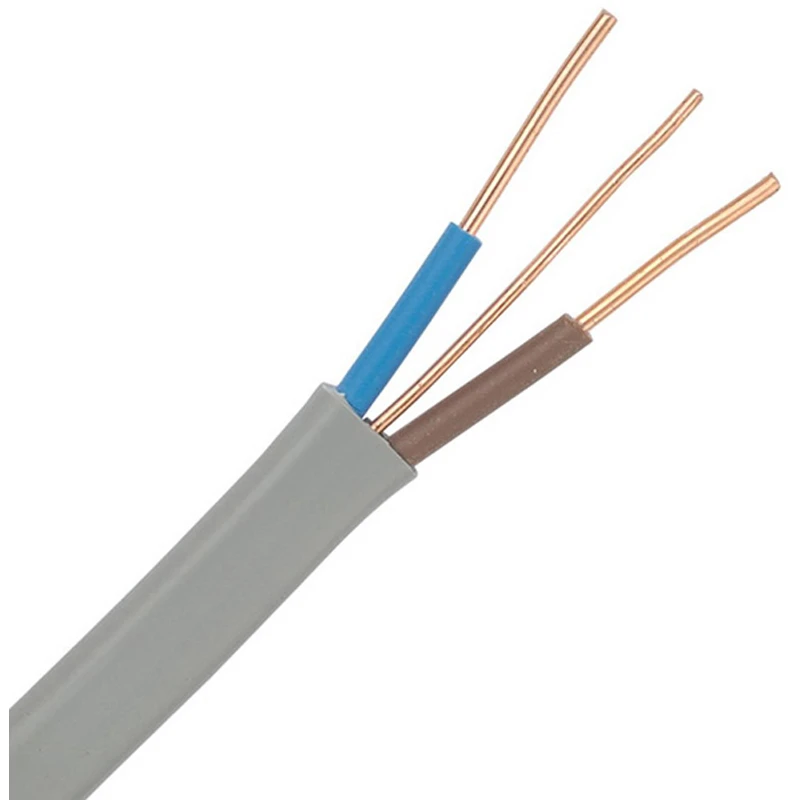

Commodity Cables 6242YH 16.0mm² Grey PVC Basec Cable 2-Core Twin & Earth
£432.30 Incl. VAT
This product is packaged as 50m Reel. Hence when ordering, a mutiple of 50 needs to be entered. 6242YH16.0GRY50 is a Flat Cable made of copper conductor and PVC insulator with bare CPC. It offers the fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. 300/500V Operating voltage · · · BS6004 Grey PVC sheathed cable with CPC · · Used in light industrial & domestic wiring · · Plain annealed copper conductors · · No. of cores: 2 · · Product Packaging: Reel · · Material: PVC · · Standard: BS6004
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Core colour Several Sheath colour Grey Conductor category Class 2 = stranded Conductor material Copper Sheath material Polyvinyl chloride (PVC) Core insulation material Polyvinyl chloride (PVC) Conductor surface Bare Nominal voltage U0 300 V Core identification Colour Conductor Diameter 16 mm Nominal voltage U 500 V Nominal cross sectional area of conductor 16 mm² Number of cores 2 Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 – 60 °C Drain wire Yes Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No · Technical Data Sheet – Click to Download
