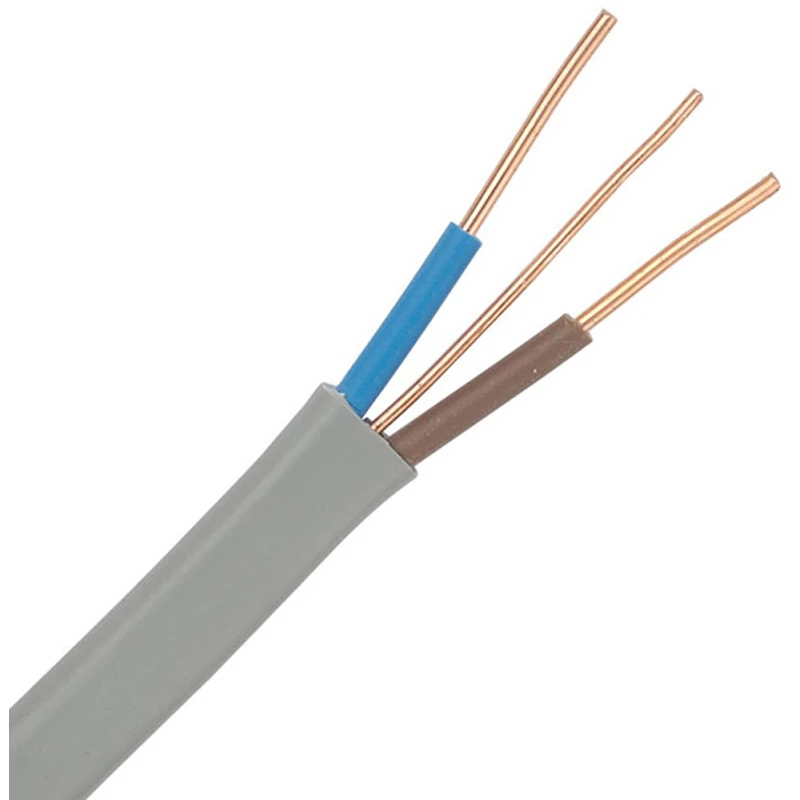

Basec Approved 6242Y 2 Core 2.5mm ² Copper Twin and Earth Cable 100m Grey
Basec Approved 6242Y 2 Core 2.5mm ² Copper Twin and Earth Cable 100m Grey
Basec Approved 6242Y 2 Core 2.5mm ² Copper Twin and Earth Cable 100m Grey - Image 2

Basec Approved 6242Y 2 Core 2.5mm ² Copper Twin and Earth Cable 100m Grey

£112.32 Incl. VAT

A premium flat copper wiring cable with bare CPC. This cable can be installed in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · · BASEC Approved · · Conductor Area: 2.5mm² · · Suitable for commercial and domestic applications · · Operating temperature: -15°C to 70°C · · Fixed bending radius: r=4D

Minimum order: 100 units.

1340400 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6242YH-2.5 Categories: , , , Brand: Part Number: 2500143054

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Sheath colour Grey Conductor category Class 1 = solid Core colour Several Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Nominal voltage U0 300 V Nominal cross sectional area of conductor 2.5 mm² Conductor Diameter 2.5 mm Nominal voltage U 500 V Number of cores 2 Conductor surface Bare Core identification Colour Sheath material Polyvinyl chloride (PVC) Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 - 60 °C Low temperature resistant according to EN 60811-504+505+506 No Screen No Oil resistant according to IEC 60811-404 No Drain wire Yes · Technical Data Sheet – Click to Download
