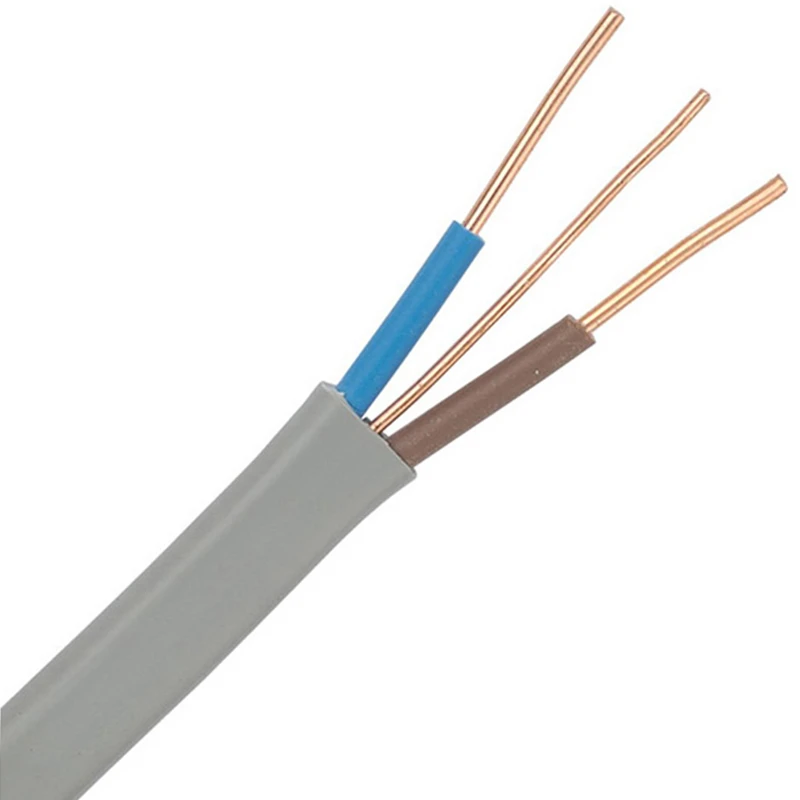

Commodity Cables 6242YH 1.5mm² Grey PVC Basec Cable Twin & Earth
£77.28 Incl. VAT
This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. A premium flat copper wiring cable with bare CPC. Meets BS 7211 standards · · · BS6004 Grey PVC sheathed cable with CPC · · Used in light industrial & domestic wiring · · Plain annealed copper conductors · · No. of cores: 2 · · Product Packaging: Reel · · XLPE insulated · · Laid parallel with CPC · · Zero halogen low smoke (OHLS®) sheathed · · Material: PVC · · Standard: BS6004
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Sheath colour Grey Core colour Several Conductor material Copper Conductor category Class 1 = solid Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Conductor surface Bare Nominal cross sectional area of conductor 1.5 mm² Core identification Colour Number of cores 2 Nominal voltage U 500 V Conductor Diameter 1.5 mm Nominal voltage U0 300 V Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Screen No Drain wire Yes Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
