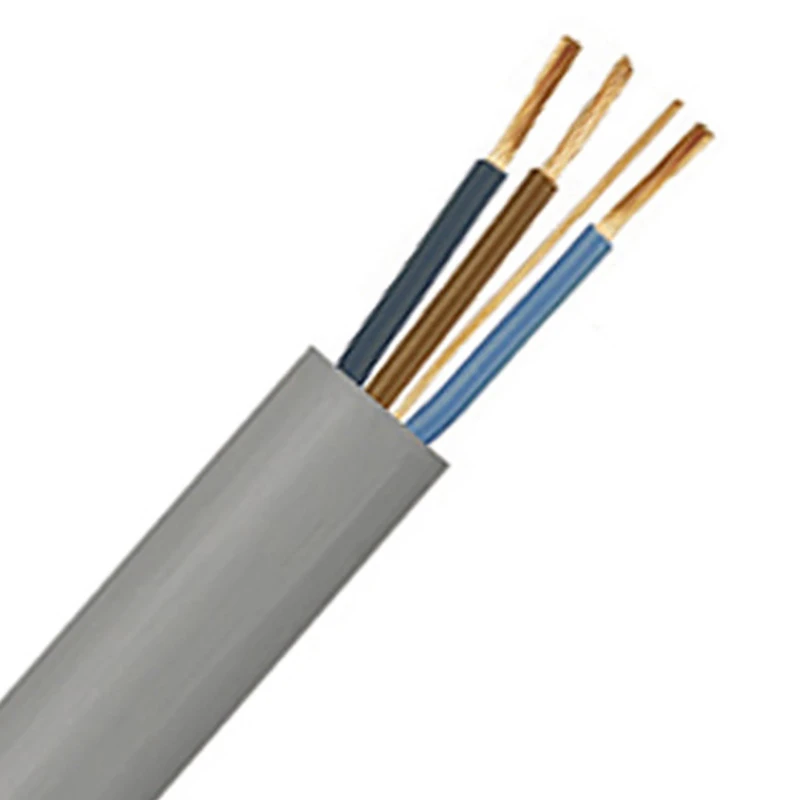

Basec Approved 6243Y 3 Core 1.5mm² Copper Cable With Earth 50m Grey
Basec Approved 6243Y 3 Core 1.5mm² Copper Cable With Earth 50m Grey
Basec Approved 6243Y 3 Core 1.5mm² Copper Cable With Earth 50m Grey - Image 2
Basec Approved 6243Y 3 Core 1.5mm² Copper Cable With Earth 50m Grey - Image 3
Basec Approved 6243Y 3 Core 1.5mm² Copper Cable With Earth 50m Grey - Image 4

Basec Approved 6243Y 3 Core 1.5mm² Copper Cable With Earth 50m Grey

£109.44 Incl. VAT

A premium flat copper wiring cable with bare CPC. This cable can be installed in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · · BASEC Approved · · Conductor Area: 1.5mm² · · Suitable for commercial and domestic applications · · Operating temperature: -15°C to 70°C · · Fixed bending radius: r=4D

Minimum order: 100 units.

169000 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6243YH-1.5 Categories: , , , Brand: Part Number: 2500143210

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour Grey Protective barrier None Conductor category Class 1 = solid Core colour Several Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Conductor Diameter 1.5 mm Number of cores 3 Nominal voltage U 500 V Nominal voltage U0 300 V Nominal cross sectional area of conductor 1.5 mm² Conductor surface Bare Core identification Colour Sheath material Polyvinyl chloride (PVC) Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 - 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No Drain wire Yes · Technical Data Sheet – Click to Download
