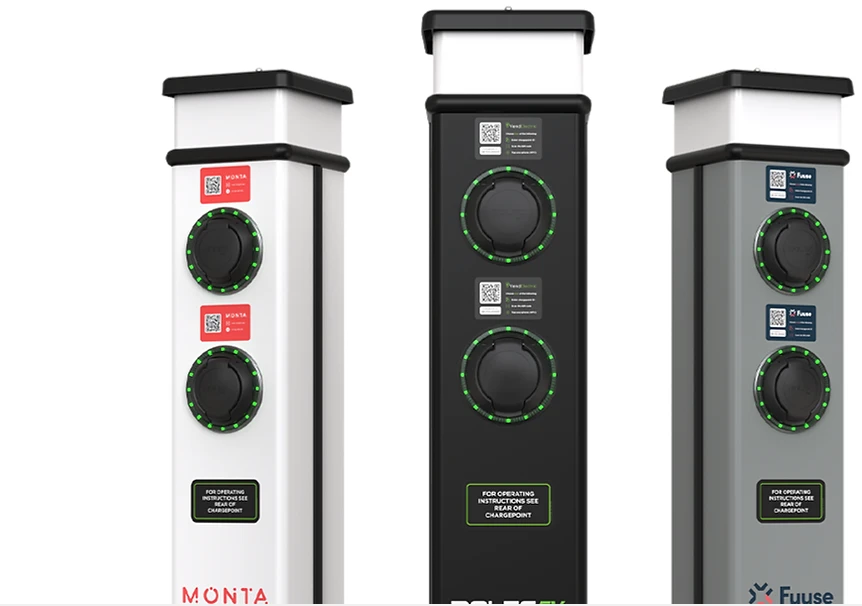

Basiccharge EV Charging Pedestal 3 Phase Grey 1 x Type 2 (IEC 62196) Charging Socket Up To 22kW (32A) 1 x 32A 400V AC
£1,789.28 Incl. VAT
The BASICCHARGE is a simplistic and affordable EV charging pedestal. This versatile charger’s integrated LED amenity lighting also provides greater visibility of the charging bays and surrounding areas.This future-proof OCPP compliant pedestal can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back office management system. · · · Plug & charge, mobile app or RFID controlled charging · · Over-the-air firmware / software updates · · Built-in AC overload & fault current protection (RCBO) · · LED amenity lighting head (Photocell controlled)
Out of stock
Description
Technical Specifications Technical Specifications Charging device for electric vehicles Voltage type of supply voltage AC Degree of protection (IP rating) IP54 Impact resistance (IK rating) IK10 Installation side connection model 3-phase Frequency 50/60 Hz Width 205 mm Open Charge Point Protocol (OCPP) version 1.6 Depth 205 mm Height 1130 mm Radio standard 4G Yes Networkable via Wi-Fi Yes Networkable via LAN Yes Max. output current DC 32 A Number of socket outlets Type 2 1 Max. power per charging point 22 kW Number of charging units 1 Floor mounting Yes · Technical Data Sheet – Click to Download
