Basiccharge EV Single Phase White 1X Type 2 (Iec 62196) Charging Socket Up To 7.4Kw (32A) 1X 32A 230V Ac
Basiccharge EV Single Phase White 1X Type 2 (Iec 62196) Charging Socket Up To 7.4Kw (32A) 1X 32A 230V Ac
Basiccharge EV Single Phase White 1X Type 2 (Iec 62196) Charging Socket Up To 7.4Kw (32A) 1X 32A 230V Ac - Image 2

Basiccharge EV Single Phase White 1X Type 2 (Iec 62196) Charging Socket Up To 7.4Kw (32A) 1X 32A 230V Ac

£1,586.66 Incl. VAT

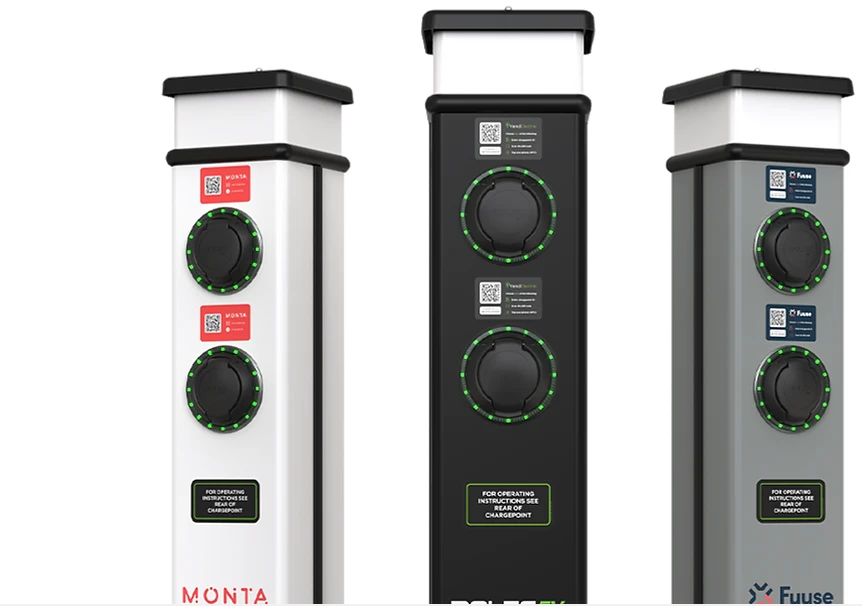

The BASICCHARGE is a simplistic and affordable EV charging pedestal. This versatile charger’s integrated LED amenity lighting also provides greater visibility of the charging bays and surrounding areas.This future-proof OCPP compliant pedestal can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back office management system. · · · Plug & charge, mobile app or RFID controlled charging · · Over-the-air firmware / software updates · · Built-in AC overload & fault current protection (RCBO) · · LED amenity lighting head (Photocell controlled)

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ROLEC0211W Categories: , Brand:

Description

Technical Specifications  Technical Specifications Charging device for electric vehicles Installation side connection model Single phase Voltage type of supply voltage AC Open Charge Point Protocol (OCPP) version 1.6 Degree of protection (IP rating) IP54 Impact resistance (IK rating) IK10 Frequency 50/60 Hz Max. power per charging point 7.4 kW Suitable for wall mounting No Depth 203 mm Max. output current DC 32 A Number of socket outlets Type 2 1 Number of charging units 1 Width 205 mm Height 1130 mm Networkable via Wi-Fi Yes Radio standard 4G Yes Floor mounting Yes Networkable via LAN Yes · Technical Data Sheet – Click to Download
