Basiccharge EV Three Phase White 2X Type 2 (Iec 62196) Charging Sockets Up To 22Kw (32A) Per Socket 1X 63A Three Phase 400V Ac
Basiccharge EV Three Phase White 2X Type 2 (Iec 62196) Charging Sockets Up To 22Kw (32A) Per Socket 1X 63A Three Phase 400V Ac
Basiccharge EV Three Phase White 2X Type 2 (Iec 62196) Charging Sockets Up To 22Kw (32A) Per Socket 1X 63A Three Phase 400V Ac - Image 2

Basiccharge EV Three Phase White 2X Type 2 (Iec 62196) Charging Sockets Up To 22Kw (32A) Per Socket 1X 63A Three Phase 400V Ac

£2,585.29 Incl. VAT

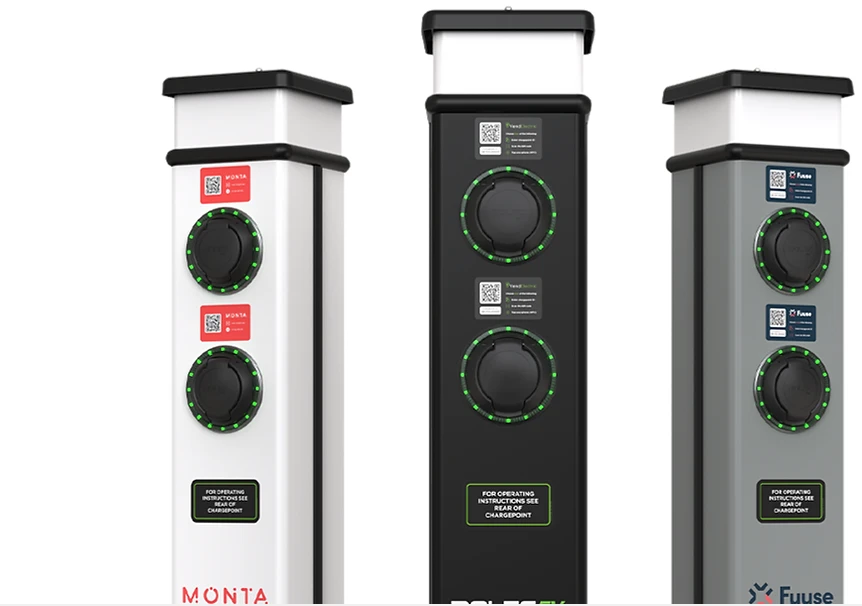

The BASICCHARGE is a simplistic and affordable EV charging pedestal. This versatile charger’s integrated LED amenity lighting also provides greater visibility of the charging bays and surrounding areas.This future-proof OCPP compliant pedestal can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back office management system. · · · Plug & charge, mobile app or RFID controlled charging · · Over-the-air firmware / software updates · · Built-in AC overload & fault current protection (RCBO) · · LED amenity lighting head (Photocell controlled)

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ROLEC0223W Categories: , Brand:

Description

Technical Specifications  Technical Specifications Charging device for electric vehicles Impact resistance (IK rating) IK10 Voltage type of supply voltage AC Frequency 50/60 Hz Installation side connection model 3-phase Open Charge Point Protocol (OCPP) version 1.6 Width 204 mm Height 1130 mm Depth 205 mm Max. power per charging point 22 kW Number of socket outlets Type 2 2 Max. output current DC 32 A Suitable for wall mounting No Floor mounting Yes Networkable via LAN Yes Networkable via Wi-Fi Yes Radio standard 4G Yes · Technical Data Sheet – Click to Download
