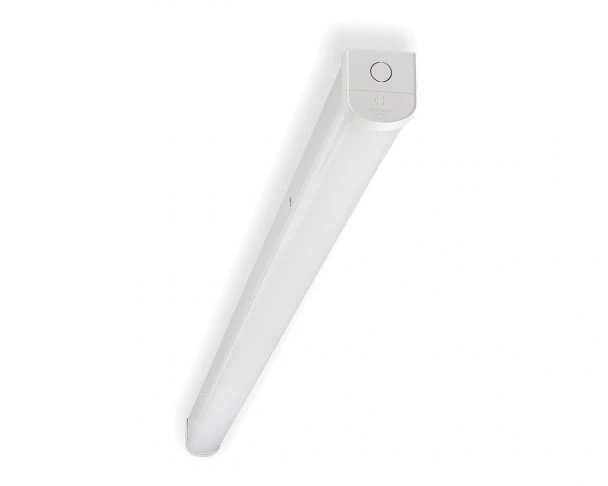

Batten Twin 4000K Opal Diffuser Standard 70W 9100Lm 1828X70X76mm Matt
Batten Twin 4000K Opal Diffuser Standard 70W 9100Lm 1828X70X76mm Matt
Batten Twin 4000K Opal Diffuser Standard 70W 9100Lm 1828X70X76mm Matt - Image 2
Batten Twin 4000K Opal Diffuser Standard 70W 9100Lm 1828X70X76mm Matt - Image 3

Batten Twin 4000K Opal Diffuser Standard 70W 9100Lm 1828X70X76mm Matt

£93.70 Incl. VAT

Bringing further versatility to the commercial. offering at Collingwood, our range of IP20 Battens. will provide an effective lighting solution to various commercial spaces. The streamlined linear fixture,. available in three lengths, allows you to create a. uniform installation of perfectly distributed light. Designed with the installer in mind, this range. is quick and easy to fit, keeping use of tools to a. minimum. It also provides various wiring options. particularly useful in retrofit applications. · · · Multiple fixing points and several wiring options · · Highly efficient up to 124lm/W · · Microwave built-in, On-Off and dusk-dawn functions, providing energy savings · · Ideal for sheds, garages and warehouses · · Built in self-test emergency available. Lumen output in EM mode = 250lm · · Ideal for sheds, garages and warehouses

14 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BT6TS40 Categories: , , Brand: Part Number: 2501309359

Description

Technical Specifications  Technical Specifications Batten luminaire Width 76 mm Degree of protection (IP rating) IP20 Diameter – mm Conductor cross section – mm² Length 1828 mm Number of poles – Nominal voltage 220 – 240 V Lamp power – W Rated luminous flux acc. IEC 62722-2-1 8680 lm Power factor 95 Height/depth 70 mm Rated life time L70/B50 at 25 °C 54000 h Number of lamps 1 Maximum system power 70 W Colour temperature 4000 – 4000 K Suitable for emergency lighting No Light source included Yes With movement sensor No With switch No Control gear included Yes Luminaire may be covered with thermally insulating material No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Electrical connection with connector system No Dimming 0-10 V No IFTTT support available No Dimming leading edge No Dimming LineSwitch No Dimming mains voltage modulation No Emergency power supply integrated No Dimming trailing edge No Dimming manufacturer’s proprietary system No Dimming RF No Dimming Zigbee No Dimming 1-10 V No Dimming potentiometer (integrated) No Dimming DALI No Dimming DMX No Dimming programmable No Dimming touch and dim No Dimming DSI No Dimming with push-button No Compatible with Apple HomeKit No Compatible with Amazon Alexa No Compatible with Google Assistant No Replaceable control gear No No dimming function Yes Dimming sine wave reduction No · Technical Data Sheet – Click to Download
