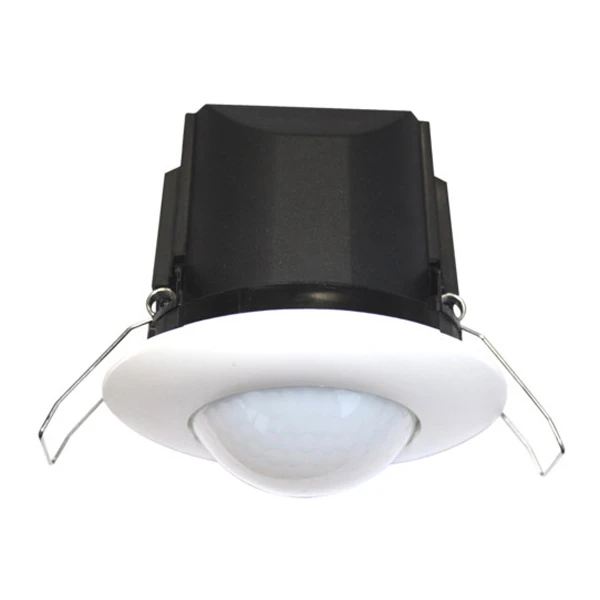

BEG Detector Occupancy Pd3 Ceiling White 1 Channel
BEG Detector Occupancy Pd3 Ceiling White 1 Channel
BEG Detector Occupancy Pd3 Ceiling White 1 Channel - Image 2

BEG Detector Occupancy Pd3 Ceiling White 1 Channel

£83.21 Incl. VAT

Luxomat Ceiling Mount PIR Detector is remote controllable ceiling-mounted motion detector with circular detection area. One switching channel for operating the light. Special optical system for detection of even the smallest movements. Uninterrupted parallel circuit detection of several detectors. Manual switching via push-button possible. Additional functions can be set up using the optional remote control. Factory settings 10 min and 500 lux. Suitable for monitoring of smaller areas like stairwells, private garages, galleries, wash rooms. · · · Remote controlled ceiling motion detector · · One switching channel for operating the light · · Uninterrupted parallel circuit detection of several detectors · · Manual switching via push-button · · Factory settings 10 min and 500 lux

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 92196 Categories: , , Brand: Product Code: 2500161315

Description

Technical Specifications  Technical Specifications Motion detector Material Plastic Colour White Mounting method Flush mounted Degree of protection (IP rating) IP23 Model Movement sensor Surface protection Untreated Surface finish Not applicable Voltage type AC Optimum mounting height 2.5 m Max. duty cycle 30 min Number of switching zones 1 Control current 1.8 mA Diameter reach on floor 10 m Min. switch-on time 30 s RAL-number (similar) 9010 Max. reach frontally 3 m Max. starting current 10 A Max. reach sideways 5 m Switch-off delay 1800 s Max. switching power 2300 W Frequency 50 – 60 Hz Detection angle horizontal 0 – 360 ° Response value luminosity 10 – 2000 lx Creep-under protection Yes Suitable for wireless transmission No Bridging switch Yes With remote control Yes Transparent No Staircase monitoring Yes Response value sensitivity adjustable Yes Constant light control No HVAC-control No Animal zone No Auxiliary input No Remote operation Yes Response value luminosity adjustable Yes Teach-function for response value luminosity Yes Networkable No Forced switch off Yes With signal unit No Dim function with dimmer basic element No Suitable for C-load Yes Halogen free Yes Alarm function Yes
