Bell Transformer
£43.72 Incl. VAT

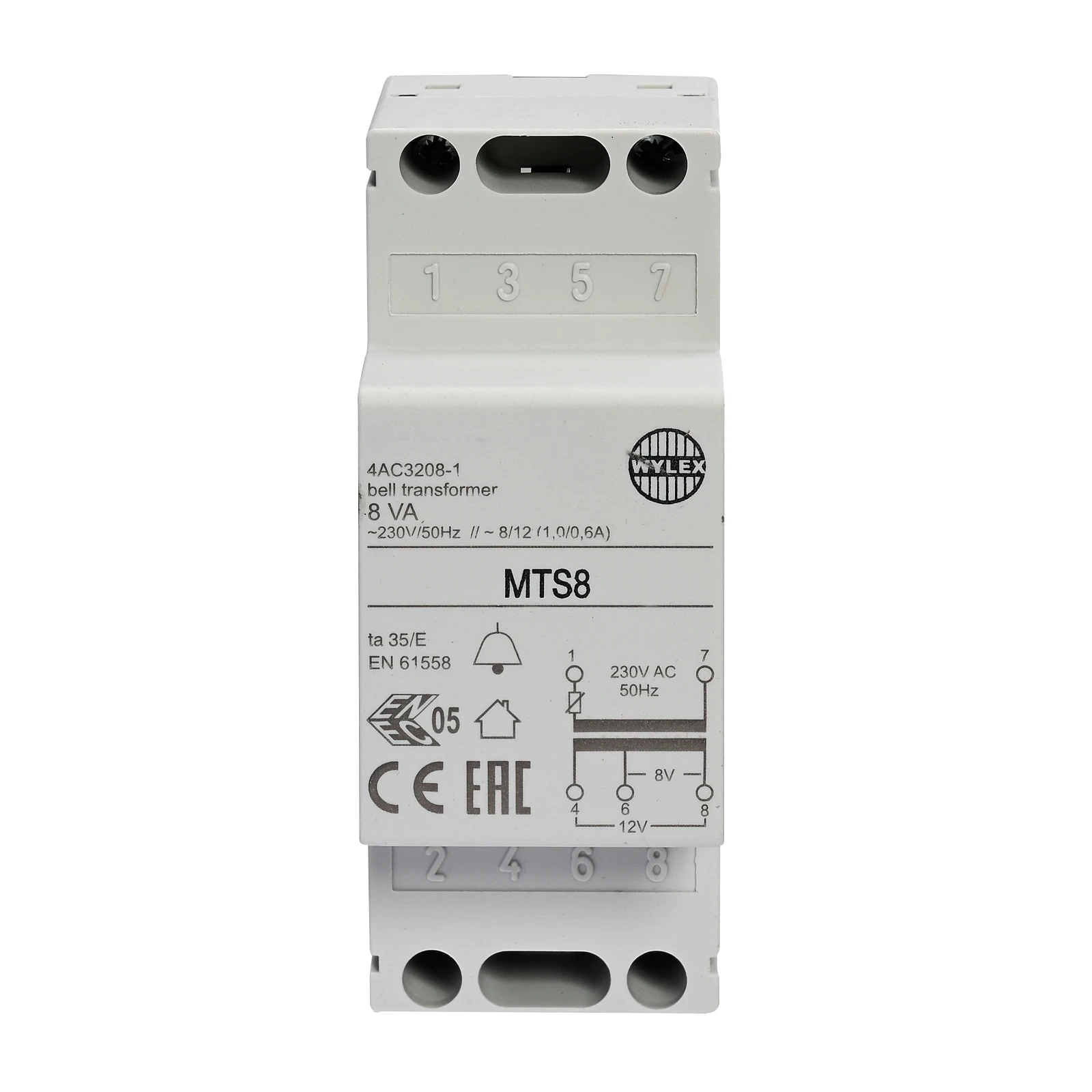

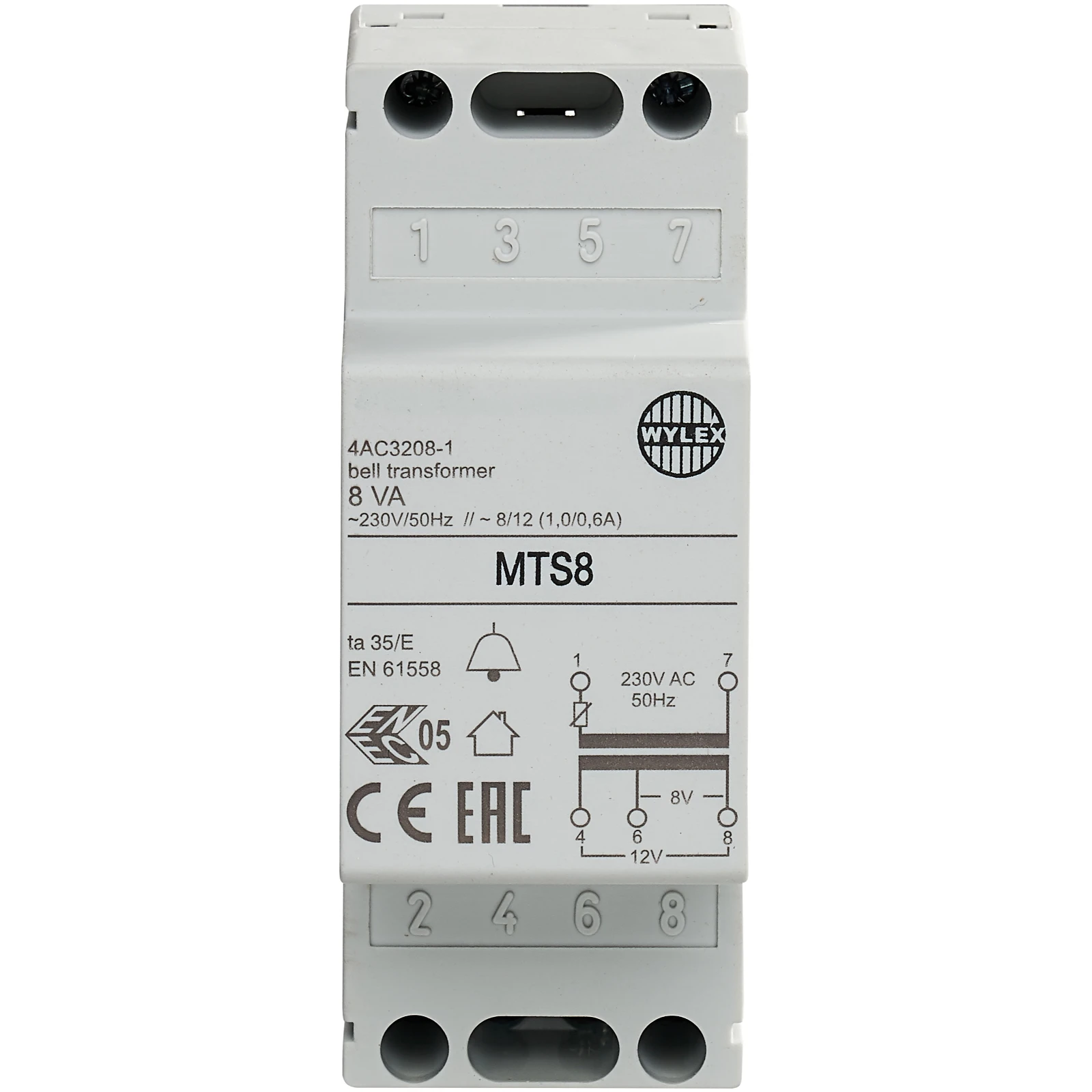

Wylex Bell Transformer with power rating of 8VA and voltage of 12V. · · · Bell transformer, DIN rail mounting · · 8V or 12V Secondary outputs · · Protected against short circuit or moderate overload by PTC resistor · · 2 modules wide
2 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Bell transformer Height 64 mm Width 36 mm Width in number of modular spacings 2 Secondary voltage 2 12 V Primary voltage 230 V Max. output power 8 W Secondary voltage 1 8 V Length 90 mm Secondary amperage 2 0.6 A Secondary amperage 1 1 A Max. power loss 5.7 W Temperature protection Yes Short-circuit protected Yes With on/off switch No Modular version Yes Flush-mounted installation No · Technical Data Sheet – Click to Download
