BF Series 1.5-2.5mm² PVC Insulated Blade Terminal 17.2 X 2.5mm Blue
BF Series 1.5-2.5mm² PVC Insulated Blade Terminal 17.2 X 2.5mm Blue
BF Series 1.5-2.5mm² PVC Insulated Blade Terminal 17.2 X 2.5mm Blue - Image 2
BF Series 1.5-2.5mm² PVC Insulated Blade Terminal 17.2 X 2.5mm Blue - Image 3
BF Series 1.5-2.5mm² PVC Insulated Blade Terminal 17.2 X 2.5mm Blue - Image 4

BF Series 1.5-2.5mm² PVC Insulated Blade Terminal 17.2 X 2.5mm Blue

£11.04 Incl. VAT

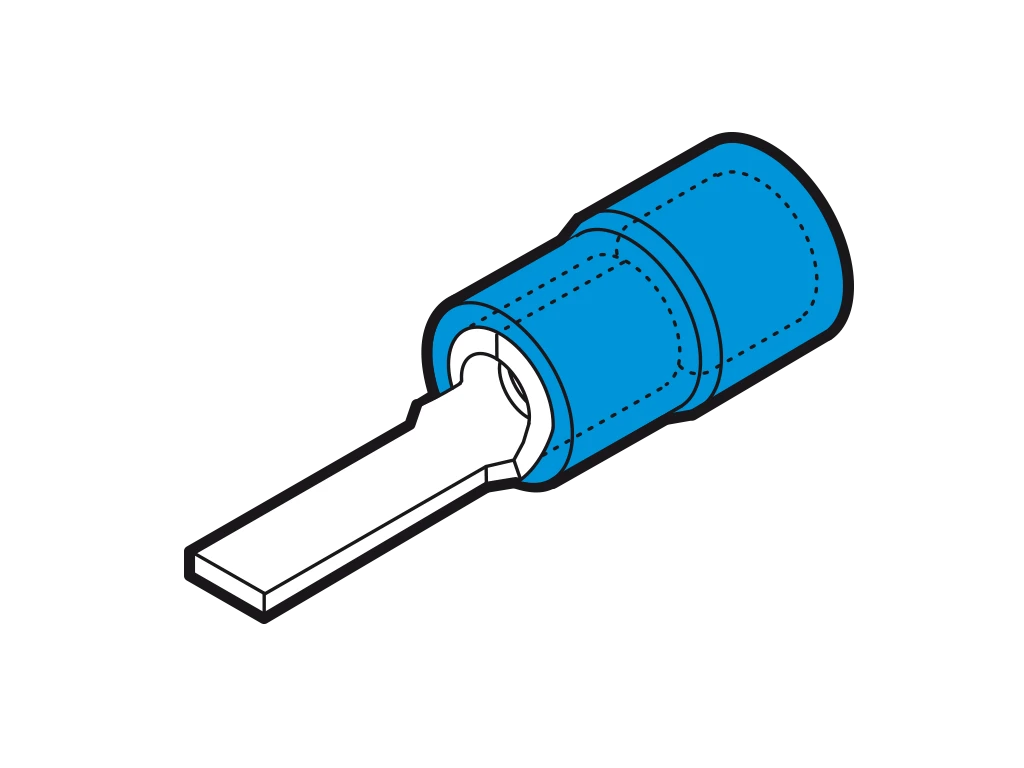

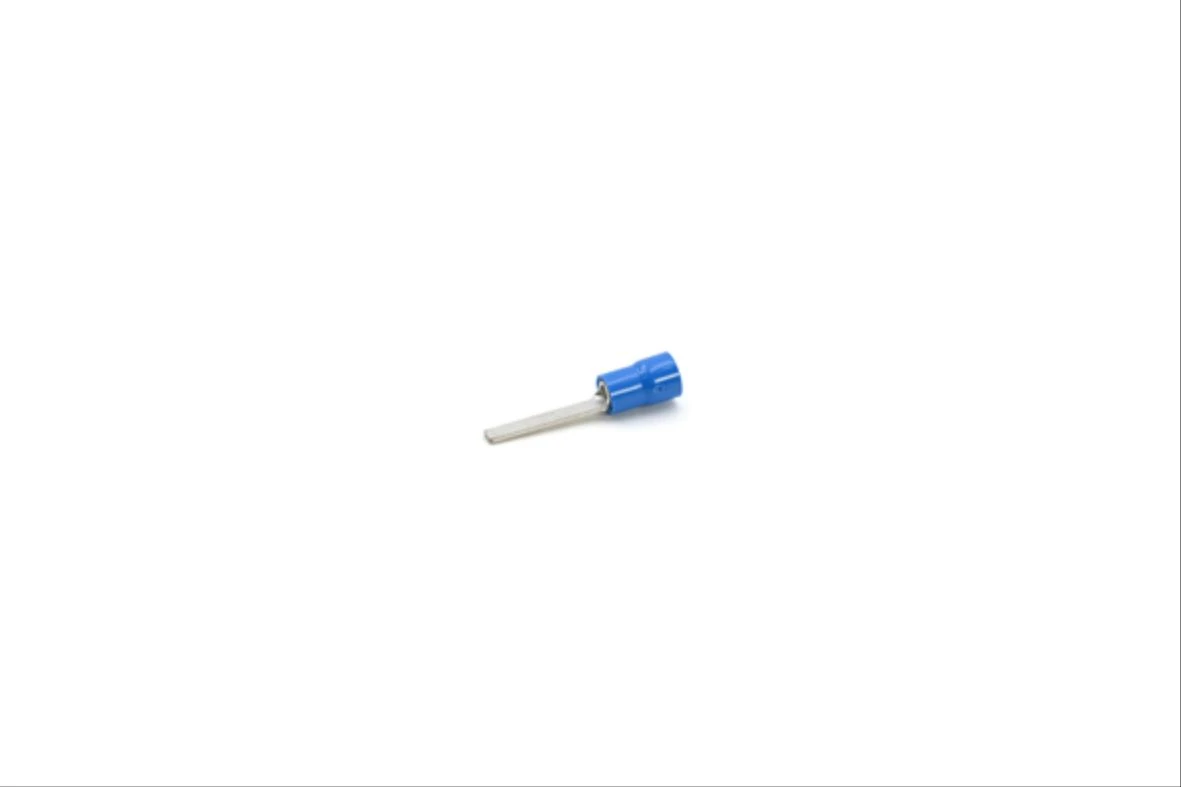

1.5mm²-2.5mm² PVC insulated blade terminal 17.2mm x 2.5mm blade blue · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor

4300 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BF-PP16/25 Categories: , , Brand: Part Number: 2500221924

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Colour insulation Blue Flange shape Pin shape Insulation None Reel packaging No For pull protected connections No AWG-range 16 – 14 Nominal cross section 1.5 – 2.5 mm² Bolt dimension (metric) – Max. current (Imax) – A Surface protection Tinned Material Copper Useful for stranded conductors Yes According to DIN No Suitable for solid cores No Suitable for high temperatures (to 650 °C) No Suitable for fine strand conductors No Suitable for insulated varnish No Suitable for round conductors Yes Suitable for flat conductors No · Technical Data Sheet – Click to Download
