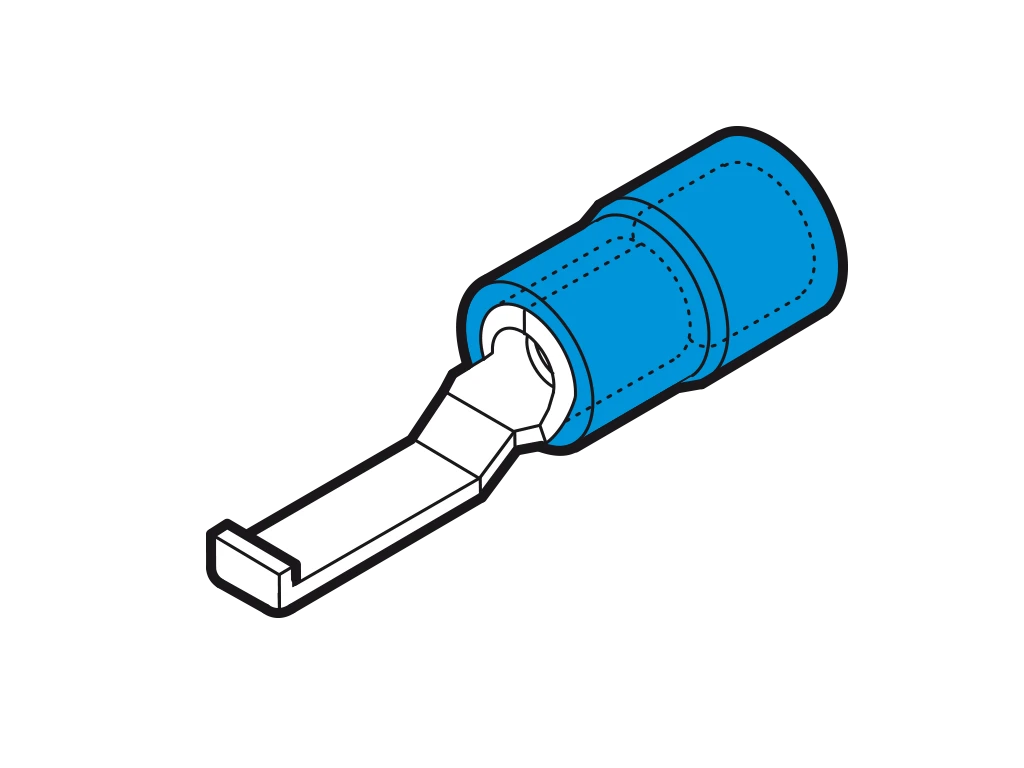

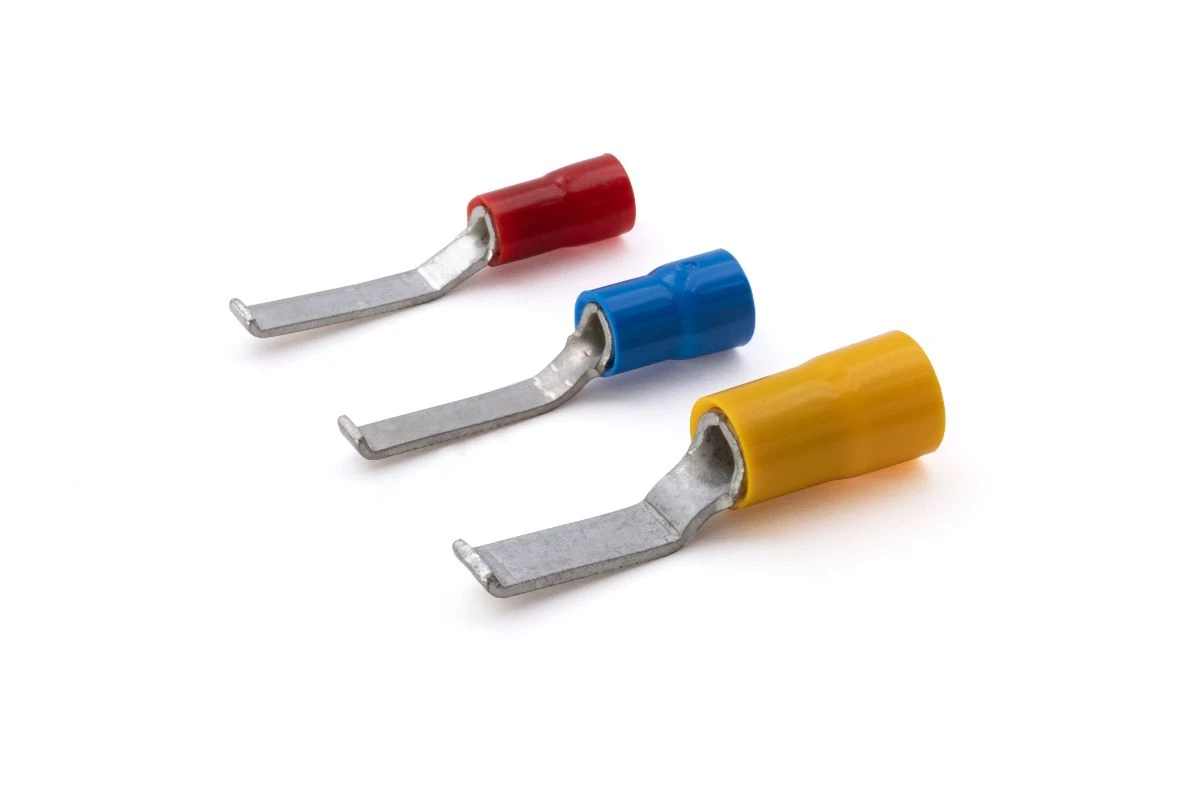

Cembre BF Series 1.5-2.5mm² PVC Insulated Hooked Blade Terminal 17.5 X 3mm Blue
Cembre BF Series 1.5-2.5mm² PVC Insulated Hooked Blade Terminal 17.5 X 3mm Blue
Cembre BF Series 1.5-2.5mm² PVC Insulated Hooked Blade Terminal 17.5 X 3mm Blue - Image 2
Cembre BF Series 1.5-2.5mm² PVC Insulated Hooked Blade Terminal 17.5 X 3mm Blue - Image 3
Cembre BF Series 1.5-2.5mm² PVC Insulated Hooked Blade Terminal 17.5 X 3mm Blue - Image 4

Cembre BF Series 1.5-2.5mm² PVC Insulated Hooked Blade Terminal 17.5 X 3mm Blue

Pack of 100

£11.04 Incl. VAT

1.5mm²-2.5mm² PVC insulated hooked blade terminal 17.5mm x 3mm blade size blue · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BF-PPL30 Categories: , , Brand: Product Code: 2500112324

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Flange shape Pin shape Colour insulation Blue Sleeve form Short For pull protected connections No AWG-range 16 – 14 Bolt dimension (metric) – Nominal cross section 1.5 – 2.5 mm² Max. current (Imax) – A Insulation Polyvinyl chloride (PVC) Surface protection Tinned Material Copper Suitable for round conductors Yes Useful for stranded conductors Yes Suitable for solid cores No Reel packaging No According to DIN No Suitable for high temperatures (to 650 °C) No Suitable for flat conductors No Suitable for fine strand conductors Yes Suitable for insulated varnish No · Technical Data Sheet – Click to Download
