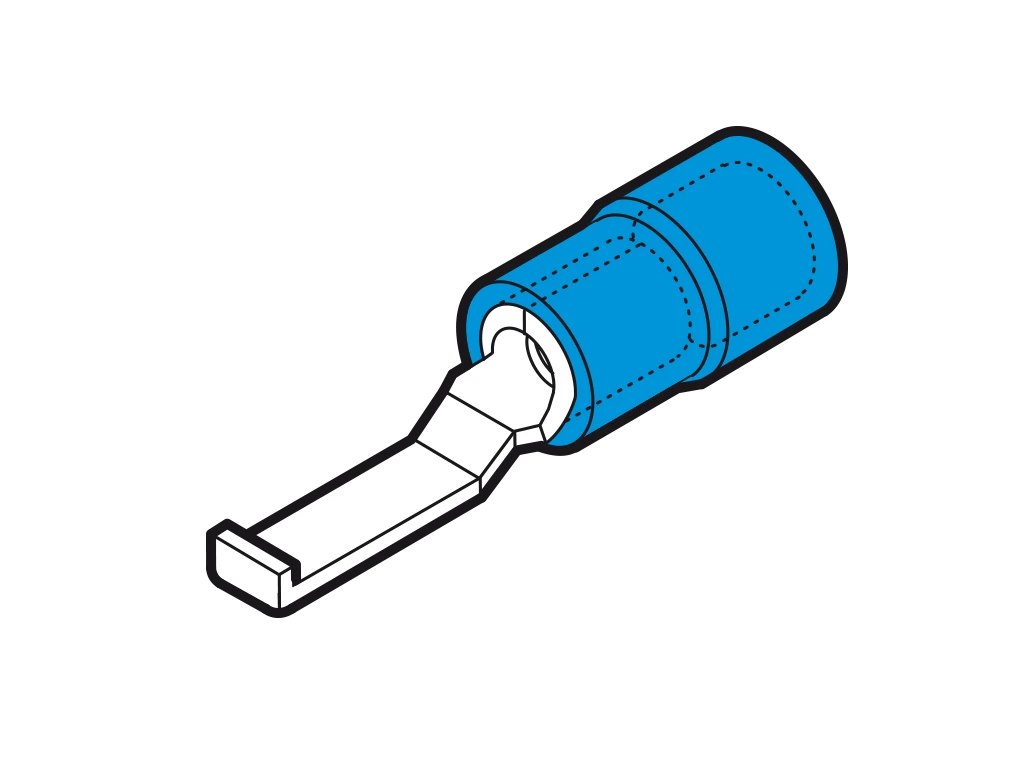

Cembre BF Series 1.5-2.5mm² PVC Insulated Hooked Blade Terminal 17.5 X 4.6mm Blue
Cembre BF Series 1.5-2.5mm² PVC Insulated Hooked Blade Terminal 17.5 X 4.6mm Blue

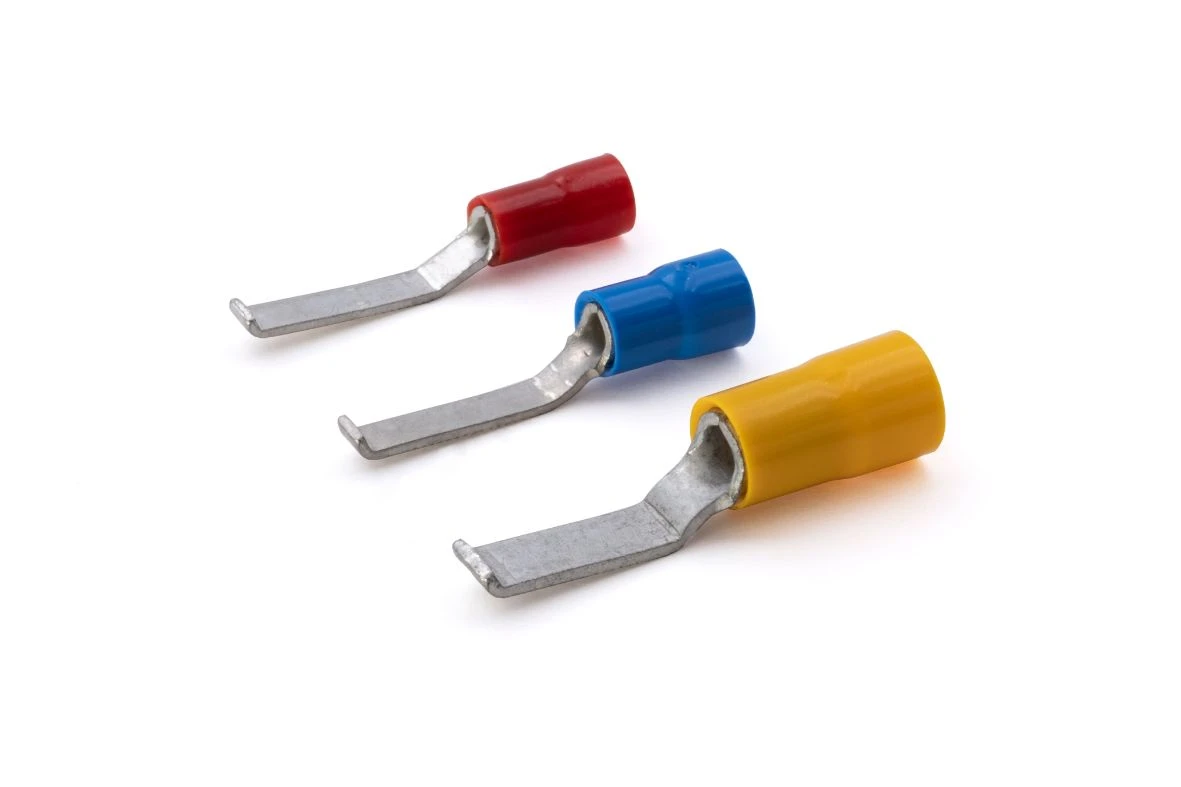

Cembre BF Series 1.5-2.5mm² PVC Insulated Hooked Blade Terminal 17.5 X 4.6mm Blue - Image 2
Cembre BF Series 1.5-2.5mm² PVC Insulated Hooked Blade Terminal 17.5 X 4.6mm Blue - Image 3
Cembre BF Series 1.5-2.5mm² PVC Insulated Hooked Blade Terminal 17.5 X 4.6mm Blue - Image 4

Cembre BF Series 1.5-2.5mm² PVC Insulated Hooked Blade Terminal 17.5 X 4.6mm Blue

Pack of 100

£13.80 Incl. VAT

1.5mm²-2.5mm² PVC insulated hooked blade terminal 17.5mm x 4.6mm blade size blue · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BF-PPL46 Categories: , , Brand: Product Code: 2500112325

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Colour insulation Blue Sleeve form Short Flange shape Pin shape Material Copper Insulation Polyvinyl chloride (PVC) Max. current (Imax) – A Surface protection Tinned For pull protected connections No Suitable for flat conductors No Suitable for round conductors Yes According to DIN No Reel packaging No AWG-range 16 – 14 Nominal cross section 1.5 – 2.5 mm² Bolt dimension (metric) – Suitable for fine strand conductors Yes Useful for stranded conductors Yes Suitable for solid cores No Suitable for high temperatures (to 650 °C) No Suitable for insulated varnish No · Technical Data Sheet – Click to Download
