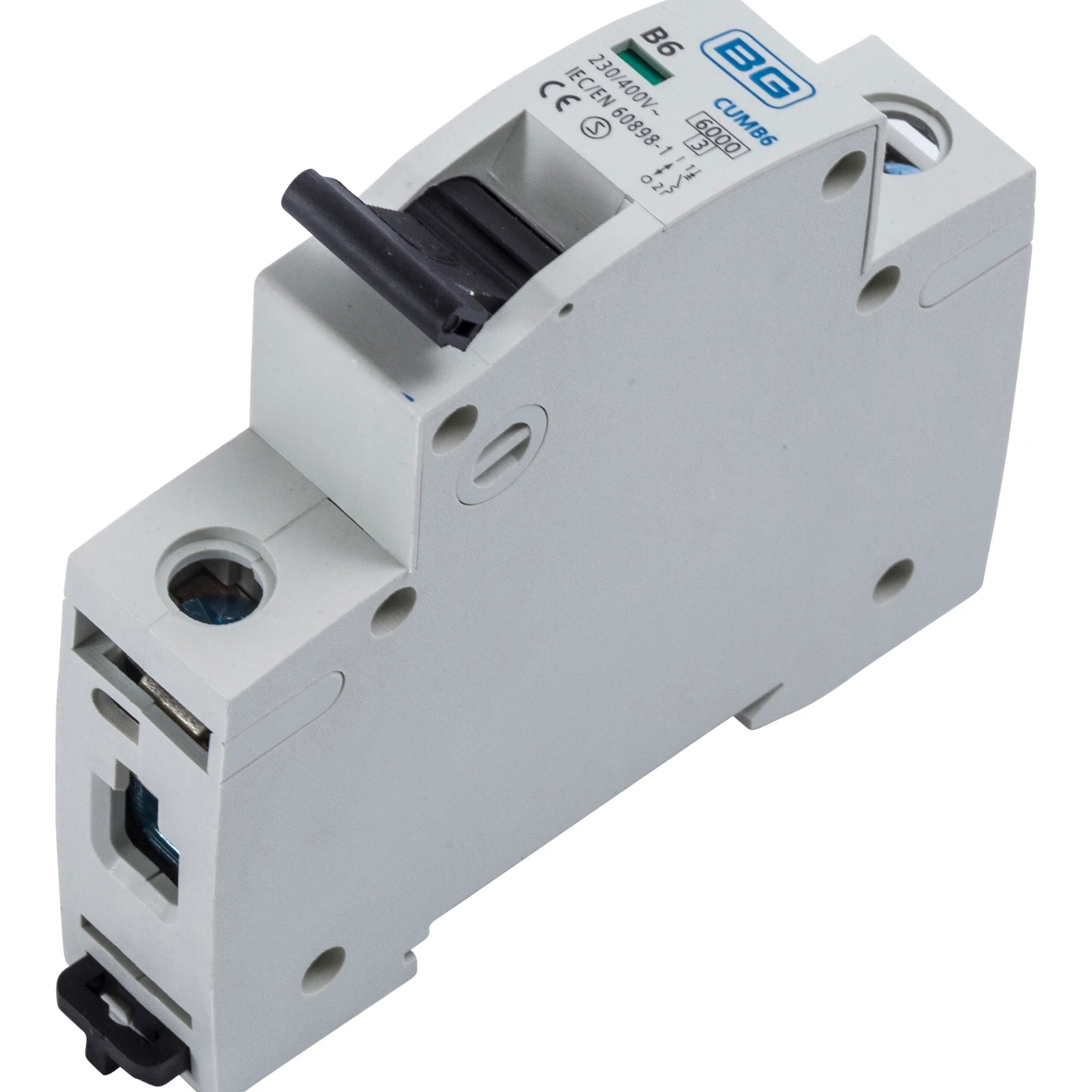

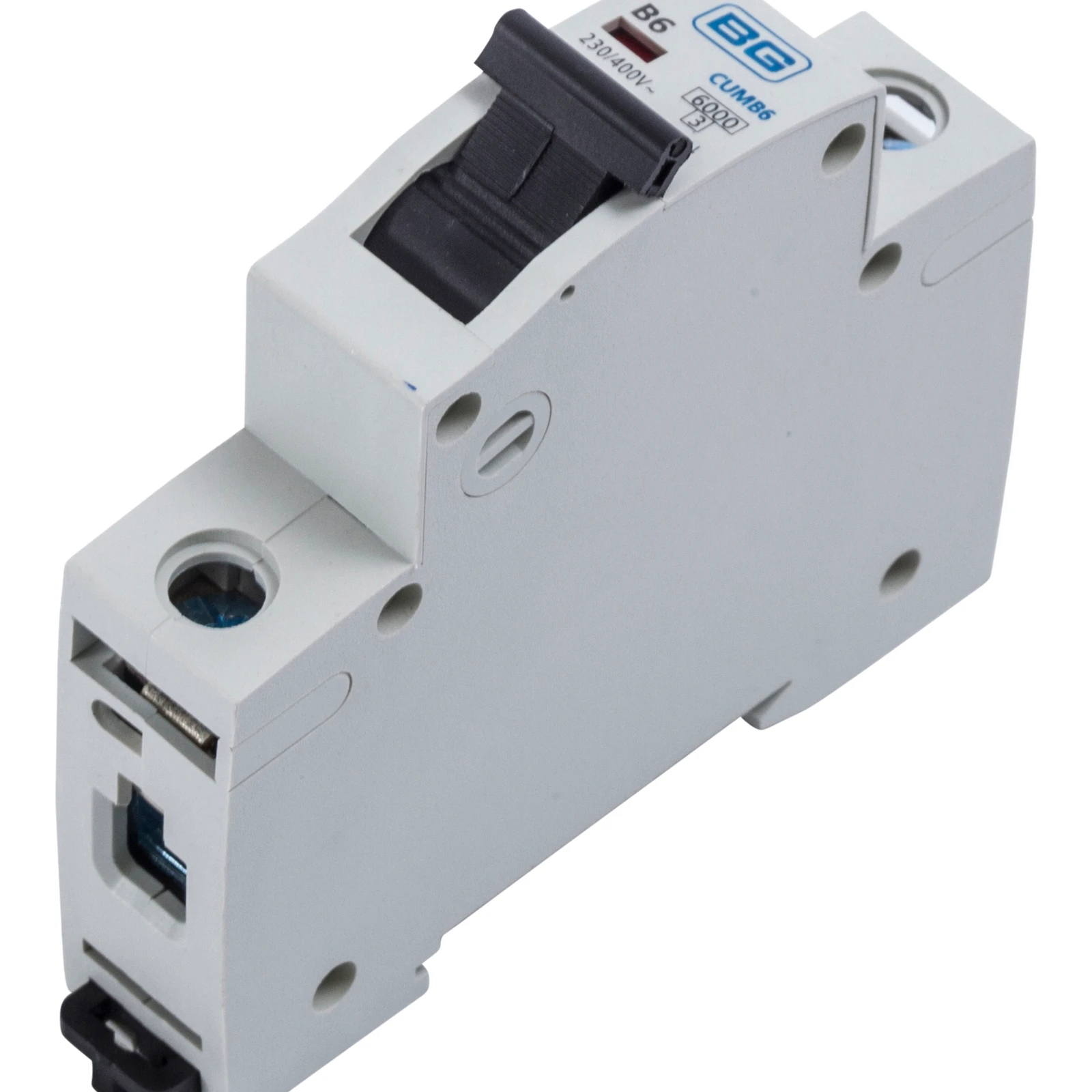

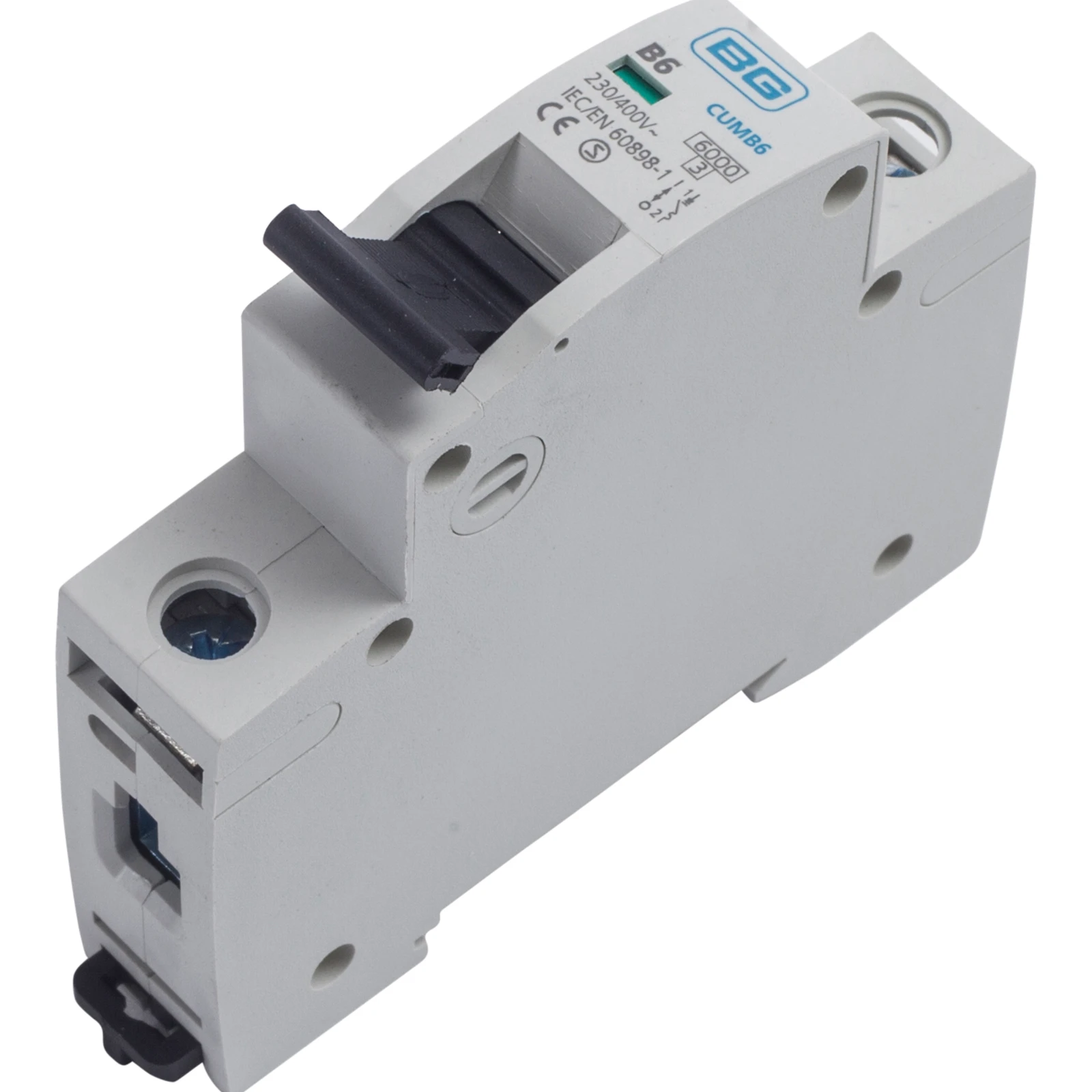

Luceco MCB Single Pole Type B 6A 6kA 18 x 81 x 76mm
Luceco MCB Single Pole Type B 6A 6kA 18 x 81 x 76mm
Luceco MCB Single Pole Type B 6A 6kA 18 x 81 x 76mm - Image 2
Luceco MCB Single Pole Type B 6A 6kA 18 x 81 x 76mm - Image 3
Luceco MCB Single Pole Type B 6A 6kA 18 x 81 x 76mm - Image 4

Luceco MCB Single Pole Type B 6A 6kA 18 x 81 x 76mm

£6.42 Incl. VAT

A Miniature Circuit Breaker featuring thermo-magnetic tripping technology, current limiting MCBs available with type B operating characteristics, which provide overload and short circuit protection. All MCB have a positive contact status indicator, when green window is visible this indicates that there is a 4mm contact gap. · · · Single Pole · · 6kA breaking capacity · · Lockable dolly switch · · Device capable of being locked in ‘ON’ or ‘OFF’ position using device lock · · Manufactured according to EN/IEC 6089 standards · · Large terminal capacity

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CUMB6 Categories: , , Brand: Product Code: 2500354087

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Degree of protection (IP rating) IP20 Voltage type AC Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated current 6 A Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Frequency 50 – 50 Hz · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
