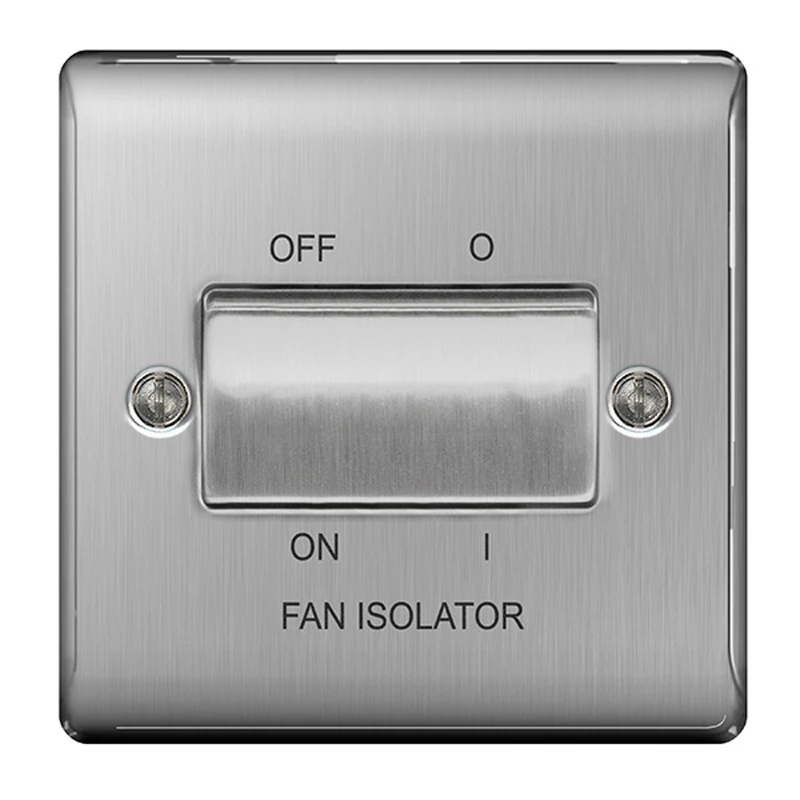

BG Nexus NBS15 Brushed Steel Plate Switch for Fan Isolator 10AX
£12.54 Incl. VAT
Sleek and slim premium metal accessories with softly rounded edges · · · 10 Amp rated · · Used for controlling and isolating extractor fans · · Easy to install, supplied with fixing screws and installation instructions · · Minimum mounting box depth: 25mm · · Captive, backed out terminal screws for fast installation · · Terminal capacity 4 x 1.0mm², 4 x 1.5mm², 2 x 2.5mm² &1 x 4.0mm² · · Triple pole switching design, however can be used for double pole applications if required · · Manufactured to IEC 60669-2-4 · · ASTA Licence Number 1015
22 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Switch Method of operation Rocker Surface finish Matt Mounting method Flush mounted Material Metal Colour Silver Illumination No Assembly Basic unit with full cover plate Colour of rocker/switch operator Silver Rated current 10 A Nominal voltage 250 V Number of module spaces (modular system) 1 Depth of device 21.2 mm Width of device 86 mm Height of device 86 mm · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2316534
