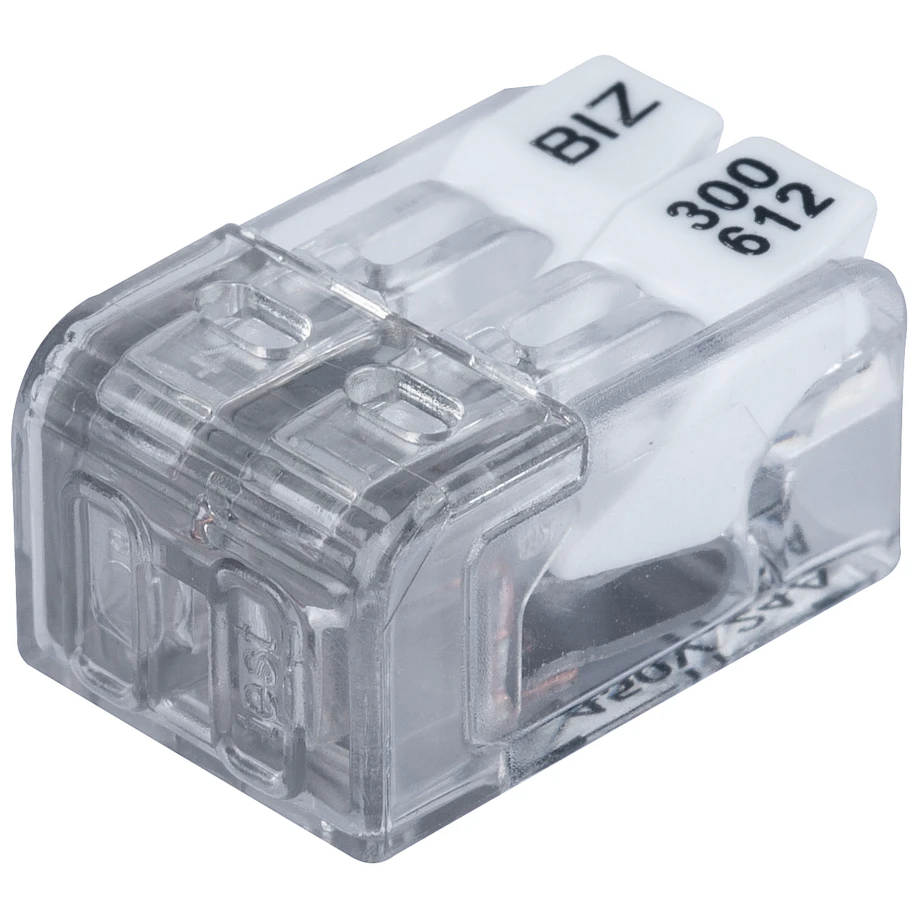

Bizline 2 Way Lever Push Wire Connector Biz’Wing mini 2.5 0.2-2.5 mm² – 100 Pack
£29.60 Incl. VAT
Biz’Wing mini 2.5 0.2-2.5 mm² (x 100) 2-input lever wire connector, perfect for optimising your installations thanks to its tiny size! Practical: ergonomic and flexible. A transparent body facilitates the insertion of wires. · · · Mini lever wire connectors for optimizing your installations! · · Section for inserting flexible and rigid wires: 0.2 to 2.5 mm². · · Glow wire resistance: 850 °C. · · Max. ambient operating temperature: 85 °C. · · Voltage (V): 450. · · Intensity (A): 24. · · Strip off 11 mm. · · Test point. · · Material: polycarbonate.
Out of stock
Description
Technical Specifications Technical Specifications Push in terminal Colour White Nominal voltage 450 V Nominal current 24 A Number of clamp positions 2 Conductor cross section flexible (fine-strand) with cable end sleeve 0.2 – 2.5 mm² Cable diameter 0.5 – 1.78 mm Nominal cross section 0.2 – 2.5 mm² Conductor cross section solid (solid, stranded) 0.2 – 2.5 mm² AWG-range 24 – 14 Suitable for solid core Yes With operation lever Yes Suitable for flexible core Yes Suitable for multi-wire core Yes Transparent Yes · Technical Data Sheet – Click to Download
