Bizline Attachments for M6 Threaded Rods 15-20 mm (x 25)
Bizline Attachments for M6 Threaded Rods 15-20 mm (x 25)
Bizline Attachments for M6 Threaded Rods 15-20 mm (x 25) - Image 2
Bizline Attachments for M6 Threaded Rods 15-20 mm (x 25) - Image 3

Bizline Attachments for M6 Threaded Rods 15-20 mm (x 25)

£57.14 Incl. VAT

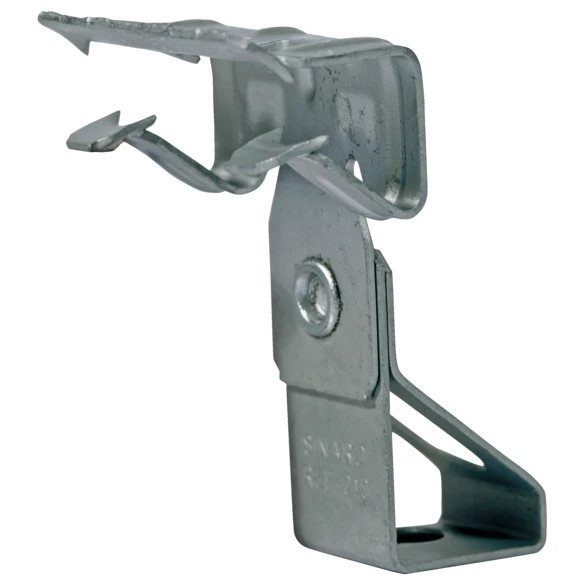

IPN 15-20 mm attachment for M6 threaded rods (x25). No drilling required. For quick and easy installation of suspended ceilings, lighting and ventilation systems on IPN beams using M6 threaded rods. · · · CK-67 Carbon steel to DIN 17222. · · HRC 43-45 hardness after treatment. · · Salt spray resistance: 480 hours (DIN 50021).

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BIZ 710336 Categories: , , Brand: Product Code: 2501419571

Description

Technical Specifications  Technical Specifications Beam clip Material Steel Type of fastening Edge clip Connection type construction part Hole Surface protection Zinc/aluminium flake coating Thread size (metric) 6 Breaking load 700 N Flange thickness 15 – 20 mm Tube/cable diameter 15 – 20 mm Hinged No Hinge adjustable No · Technical Data Sheet – Click to Download
