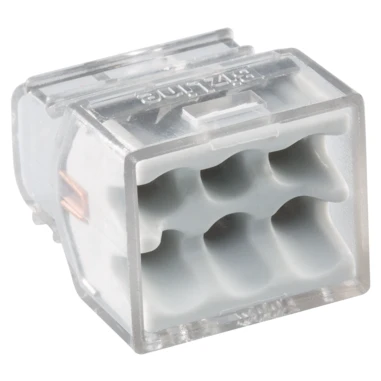

Bizline Christa'l Mini Push-in Wire Connector 6 Way 24A for up to 2.5mm Cables - Grey - Pack of 100
Bizline Christa'l Mini Push-in Wire Connector 6 Way 24A for up to 2.5mm Cables - Grey - Pack of 100
Bizline Christa'l Mini Push-in Wire Connector 6 Way 24A for up to 2.5mm Cables - Grey - Pack of 100 - Image 2

Bizline Christa’l Mini Push-in Wire Connector 6 Way 24A for up to 2.5mm Cables – Grey – Pack of 100

£33.23 Incl. VAT

CHRISTA’L MINI 6-input terminal block (x 100) for rigid wires from 1.5 to 2.5 mm², 400-V voltage and 24-A current. Includes 12 mm strip and test point to quickly check if the connection is correct. French standard compliant. · · · Christa’L Mini push-in wire connectors. · · Self-extinguising V0 approuved automatic connection terminals. · · Glow wire test 960 °C < 5 s (NF EN 60 998-2-2). · · Operating temperature : -25 °C to +50 °C. · · For solid wires from 1.5 to 2.5 mm². · · Material: polycarbonate colored body and polyamide 6.6. · · Voltage: 400 V. · · Intensity: 24 A.

23 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BIZ 300606 Categories: , , Brand: Part Number: 2501419778

Description

Technical Specifications  Technical Specifications Push in terminal Colour Grey Nominal current 24 A Number of clamp positions 6 Cable diameter 0 – 2 mm Nominal voltage 400 V Conductor cross section flexible (fine-strand) with cable end sleeve – mm² AWG-range 13 – 17 Nominal cross section 0 – 2.5 mm² Conductor cross section solid (solid, stranded) 0 – 2.5 mm² Transparent No Suitable for solid core Yes With operation lever No Suitable for flexible core No Suitable for multi-wire core No · Technical Data Sheet – Click to Download
