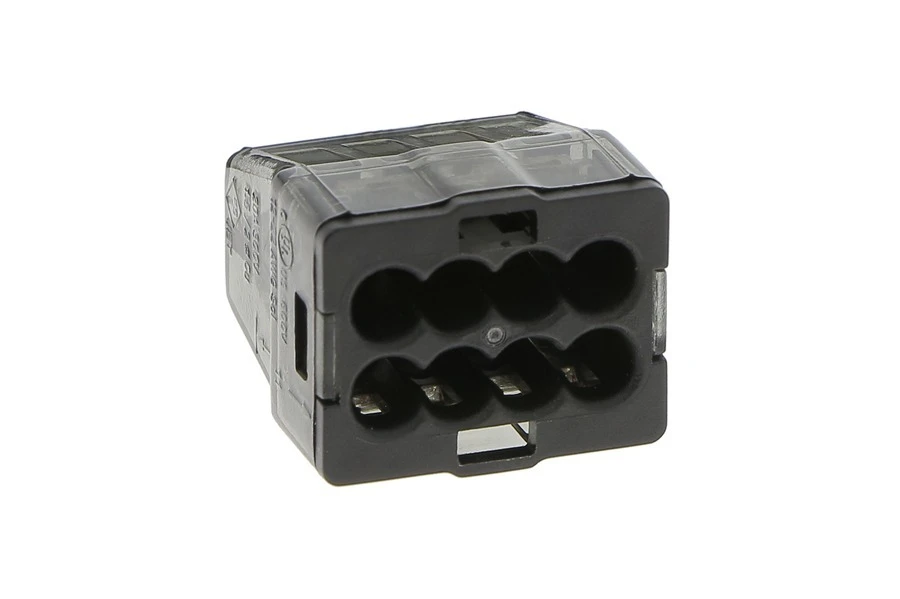

Bizline Christa’l Push-in Wire Connector 8 Way 24A for up to 2.5mm Cables – Black – Pack of 50

£16.99 Incl. VAT

CHRISTA’L MINI 8-input black terminal block (x 50) for rigid wires from 0.5 to 2.5 mm², 450-V voltage and 24-A current. Includes 11-mm strip and test point to quickly check if the connection is correct. · · · Self-extinguishing V0 approved automatic connection terminals. · · Glow wire test: 960 °C < 5 s (NF EN 60 998-2-2). · · Operating temperature: -30 °C to +105 °C. · · For solid wires from 1 to 2.5 mm². · · Material: polycarbonate colored body and polyamide 6.6 white door. · · Voltage: 450 V. · · Intensity: 24 A.

7 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BIZ 301408 Categories: , , Brand: Part Number: 2501420065

Description

Technical Specifications  Technical Specifications Push in terminal Colour Black Number of clamp positions 8 Nominal current 24 A Nominal voltage 450 V Cable diameter 0.8 – 1.78 mm Conductor cross section flexible (fine-strand) with cable end sleeve – mm² Nominal cross section 0.5 – 2.5 mm² Conductor cross section solid (solid, stranded) 0.5 – 2.5 mm² AWG-range 20 – 14 Suitable for solid core Yes With operation lever No Suitable for flexible core No Suitable for multi-wire core No Transparent No · Technical Data Sheet – Click to Download
