Bizline Christa’l Push-in Wire Connector Assortment Pack 24A for up to 2.5mm Cables – 100 Pack
£25.42 Incl. VAT

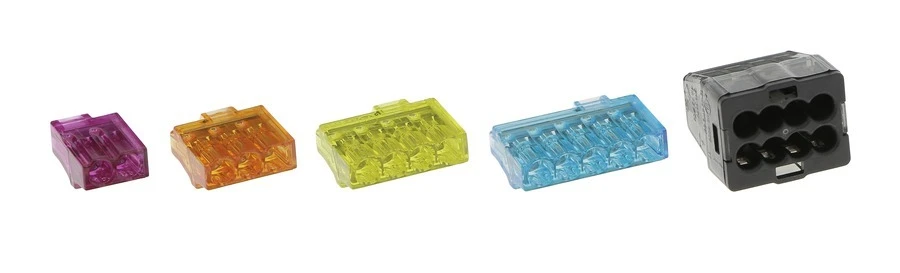

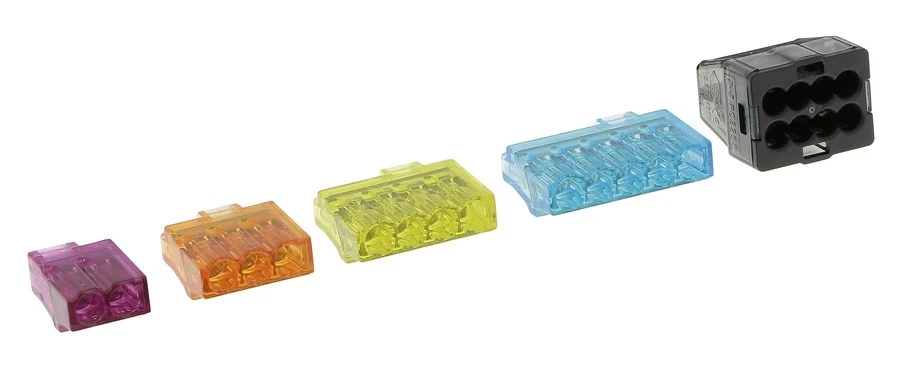

CHRISTA’L MINI terminal block various sizes: 20 x 2 / 30 x 3 /10 x 4 / 30 x 5 / 10 x 8 (x 100) for rigid wires from 0.5 to 2.5 mm², 450-V voltage and test point to quickly check if the connection is correct. · · · Self-extinguishing V0 approved automatic connection terminals. · · Glow wire test: 960 °C < 5 s (NF EN 60 998-2-2). · · Operating temperature: -30 °C to +105 °C. · · For solid wires from 1 to 2.5 mm². · · Material: polycarbonate colored body and polyamide 6.6 white door. · · Voltage: 450 V. · · Intensity: 24 A.
Out of stock
Description
Technical Specifications Technical Specifications Push in terminal Nominal voltage 450 V Colour Multi colour Nominal current 24 A Number of clamp positions – Conductor cross section flexible (fine-strand) with cable end sleeve – mm² Cable diameter 0.8 – 1.78 mm Nominal cross section 0.5 – 2.5 mm² Conductor cross section solid (solid, stranded) 0.5 – 2.5 mm² AWG-range 14 – 20 Suitable for solid core Yes Transparent No With operation lever No Suitable for flexible core No Suitable for multi-wire core No · Technical Data Sheet – Click to Download
