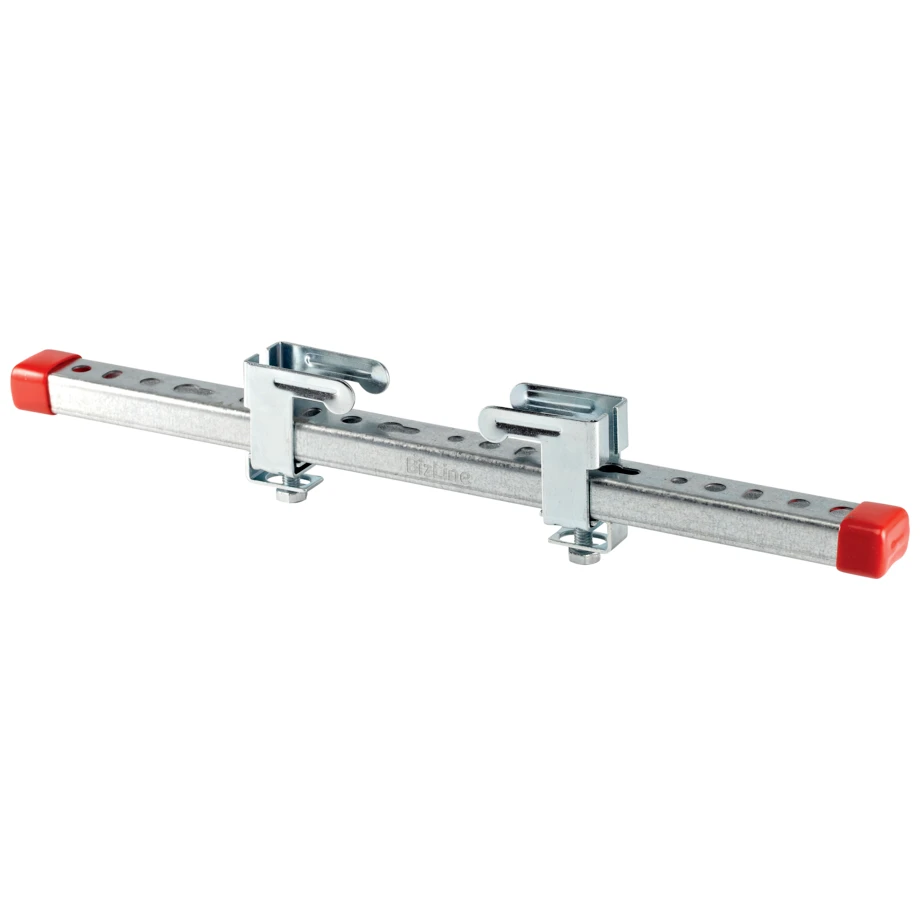

Bizline Fasten All Mounting Rail for IPN/IPE Beam 600mm Sheet Thickness < 20mm
£41.28 Incl. VAT

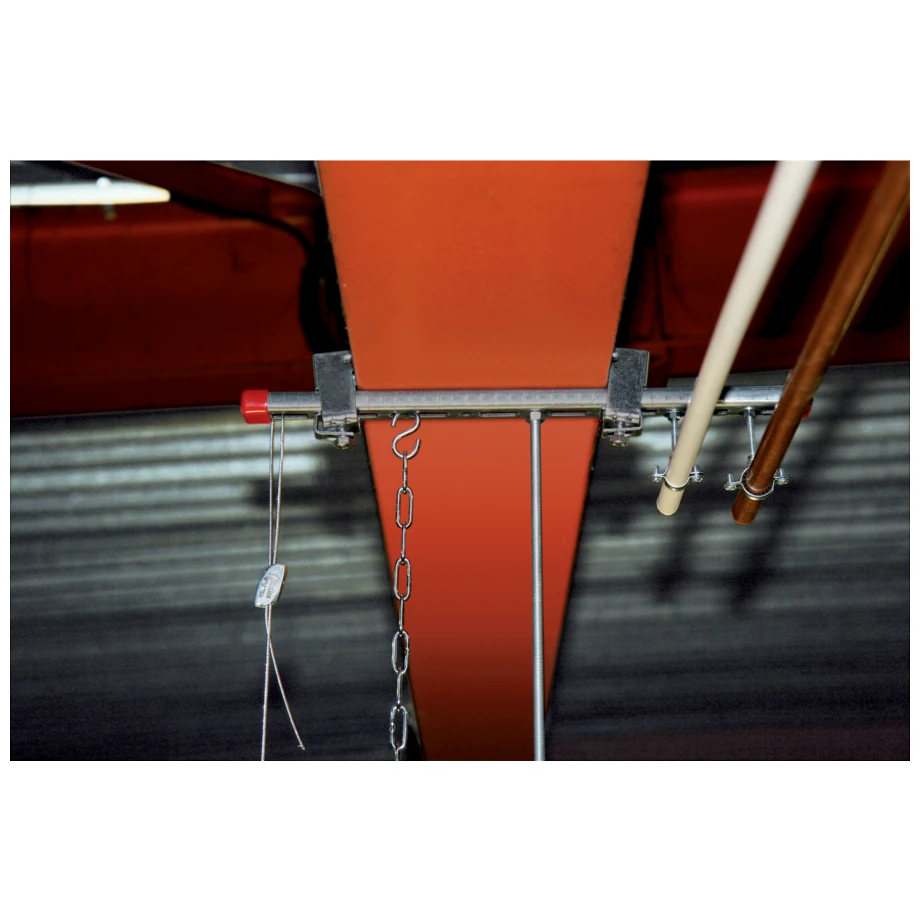

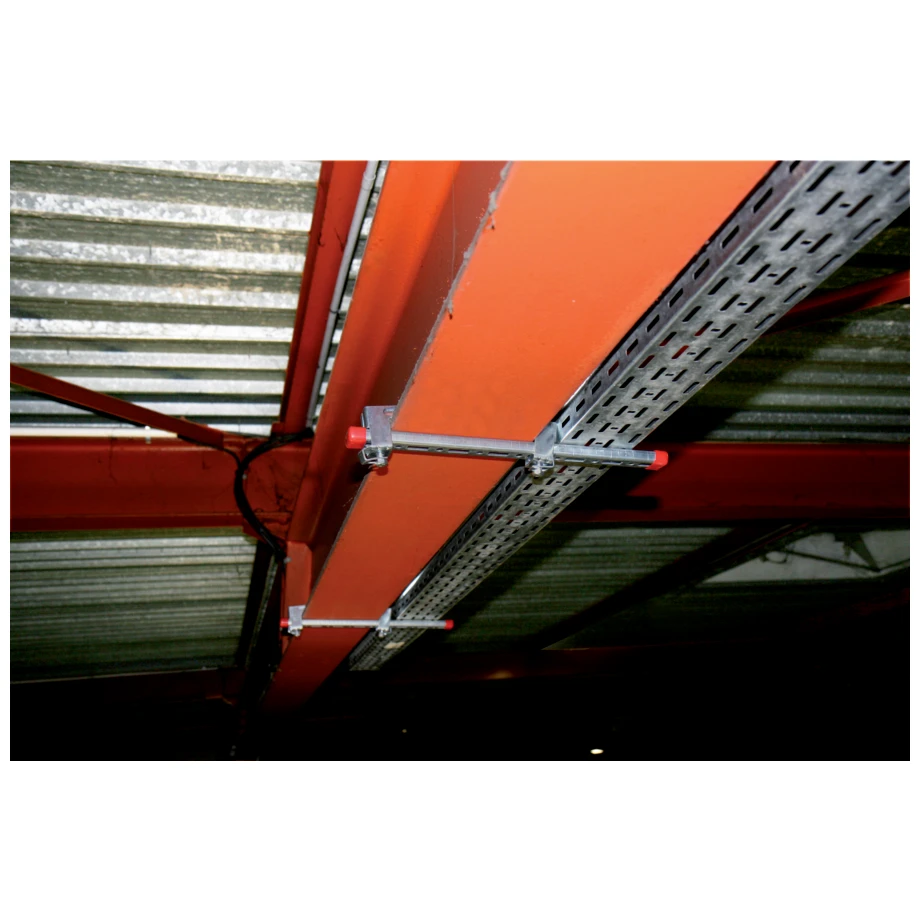

Fasten all rail for IPN/IPE 600 mm beam metal thickness < 20 mm. No drilling required. For installation of cable trays, ventilation and ducting and lighting systems. For use with ''S'' hooks, threaded rods and ropes. · · · Graded steel rail 1.0242 Sendzimir galvanized finish. · · Clamps in zinc-plated steel. · · Finish caps. · · CSTB report n° EEM 12 26038684. · · Install cable trays, ventilation ducts, light fixtures, pipes, or any suspension on 2 to 20 mm thick beams. · · Use with "S" hooks, M6, M8 and M10 threaded rods, wires, plumbing hooks, cable ties. · · Can also be used to support cable trays.
Description
Technical Specifications Technical Specifications Beam clip Material Steel Surface protection Galvanic/electrolytic zinc plated Connection type construction part Pipe/cable Type of fastening With plug bolt/expanding bolt Breaking load 20 N Thread size (metric) 0 Flange thickness 0 – 20 mm Hinged Yes Tube/cable diameter 0 – 20 mm Hinge adjustable Yes · Technical Data Sheet – Click to Download
