Bizline Junction SQUALE D6 Kit Sealed Connection 1 x 5 Entry Screw Connector Wire up to 5 x 4 mm²
Bizline Junction SQUALE D6 Kit Sealed Connection 1 x 5 Entry Screw Connector Wire up to 5 x 4 mm²
Bizline Junction SQUALE D6 Kit Sealed Connection 1 x 5 Entry Screw Connector Wire up to 5 x 4 mm² - Image 2
Bizline Junction SQUALE D6 Kit Sealed Connection 1 x 5 Entry Screw Connector Wire up to 5 x 4 mm² - Image 3
Bizline Junction SQUALE D6 Kit Sealed Connection 1 x 5 Entry Screw Connector Wire up to 5 x 4 mm² - Image 4

Bizline Junction SQUALE D6 Kit Sealed Connection 1 x 5 Entry Screw Connector Wire up to 5 x 4 mm²

£45.26 Incl. VAT

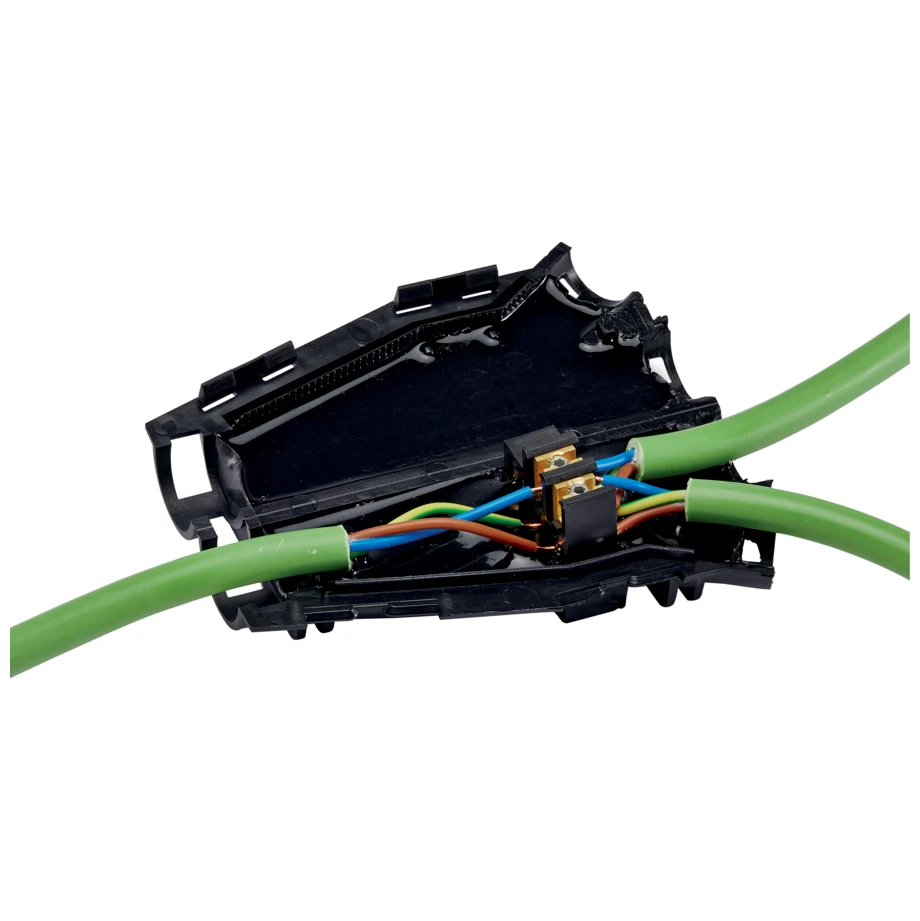

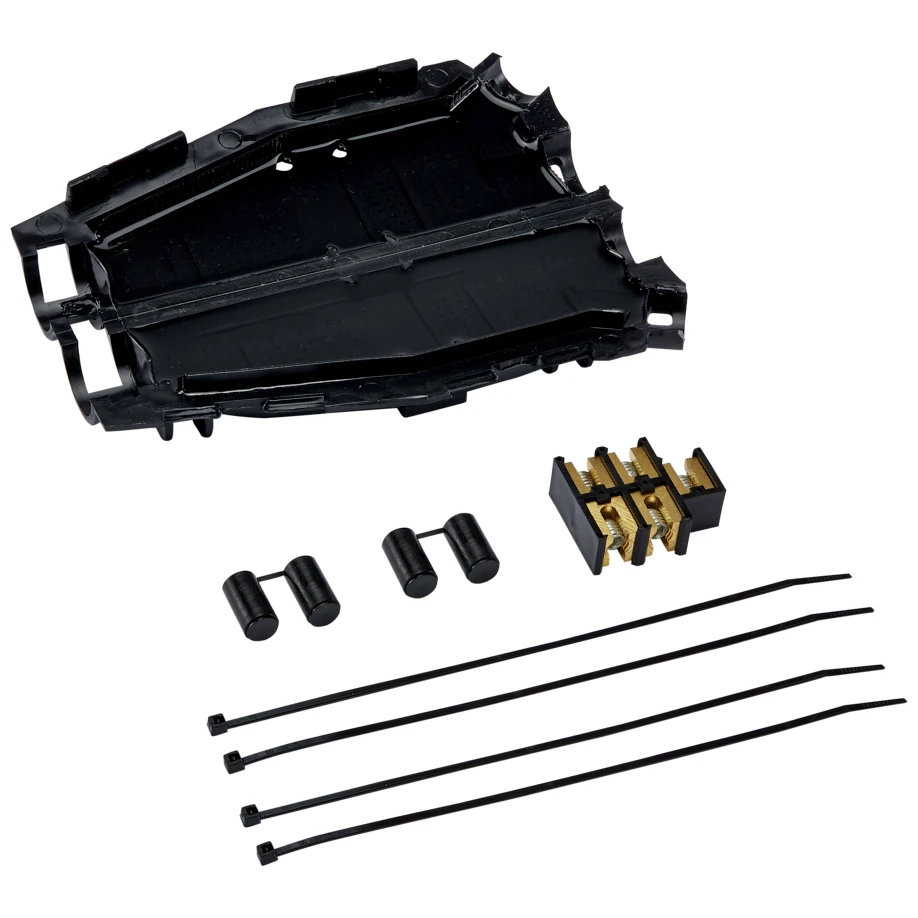

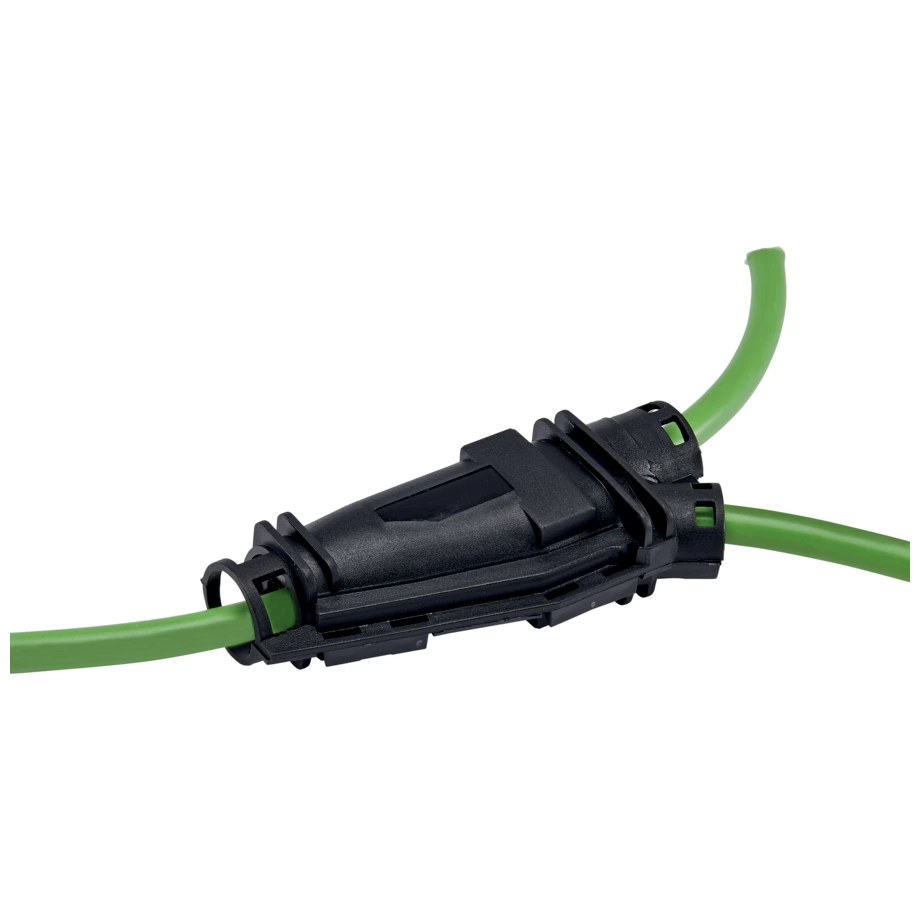

SQUALE D6 junction box connection kit for connections up to 5 x 4 mm². Prefilled. With 5-input connector. For waterproofing and sealing connections. Non-toxic, no expiry date and can be resealed. Interior or exterior application. · · · Voltage: 0.6 to 1 kV. · · Supplied with 5-input connection system and 4 cable ties for perfect watertightness. · · For connecting, insulating, sealing and protecting copper electrical cables. · · Ideal in outdoor, damp and immersed environments.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BIZ 710308 Categories: , , Brand: Part Number: 2501419700

Description

Technical Specifications  Technical Specifications Cable jointing kit straight Connection accessories Screw connector Insulation material type Plastic Model Gel Rated voltage U0/U (Um) 0.6/1 (1.2) kV Number of conductors 5 Nominal cross section conductor 1.5 – 6 mm² Mining sector approval No With protective conductor No With concentric shielding No For connection of paper- with plastic insulated cables No Halogen free Yes · Technical Data Sheet – Click to Download
