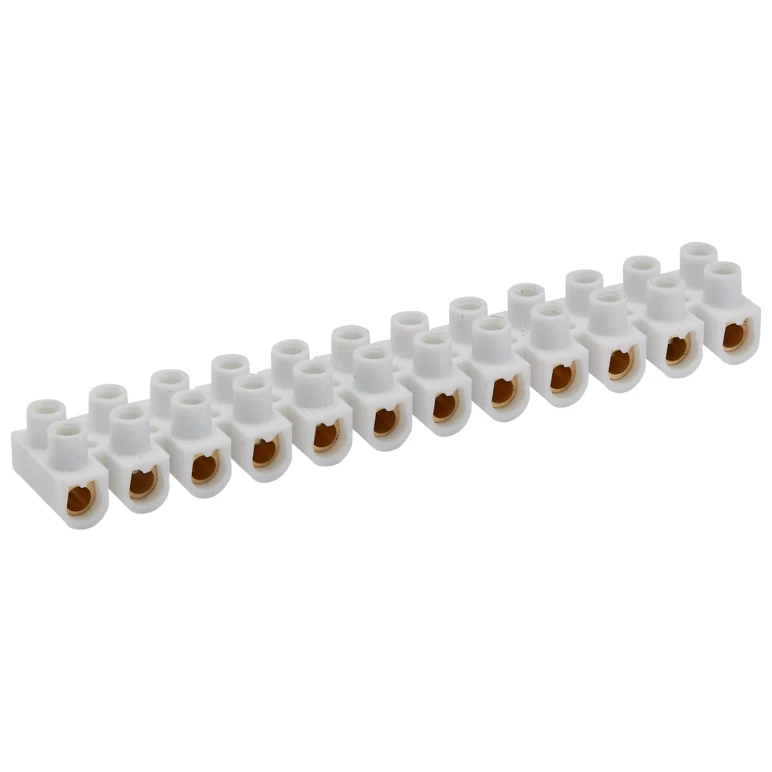

Bizline Terminal Blocks 16 mm² White Polypropylene (x 10)

Technical Specifications  Technical Specifications Single- and multi-pole terminal strip Material insulation body Thermoplastic Colour White Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated voltage 400 V Width – mm Drill hole distance centrically 13 mm Number of poles 12 Height – mm Depth – mm Rated current In 76 A Number of clamp positions per pole 2 Connectable conductor cross section fine-strand with cable end sleeve 0 – 10 mm² Connectable conductor cross section fine-strand without cable end sleeve 0 – 16 mm² Operating temperature -25 – 50 °C Connectable conductor cross section solid-core 0 – 16 mm² Connectable conductor cross section multi-wired 0 – 16 mm² Explosion-tested version ‘Ex e’ No Halogen free No Transparent No Closing plate required No · Technical Data Sheet – Click to Download
