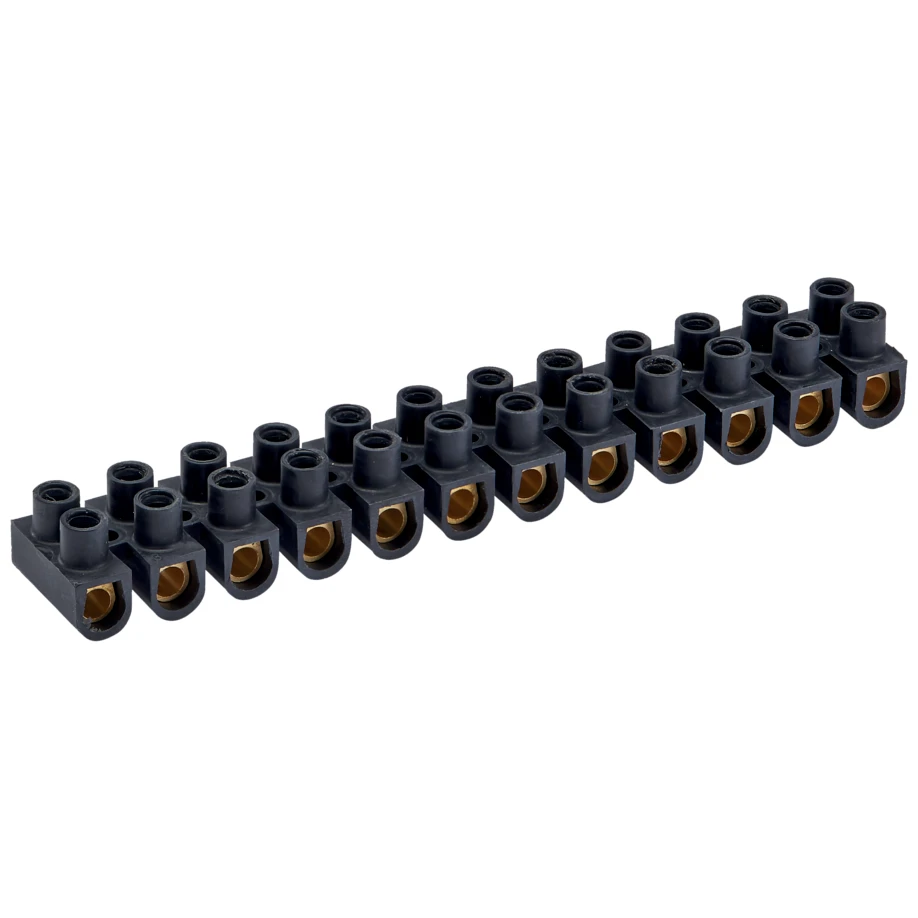

Bizline Terminal Blocks 2.5mm² Black Polypropylene – 10 Pack
£13.07 Incl. VAT
12-way black polypropylene 2.5 mm² terminal blocks, sold with screws engaged at 1/3. Ultra-flexible, the blocks can be separated with 1.5 turns without the use of tools. NF compliant. · · · 12-way polypropylene connector strips. · · Supplied with screws engaged at 1/3. · · Glow wire test: 960 °C.
11 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Single- and multi-pole terminal strip Colour Black Material insulation body Thermoplastic Connection position Sideways Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Rated voltage 400 V Height – mm Rated current In 57 A Depth – mm Height at lowest possible mounting height 15 mm Width/grid dimension 19 mm Drill hole distance centrically 7.9 mm Number of clamp positions per pole 2 Number of poles 12 Width – mm Length 93 mm Connectable conductor cross section fine-strand with cable end sleeve 0 – 2.5 mm² Operating temperature -25 – 40 °C Connectable conductor cross section fine-strand without cable end sleeve 0 – 4 mm² Connectable conductor cross section solid-core 0 – 4 mm² Connectable conductor cross section multi-wired 0 – 4 mm² Explosion-tested version ‘Ex e’ No Closing plate required No Halogen free No Transparent No · Technical Data Sheet – Click to Download
