Bizline Terminal Blocks 25mm² Black Polypropylene – 10 Pack
£29.22 Incl. VAT

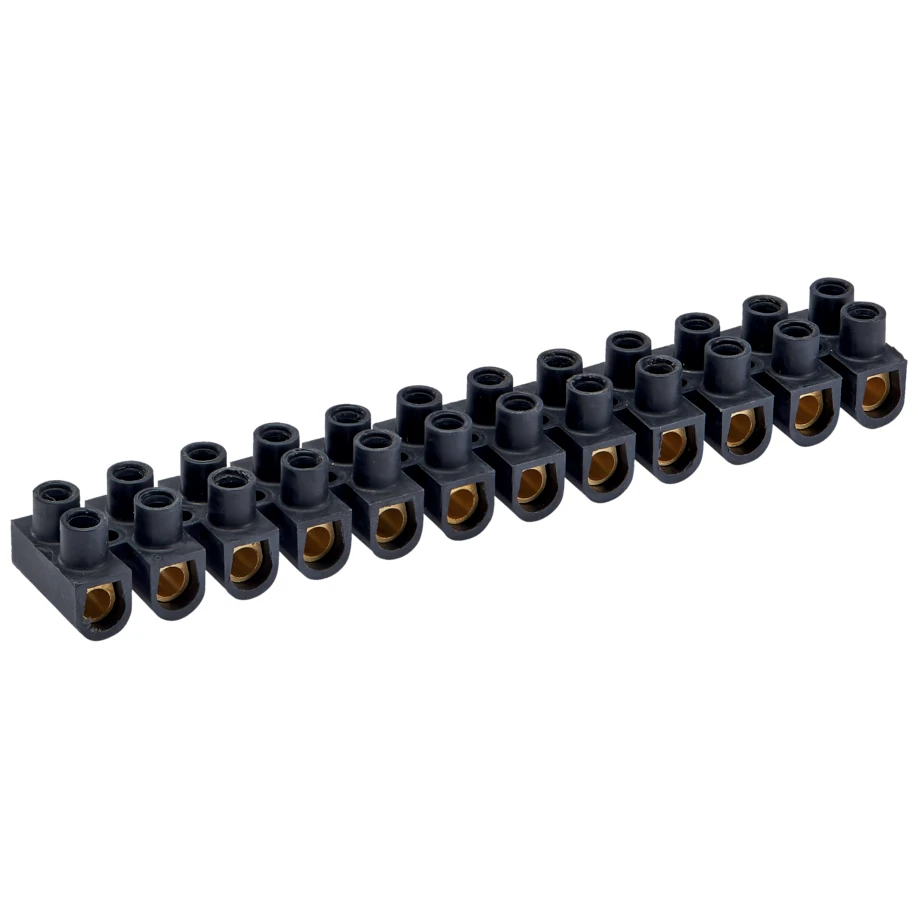

12-way black polypropylene 25 mm² terminal blocks, sold with screws engaged at 1/3. Ultra-flexible, the blocks can be separated with 1.5 turns without the use of tools. NF compliant. · · · 12-way polypropylene connector strips. · · Supplied with screws engaged at 1/3. · · Glow wire test: 960 °C.
Out of stock
Description
Technical Specifications Technical Specifications Single- and multi-pole terminal strip Colour Black Material insulation body Thermoplastic Connection position Sideways Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated voltage 400 V Height – mm Width – mm Number of poles 12 Number of clamp positions per pole 2 Width/grid dimension 32 mm Rated current In 57 A Connectable conductor cross section fine-strand without cable end sleeve 0 – 25 mm² Connectable conductor cross section fine-strand with cable end sleeve 0 – 16 mm² Depth – mm Length 206 mm Height at lowest possible mounting height 25 mm Drill hole distance centrically 17.8 mm Operating temperature -25 – 40 °C Connectable conductor cross section solid-core 0 – 25 mm² Connectable conductor cross section multi-wired 0 – 25 mm² Halogen free No Explosion-tested version ‘Ex e’ No Closing plate required No Transparent No · Technical Data Sheet – Click to Download
