Bizline Terminal Blocks 6 mm² Black Polypropylene (x 10)
Bizline Terminal Blocks 6 mm² Black Polypropylene (x 10)
Bizline Terminal Blocks 6 mm² Black Polypropylene (x 10) - Image 2
Bizline Terminal Blocks 6 mm² Black Polypropylene (x 10) - Image 3

Bizline Terminal Blocks 6 mm² Black Polypropylene (x 10)

£13.31 Incl. VAT

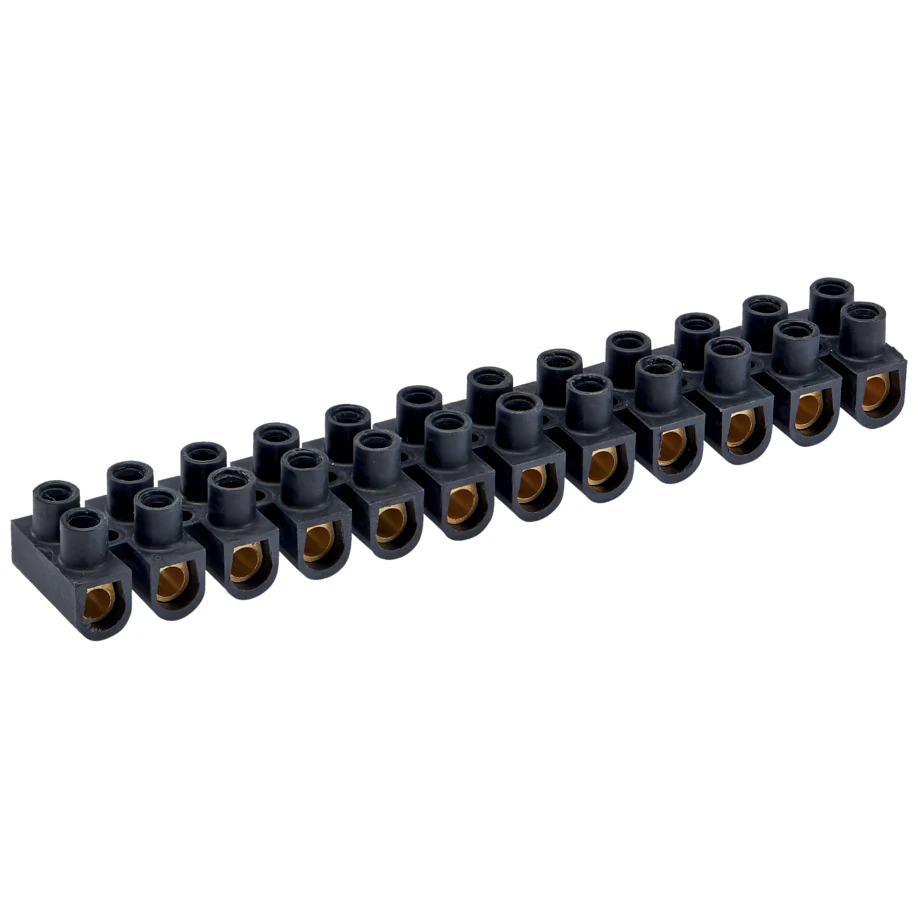

12-way black polypropylene 6 mm² terminal blocks, sold with screws engaged at 1/3. Ultra-flexible, the blocks can be separated with 1.5 turns without the use of tools. NF compliant. · · · 12-way polypropylene connector strips. · · Supplied with screws engaged at 1/3. · · Glow wire test: 960 °C.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BIZ 320002 Categories: , , , , , Brand: Product Code: 2501419334

Description

Technical Specifications  Technical Specifications Single- and multi-pole terminal strip Material insulation body Thermoplastic Colour Black Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Rated voltage 400 V Width – mm Depth – mm Number of poles 12 Number of clamp positions per pole 2 Height – mm Rated current In 57 A Drill hole distance centrically 9.4 mm Operating temperature -25 – 40 °C Connectable conductor cross section fine-strand with cable end sleeve 0 – 4 mm² Connectable conductor cross section fine-strand without cable end sleeve 0 – 6 mm² Connectable conductor cross section solid-core 0 – 6 mm² Connectable conductor cross section multi-wired 0 – 6 mm² Halogen free No Transparent No Explosion-tested version ‘Ex e’ No Closing plate required No · Technical Data Sheet – Click to Download
