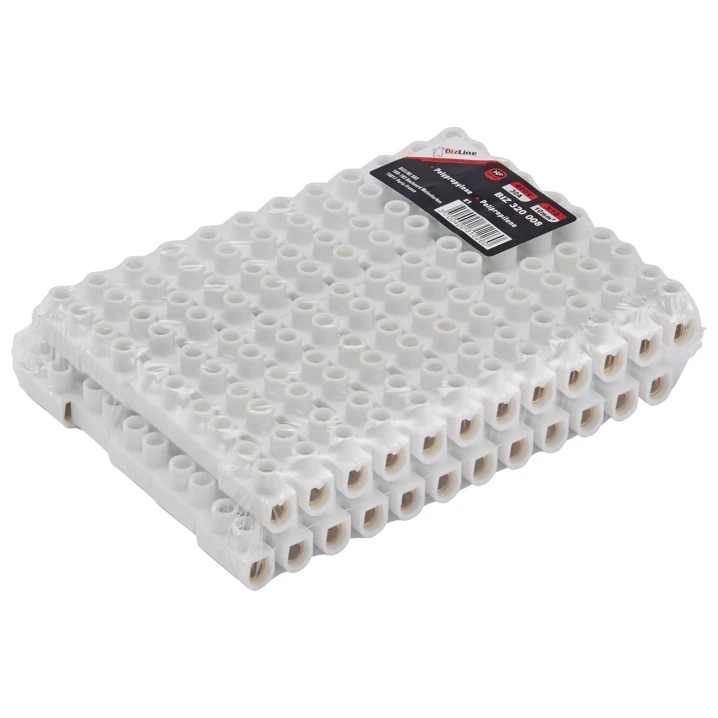

Bizline Terminal Blocks 6 mm² White Polypropylene (x 10)
£15.13 Incl. VAT

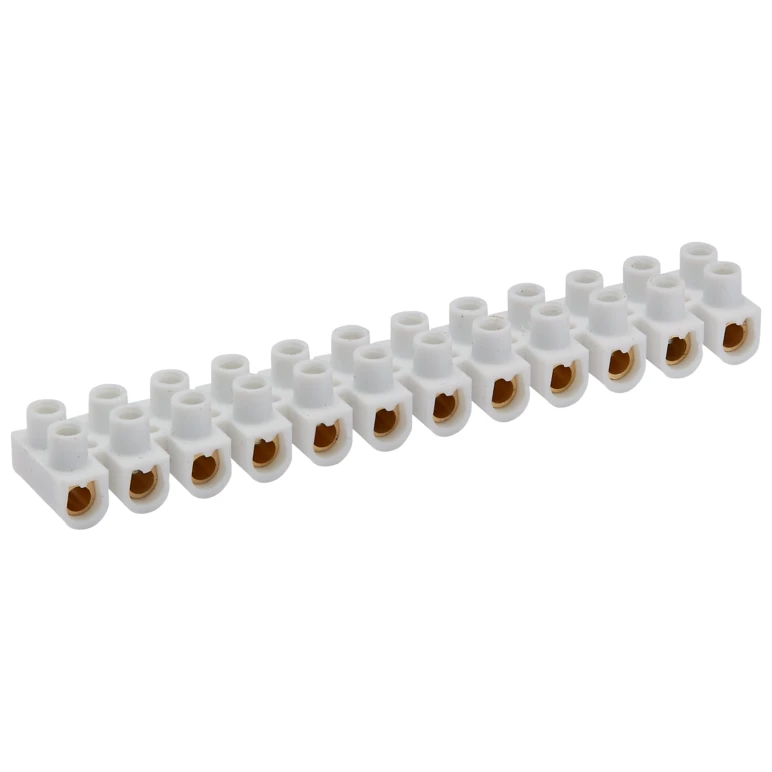

12-way white polypropylene 6 mm² terminal blocks, sold with screws engaged at 1/3. Ultra-flexible, the blocks can be separated with 1.5 turns without the use of tools. NF compliant. · · · 12-way polypropylene connector strips. · · Supplied with screws engaged at 1/3. · · Glow wire test: 960 °C.
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Single- and multi-pole terminal strip Material insulation body Thermoplastic Type of electrical connection 1 Screw connection Colour White Type of electrical connection 2 Screw connection Rated voltage 400 V Height – mm Drill hole distance centrically 9.4 mm Width – mm Number of poles 12 Number of clamp positions per pole 2 Rated current In 41 A Depth – mm Operating temperature -25 – 50 °C Connectable conductor cross section fine-strand with cable end sleeve 0 – 4 mm² Connectable conductor cross section fine-strand without cable end sleeve 0 – 6 mm² Connectable conductor cross section solid-core 0 – 6 mm² Connectable conductor cross section multi-wired 0 – 6 mm² Explosion-tested version ‘Ex e’ No Closing plate required No Halogen free No Transparent No · Technical Data Sheet – Click to Download
