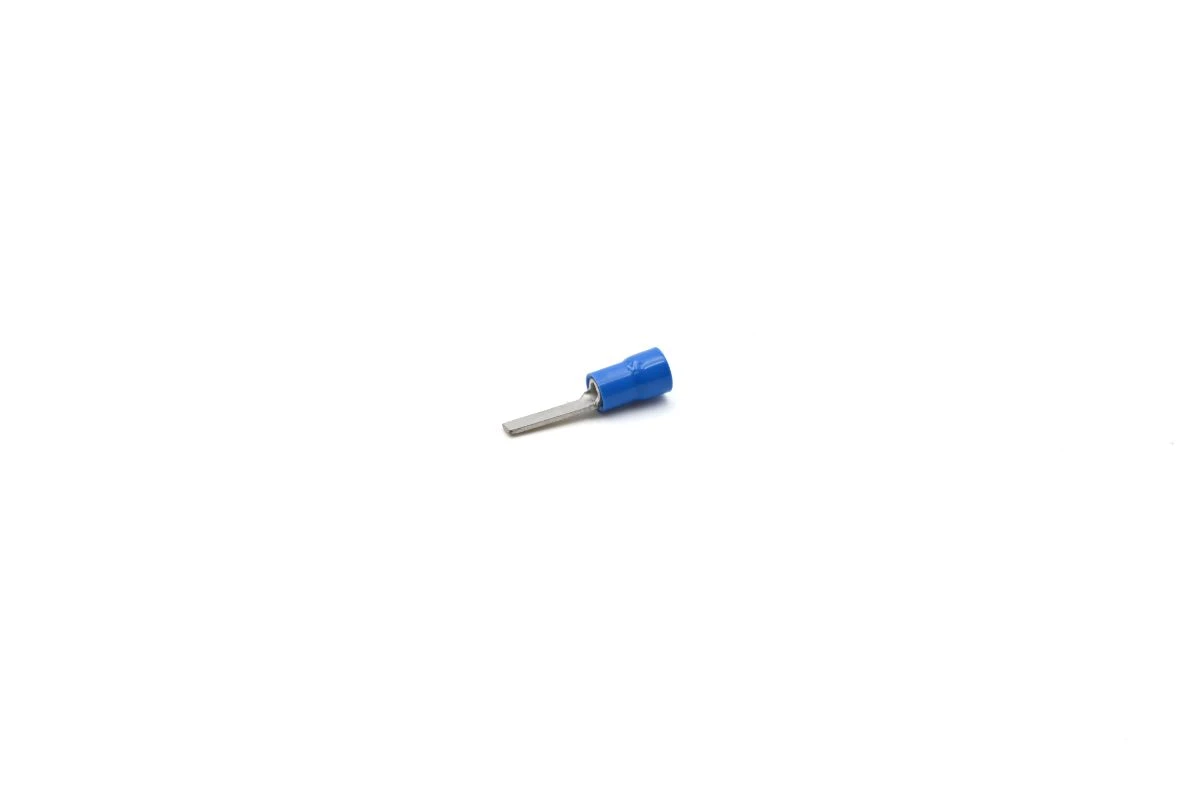

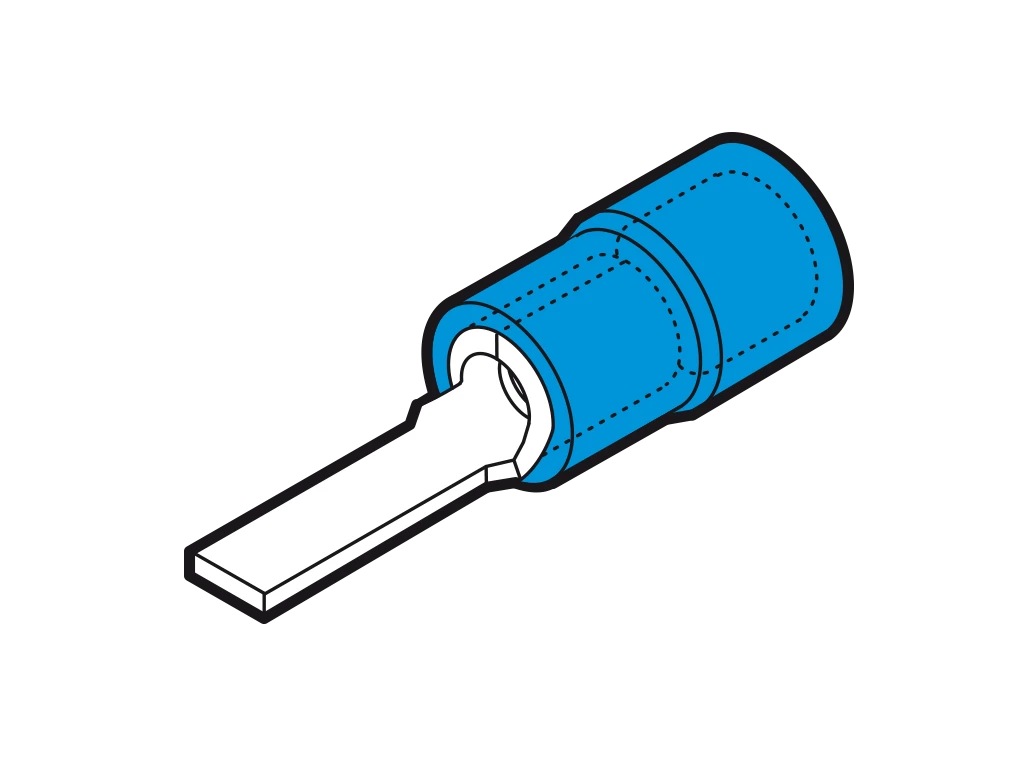

Blade Terminal Blue
Blade Terminal Blue
Blade Terminal Blue - Image 2
Blade Terminal Blue - Image 3
Blade Terminal Blue - Image 4

Blade Terminal Blue

£0.10 Incl. VAT

1.5mm²-2.5mm² PVC insulated blade terminal 13.3mm x 2.9mm blade size blue · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · BREAKING LOAD (N/mm2) : 45÷50

1200 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BF-PP12/29 Categories: , , Brand: Part Number: 1062006547

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Flange shape Pin shape Colour insulation Blue Sleeve form Short Material Copper Insulation Polyvinyl chloride (PVC) Surface protection Tinned Bolt dimension (metric) – Max. current (Imax) – A Suitable for round conductors Yes Suitable for solid cores No According to DIN No For pull protected connections No Reel packaging No Useful for stranded conductors Yes Nominal cross section 1.5 – 2.5 mm² AWG-range 16 – 14 Suitable for high temperatures (to 650 °C) No Suitable for flat conductors No Suitable for fine strand conductors Yes Suitable for insulated varnish No · Technical Data Sheet – Click to Download
