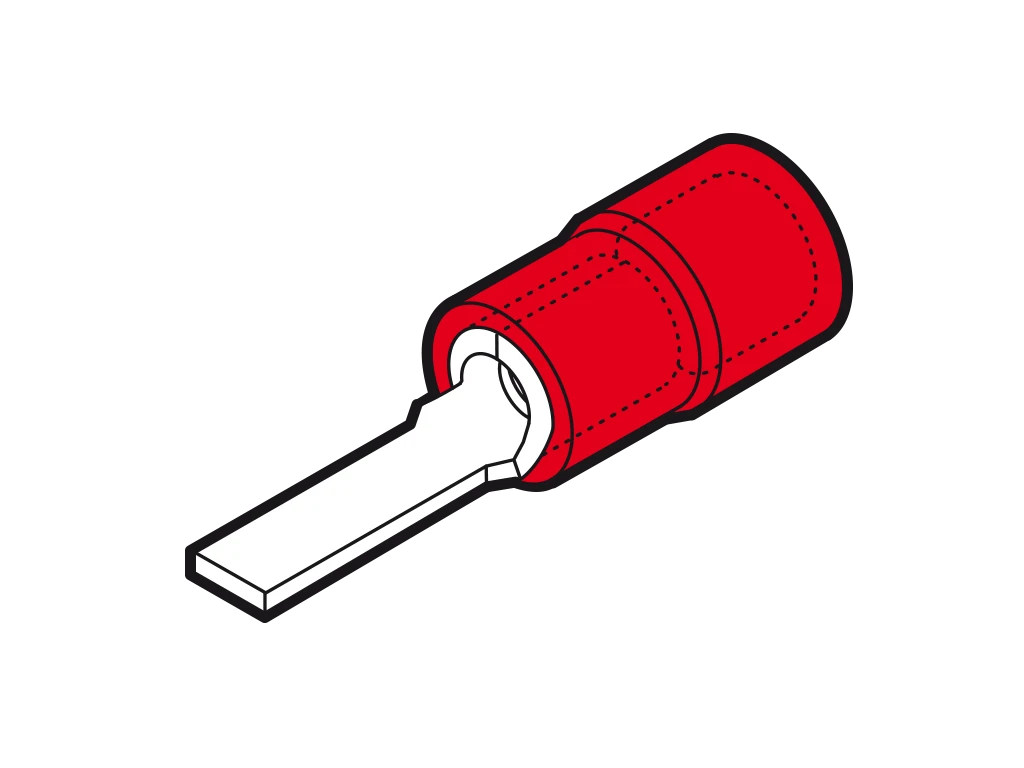

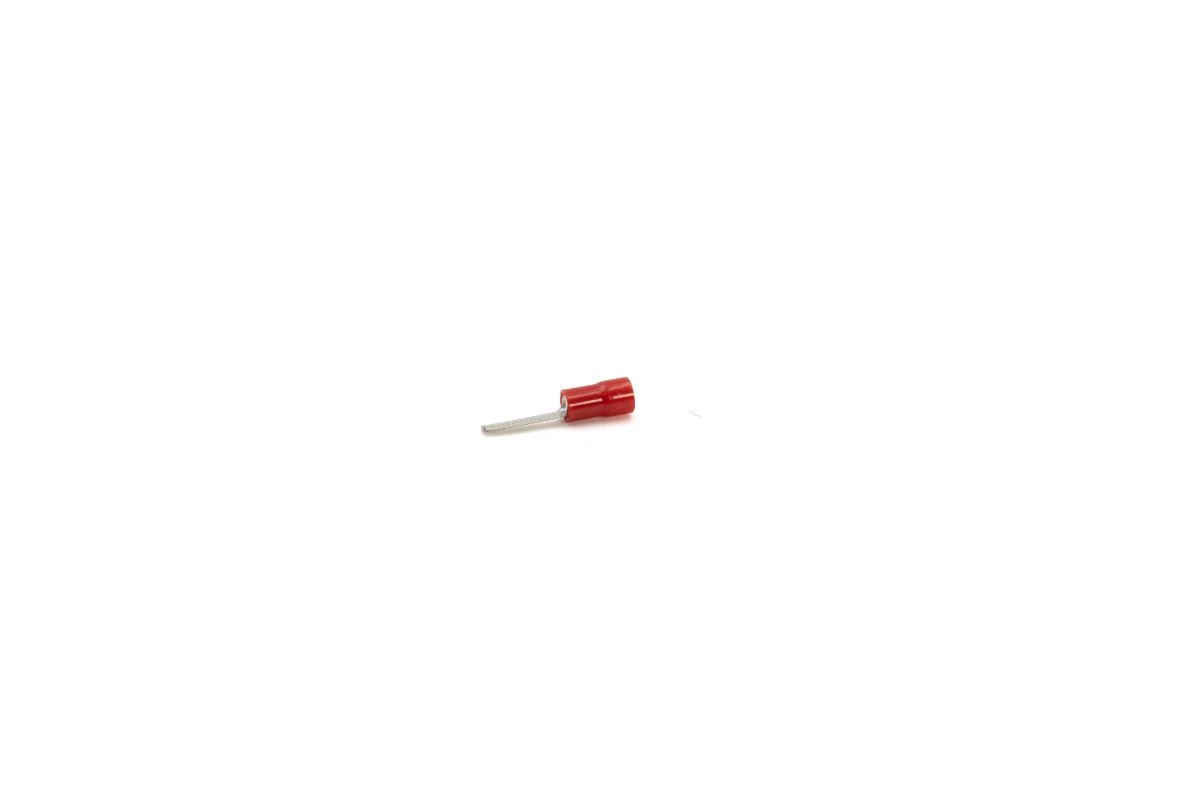

Cembre 0.25mm²-1.5mm² blade terminal 13.2mm red [Pack of 100]
Cembre 0.25mm²-1.5mm² blade terminal 13.2mm red [Pack of 100]
Cembre 0.25mm²-1.5mm² blade terminal 13.2mm red [Pack of 100] - Image 2
Cembre 0.25mm²-1.5mm² blade terminal 13.2mm red [Pack of 100] - Image 3
Cembre 0.25mm²-1.5mm² blade terminal 13.2mm red [Pack of 100] - Image 4

Cembre 0.25mm²-1.5mm² blade terminal 13.2mm red [Pack of 100]

£0.11 Incl. VAT

0.25mm²-1.5mm² PVC insulated blade terminal 13.2mm x 1.9mm blade size red · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RF-PP12/19 Categories: , , Brand: Product Code: 2500112218

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Material Copper Flange shape Pin shape Colour insulation Red Insulation Polyvinyl chloride (PVC) Surface protection Tinned Bolt dimension (metric) – Nominal cross section 0.25 – 1.5 mm² Max. current (Imax) – A Suitable for high temperatures (to 650 °C) No Suitable for flat conductors No Suitable for fine strand conductors Yes Suitable for insulated varnish No Useful for stranded conductors Yes Suitable for solid cores No Reel packaging No For pull protected connections No Suitable for round conductors Yes · Technical Data Sheet – Click to Download
