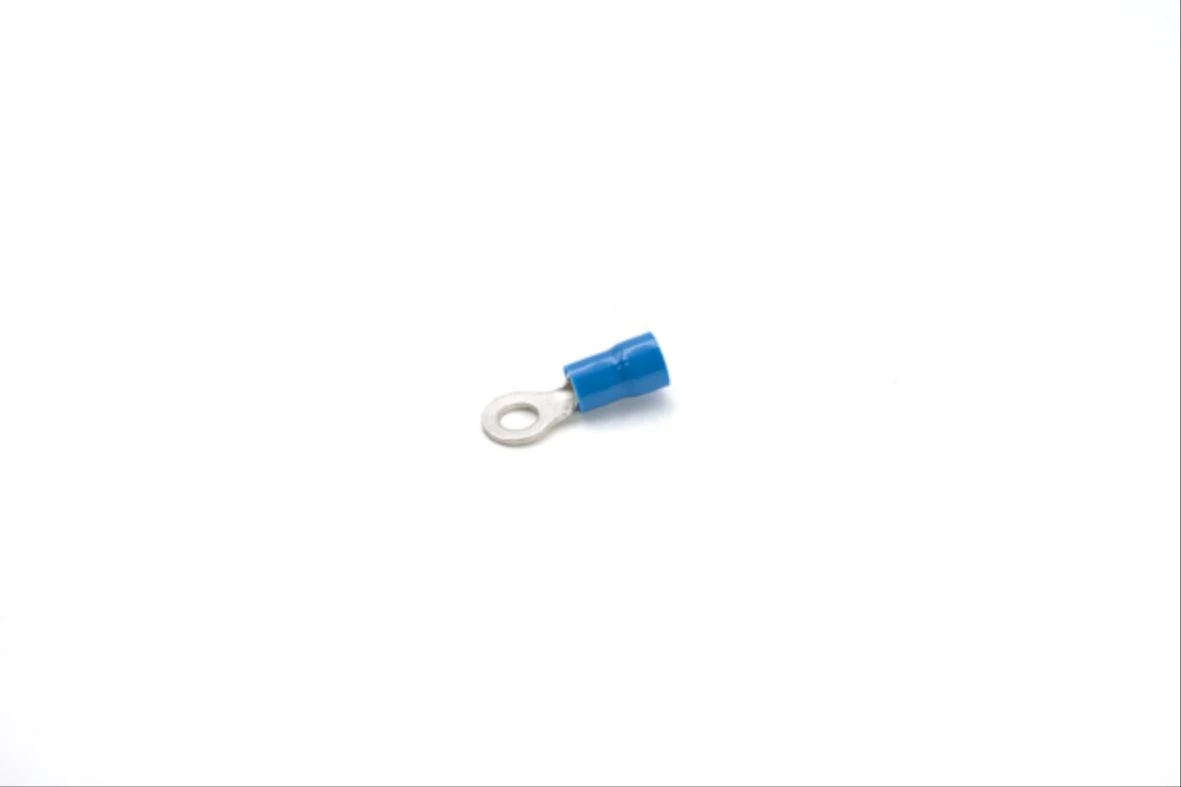

BP-M4 Ring Terminal Blue
BP-M4 Ring Terminal Blue
BP-M4 Ring Terminal Blue - Image 2
BP-M4 Ring Terminal Blue - Image 3
BP-M4 Ring Terminal Blue - Image 4

BP-M4 Ring Terminal Blue

£0.13 Incl. VAT

1.5mm²-2.5mm² Halogen free Polycarbonate insulated ring terminal M4 stud blue · · · Insulation sleeve in Polycarbonate · · -20°C to +115°C Temperature Range · · Facilited Introduction of the conductor · · Halogen Free · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility

300 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BP-M4 Categories: , , Brand: Part Number: 2500112645

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Colour insulation Blue Sleeve form Short Material Copper Insulation PC Surface protection Tinned Nominal cross section 1.5 – 2.5 mm² Suitable for flat conductors No AWG-range 16 – 14 Max. current (Imax) – A Bolt dimension (metric) 4 Flange shape Ring shape Suitable for fine strand conductors Yes Suitable for round conductors Yes Suitable for insulated varnish No Suitable for high temperatures (to 650 °C) No Suitable for solid cores No Useful for stranded conductors Yes Reel packaging No For pull protected connections No According to DIN No
