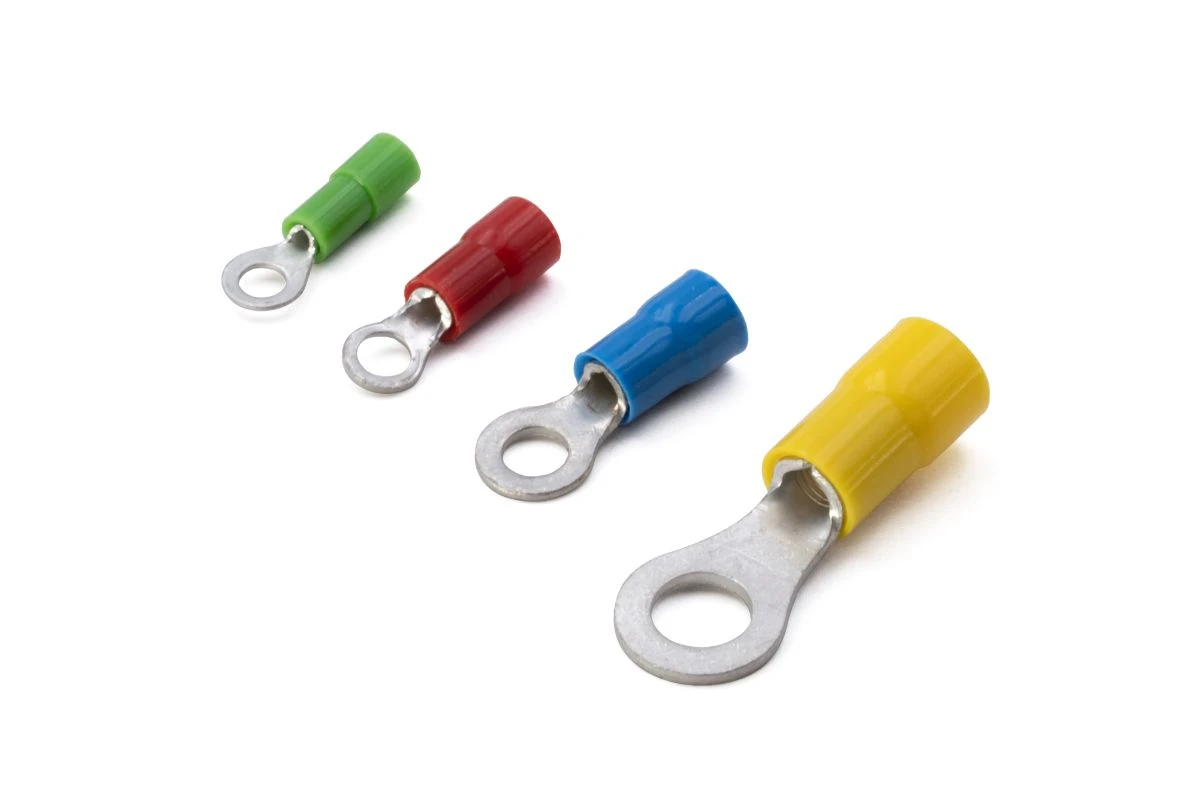

Cembre BP-M6 Ring Terminal Blue
1.5mm²-2.5mm² Halogen free Polycarbonate insulated ring terminal M6 stud blue · · · Insulation sleeve in Polycarbonate · · -20°C to +115°C Temperature Range · · Facilited Introduction of the conductor · · Halogen Free · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Purchased in multiples of 100 only
Description
Technical Specifications Technical Specifications Solderless copper terminals for copper conductors Colour insulation Blue Material Copper Insulation PC Sleeve form Short Surface protection Tinned Flange shape Ring shape Bolt dimension (metric) 6 Reel packaging No Suitable for solid cores No AWG-range 16 – 14 Nominal cross section 1.5 – 2.5 mm² Max. current (Imax) – A For pull protected connections No Useful for stranded conductors Yes According to DIN No Suitable for fine strand conductors Yes Suitable for insulated varnish No Suitable for flat conductors No Suitable for high temperatures (to 650 °C) No Suitable for round conductors Yes
