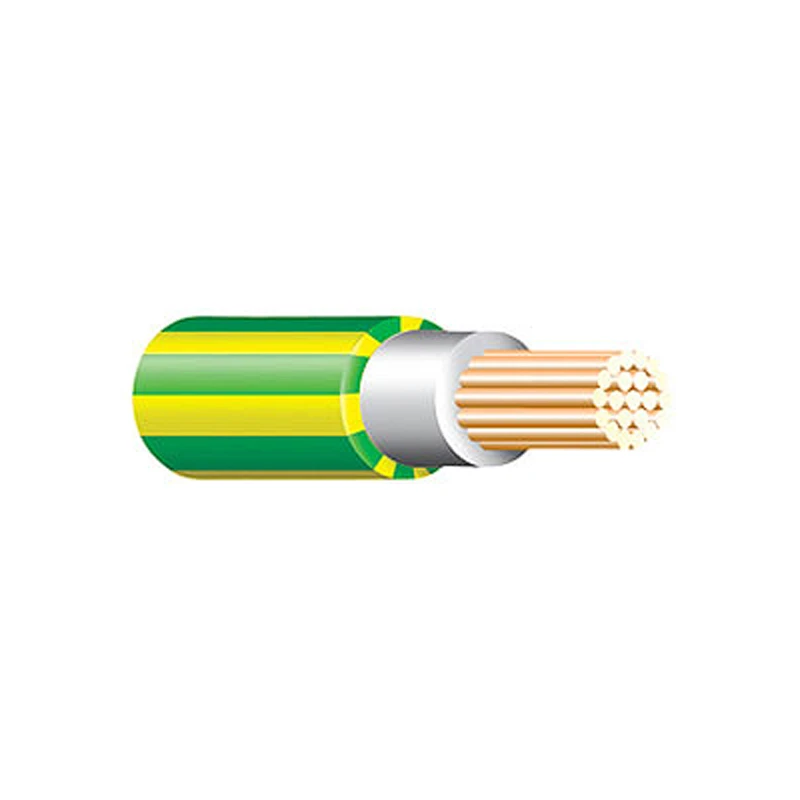

BS6231 16.0mm² Green/Yellow Tri-Rated Cable 1-Core Panel Wire 100m
BS6231 16.0mm² Green/Yellow Tri-Rated Cable 1-Core Panel Wire 100m
BS6231 16.0mm² Green/Yellow Tri-Rated Cable 1-Core Panel Wire 100m - Image 2
BS6231 16.0mm² Green/Yellow Tri-Rated Cable 1-Core Panel Wire 100m - Image 3
BS6231 16.0mm² Green/Yellow Tri-Rated Cable 1-Core Panel Wire 100m - Image 4

BS6231 16.0mm² Green/Yellow Tri-Rated Cable 1-Core Panel Wire 100m

£411.24 Incl. VAT

Factor (close protection) is 1.0. Temperature range is recognised by UL and CSA as heat-resisting with a maximum conductor operating temperature of 105°C. BS 6231 specifies a maximum conductor operating temperature of 90°C for continuous use with a limit of 15000 hours at 105°C. PW01 has good low temperature flexibility. Meeting cold bend tests down to -30°C. Maximum working voltage is UL, CSA 600V rms BS 6231 (uo/u) 600/1000V rms. Spread of flame. · · · Cable Size: 16.0mm² · · Colour: Green/Yellow · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Panel Wire

2200 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BS6231-16.0-G/Y100 -RX Categories: , , Brand: Part Number: 2500445109

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Core colour Black Sheath colour Black Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) AWG size 6 Conductor category Class 5 = flexible Core identification Colour Nominal cross sectional area of conductor 16 mm² Conductor Diameter 16 mm Number of cores 1 Twisted cores No · Technical Data Sheet – Click to Download
