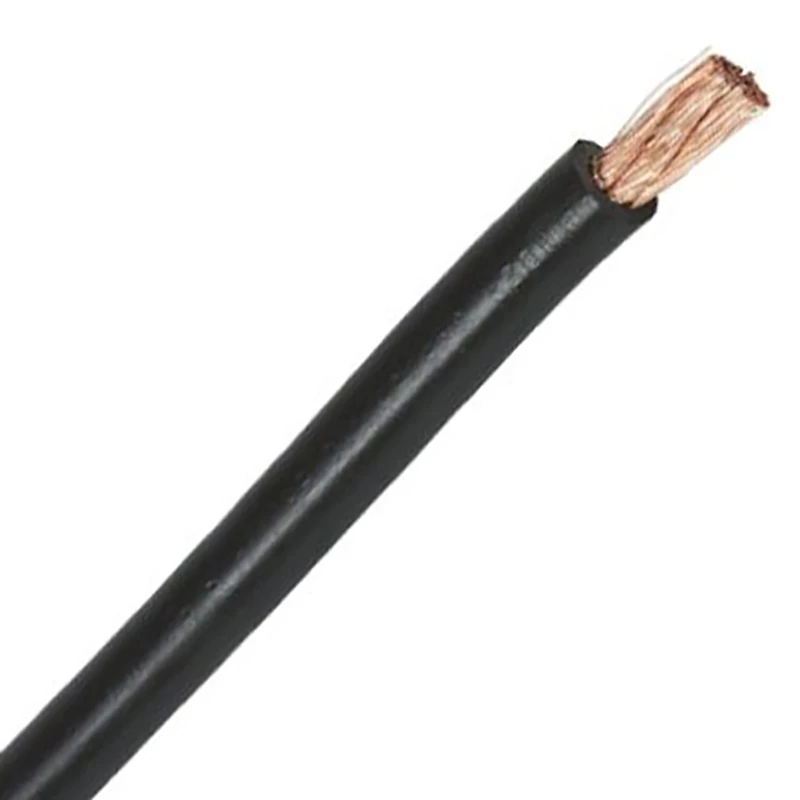

Commodity Cables BS6231 6.0mm² Black Tri-Rated Cable 1-Core Panel Wire
Commodity Cables BS6231 6.0mm² Black Tri-Rated Cable 1-Core Panel Wire
Commodity Cables BS6231 6.0mm² Black Tri-Rated Cable 1-Core Panel Wire - Image 2
Commodity Cables BS6231 6.0mm² Black Tri-Rated Cable 1-Core Panel Wire - Image 3
Commodity Cables BS6231 6.0mm² Black Tri-Rated Cable 1-Core Panel Wire - Image 4

Commodity Cables BS6231 6.0mm² Black Tri-Rated Cable 1-Core Panel Wire

Pack of 100

£198.72 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. A Control Panel Cable made of annealed copper. Temperature range is recognised by UL and CSA as heat-resisting with a maximum conductor operating temperature of 105°C. The standard BS 6231 specifies a maximum conductor operating temperature of 90°C for continuous use with a limit of 15000 hours at 105°C. PW01 has good low temperature flexibility, meeting cold bend tests down to -30°C. The maximum working voltage is UL, CSA 600Vrms BS 6231 (uo/u) 600/1000V rms. · · · Cable Size: 6.0mm² · · Colour: Black · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Panel Wire

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BS6231-6.0-BLK100 CABL-RX Categories: , , Brand: Product Code: 2500445134

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations AWG size 10 Conductor material Copper Core colour Brown Sheath colour Brown Conductor category Class 5 = flexible Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Nominal cross sectional area of conductor 6 mm² Core identification Colour Number of cores 1 Twisted cores No Conductor Diameter 6 mm · Technical Data Sheet – Click to Download
