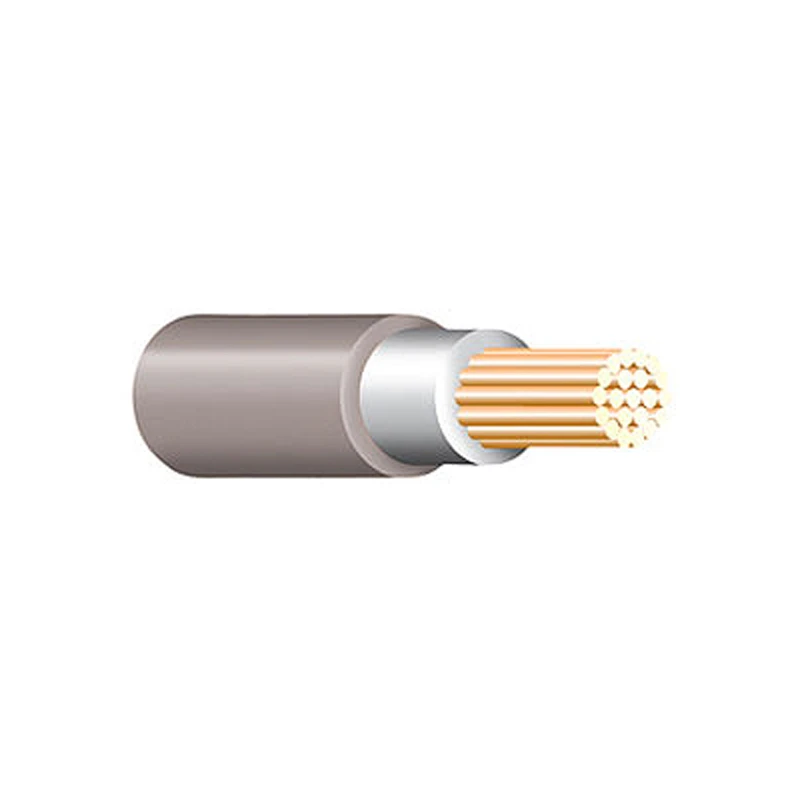

Commodity Cables BS6231 6.0mm² Grey Tri-Rated Cable 1-Core Panel Wire
Commodity Cables BS6231 6.0mm² Grey Tri-Rated Cable 1-Core Panel Wire
Commodity Cables BS6231 6.0mm² Grey Tri-Rated Cable 1-Core Panel Wire - Image 2
Commodity Cables BS6231 6.0mm² Grey Tri-Rated Cable 1-Core Panel Wire - Image 3
Commodity Cables BS6231 6.0mm² Grey Tri-Rated Cable 1-Core Panel Wire - Image 4

Commodity Cables BS6231 6.0mm² Grey Tri-Rated Cable 1-Core Panel Wire

Pack of 100

£153.18 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. Factor (close protection) is 1.0. Tempeture range is recognised by UL and CSA as heat-resisting with a maximum conductor operating temperature of 105°C. BS 6231 specifies a maximum conductor operating temperature of 90°C for continuous use with a limit of 15000 hours at 105°C. PW01 has good low temperature flexibility. Meeting cold bend tests down to -30°C. Maximum working voltage is UL, CSA 600V rms BS 6231 (uo/u) 600/1000V rms. Spread of flame. · · · Cable Size: 6.0mm² · · Colour: Grey · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Panel Wire

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BS6231-6.0-GRY100 CABL-RX Categories: , , Brand: Product Code: 2500445138

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Core colour Brown Sheath colour Brown AWG size 10 Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Core identification Colour Conductor category Class 5 = flexible Conductor Diameter 6 mm Number of cores 1 Nominal cross sectional area of conductor 6 mm² Twisted cores No · Technical Data Sheet – Click to Download
