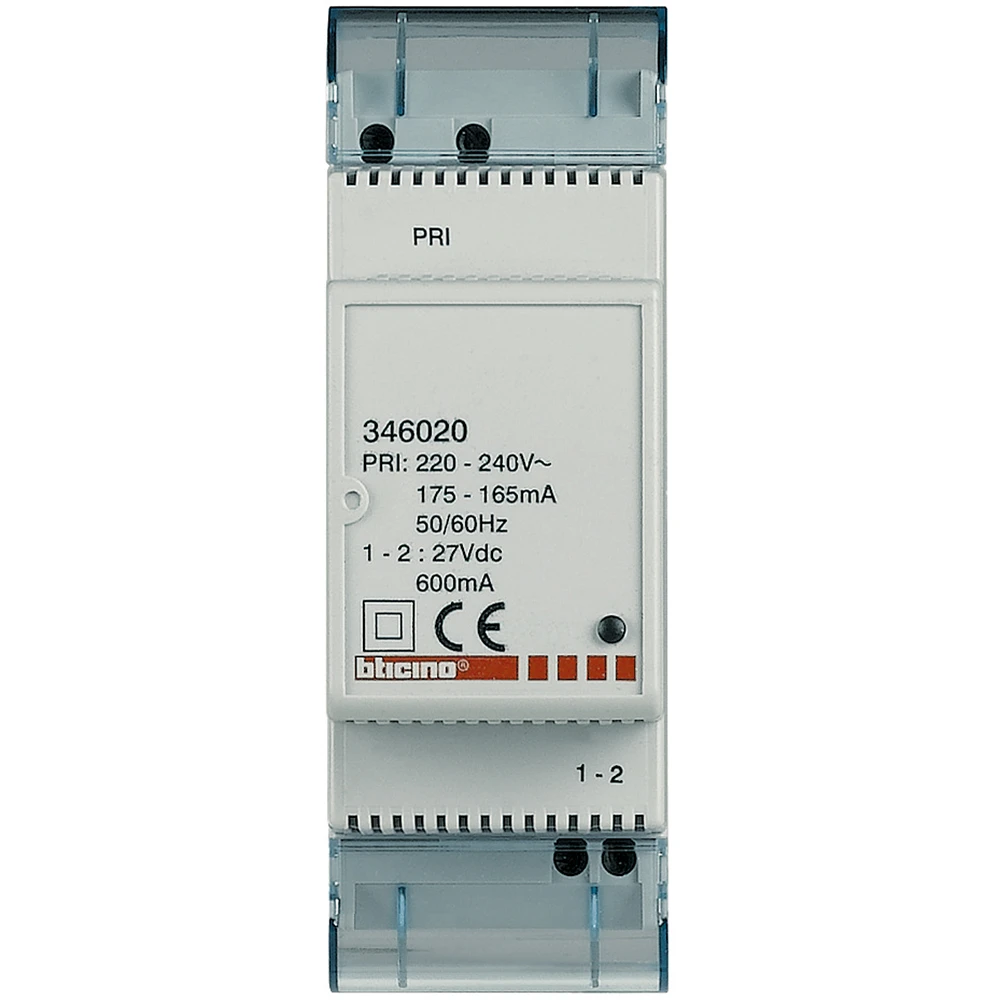

Bticino 2 DIN Additional Power Supply Unit
£240.08 Incl. VAT
The Bticino 2 DIN Additional Power Supply Unit is a reliable and versatile solution for your door entry system. It provides a 27 Vdc continuous low voltage output with a maximum current of 600 mA, making it ideal for powering a variety of door entry devices, including entrance panels, internal units, and video intercoms.The power supply is 2 DIN in size and features a SELV double insulation safety device, making it a safe and reliable choice for any home or business. It is also protected on the PRI side (with fuse) against overload and short circuit.The Bticino 2 DIN Additional Power Supply Unit is easy to install and use. Simply mount it in a standard 2 DIN housing and connect it to your door entry system. The power supply will automatically provide power to your devices, so you can start using them right away. · · · Additional power supply to be used to supply entrance panels and internal units locally · · 2 DIN modular enclosure · · Power supply 230 Vac at 50-60 Hz · · The output provides 27 Vdc continuous low voltage, with maximum current of 600 mA and it is protected on the PRI side (with fuse) against overload and short circuit
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications DC-power supply Degree of protection (IP rating) IP30 Voltage type of supply voltage DC Type of electric connection Screw connection Width 33.9 mm Height 89.7 mm Nominal value output voltage 1 – V Max. output current 1 0.6 A Max. output current 2 – A Power output 16.2 W Max. output current 3 – A Nominal value output voltage 2 – V Nominal value output current 3 – A Nominal value output current 2 – A Nominal value output current 1 – A Nominal value output voltage 3 – V Power consumption 41.8 VA Recess width – mm Width in number of modular spacings 2 Depth 66.2 mm Recess height – mm 3rd secondary output voltage – – – V 2nd secondary output voltage – – – V 1st secondary output voltage 26.9 – 27.1 V Rated supply voltage at AC 50 Hz 220 – 240 V Rated supply voltage at AC 60 Hz 220 – 240 V Rated supply voltage at DC – – – V Modular version Yes Rail mounting possible Yes Suitable for safety functions No Short-circuit-proof Yes Output voltage stabilized Yes Direct mounting possible No Secondary voltage adjustable No Stabilized Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
