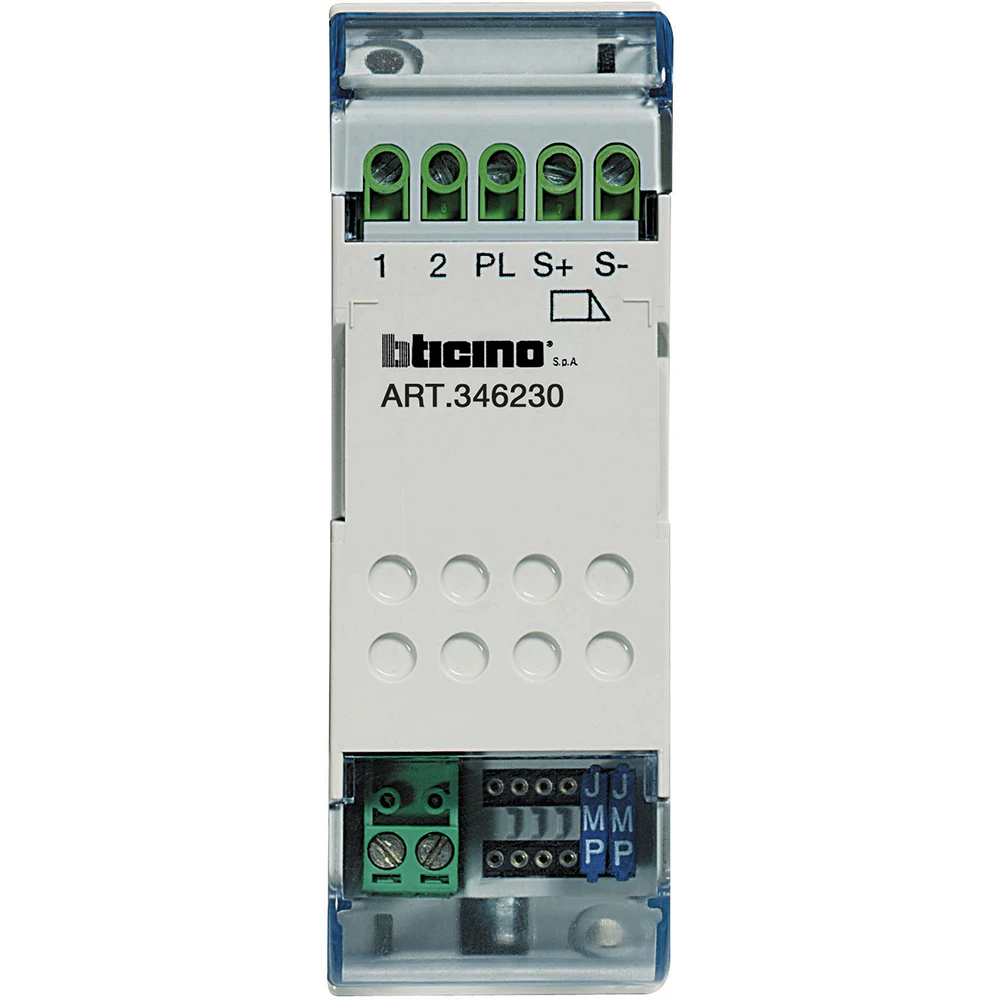

Bticino 2 Din Door Lock Actuator
£122.05 Incl. VAT
Door lock actuator with 2 DIN modular housing for the power supply and activation of an electrical door lock. The device must be configured using physical configurators. · · · Power supply from SCS BUS: 18 – 27 Vdc · · Stand by absorption: 10 mA · · Max. operating absorption: 300 mA · · Operating temperature: 5 – 40 C
2 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Switch actuator for bus system Degree of protection (IP rating) IP20 Mounting method DRA (DIN-rail adapter) Power consumption – W Minimum depth of back box – mm Output power – W Rated current 6 A Bus connection included Yes Rated operating voltage 18 – 27 V Max. switching power LED – W Max. number of switching contacts 1 Max. switching current – A Number of digital inputs 1 Max. switching power 144 W Width in number of modular spacings 2 Radio frequent bidirectional No With LED indication No Modular expandability No Different phases connectable No Bus system KNX radio No Bus system Powernet No Bus system LON No Bus system radio frequent Yes Bus system KNX No Local operation/hand operation No Bus module detachable No Suitable for C-load Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1856640
