Bus Coupler Tesys Island 24Vdc 3A Profibus Double Pole
Bus Coupler Tesys Island 24Vdc 3A Profibus Double Pole
Bus Coupler Tesys Island 24Vdc 3A Profibus Double Pole - Image 2
Bus Coupler Tesys Island 24Vdc 3A Profibus Double Pole - Image 3
Bus Coupler Tesys Island 24Vdc 3A Profibus Double Pole - Image 4

Bus Coupler Tesys Island 24Vdc 3A Profibus Double Pole

£262.20 Incl. VAT

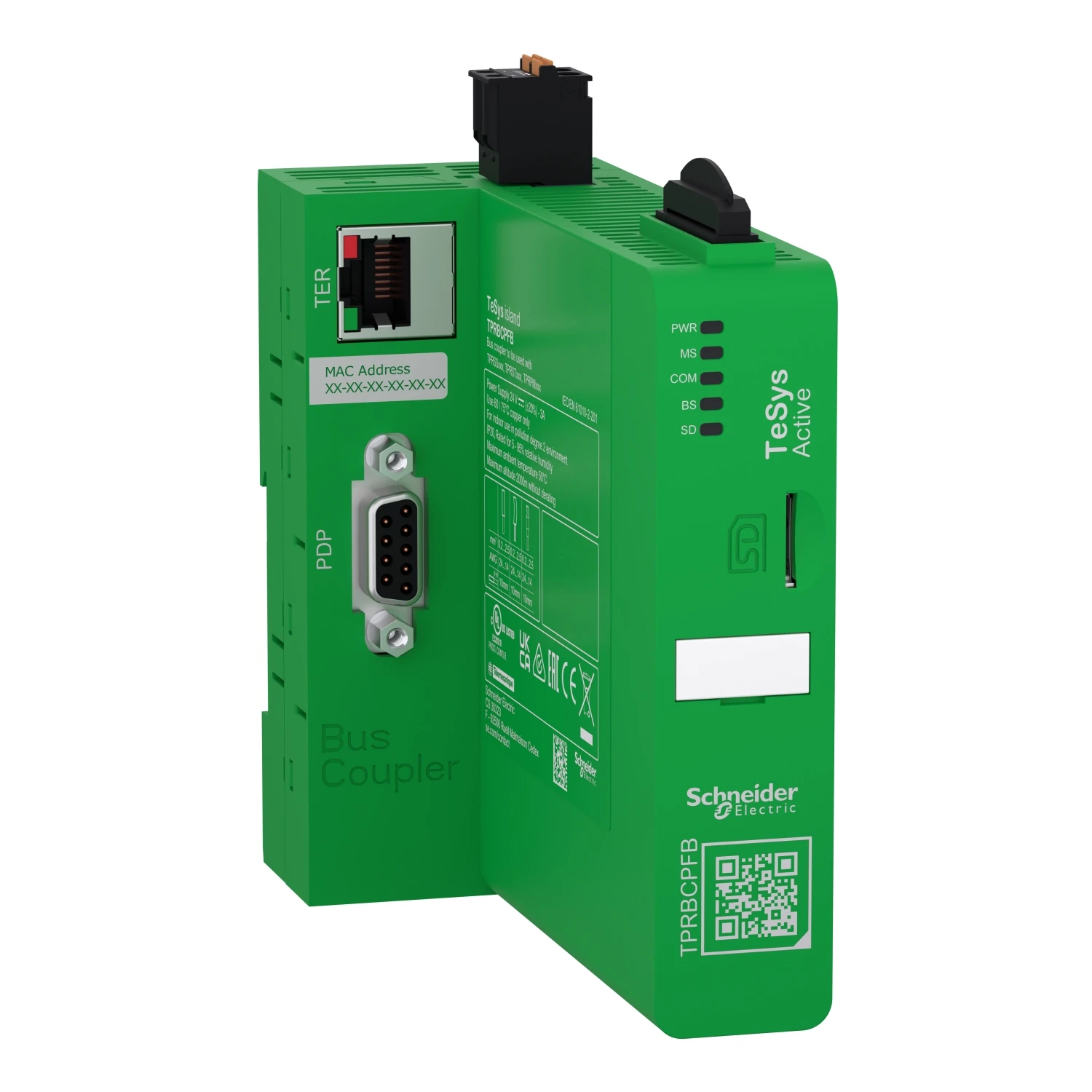

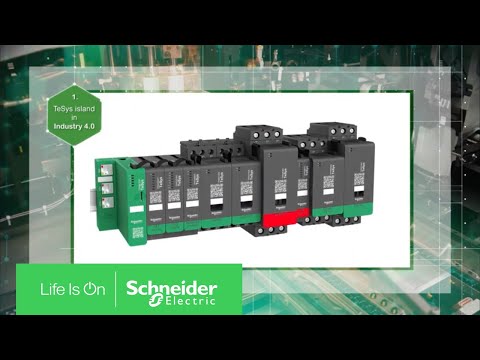

TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over PROFIBUS DP. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides one D-Sub port for PROFIBUS DP, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified, Green Premium compliant (RoHS/REACh). · · · Full integration with SoMove/MachineExpert for the programming of the island · · One single 24V DC power supply for the complete island · · Manages motors and other electrical loads up to 80 A (AC-3) / 37 kW/40 hp · · All adjustments and setting are digitized, no mechanical dials or dip switches · · Ambient temperature: -25 to 70°C

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TPRBCPFB Categories: , , Brand: Part Number: 2501393211

Description

Technical Specifications  Technical Specifications Fieldbus, decentr. periphery – communication module Explosion safety category for gas None Performance level acc. to EN ISO 13849-1 None SIL according to IEC 61508 None Explosion safety category for dust None Supply voltage AC 50 Hz – V Supply voltage AC 60 Hz – V Supply voltage DC 20.4 – 28.8 V Height 118 mm Width 50 mm Depth 114 mm Degree of protection (IP rating) IP20 Voltage type of supply voltage DC Suitable for safety functions No System accessory Yes Fieldbus connection over separate bus coupler possible No Supporting protocol for PROFINET IO No Appendant operation agent (Ex ia) No Supporting protocol for PROFINET CBA No Appendant operation agent (Ex ib) No Rail mounting possible Yes Radio standard WLAN 802.11 No IO link master No Radio standard Bluetooth No Radio standard GSM No Radio standard UMTS No With potential separation Yes Radio standard GPRS No Supporting protocol for SERCOS No Supporting protocol for ASI No Supporting protocol for DeviceNet No Supporting protocol for PROFIBUS Yes Supporting protocol for other bus systems Yes Supporting protocol for SUCONET No Supporting protocol for INTERBUS No Supporting protocol for CAN No Supporting protocol for TCP/IP No Supporting protocol for PROFIsafe No Supporting protocol for MODBUS No Supporting protocol for DeviceNet Safety No Supporting protocol for Data-Highway No Supporting protocol for KNX No Supporting protocol for LON No Radio standard LTE No Radio standard eGPRS No Supporting protocol for INTERBUS-Safety No Front built-in possible No Supporting protocol for AS-Interface Safety at Work No Wall mounting/direct mounting No Rack-assembly possible No Supporting protocol for SafetyBUS p No Supporting protocol for Foundation Fieldbus No Supporting protocol for EtherNet/IP No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
