Bus Coupler TeSys Island PROFINET

£253.92 Incl. VAT

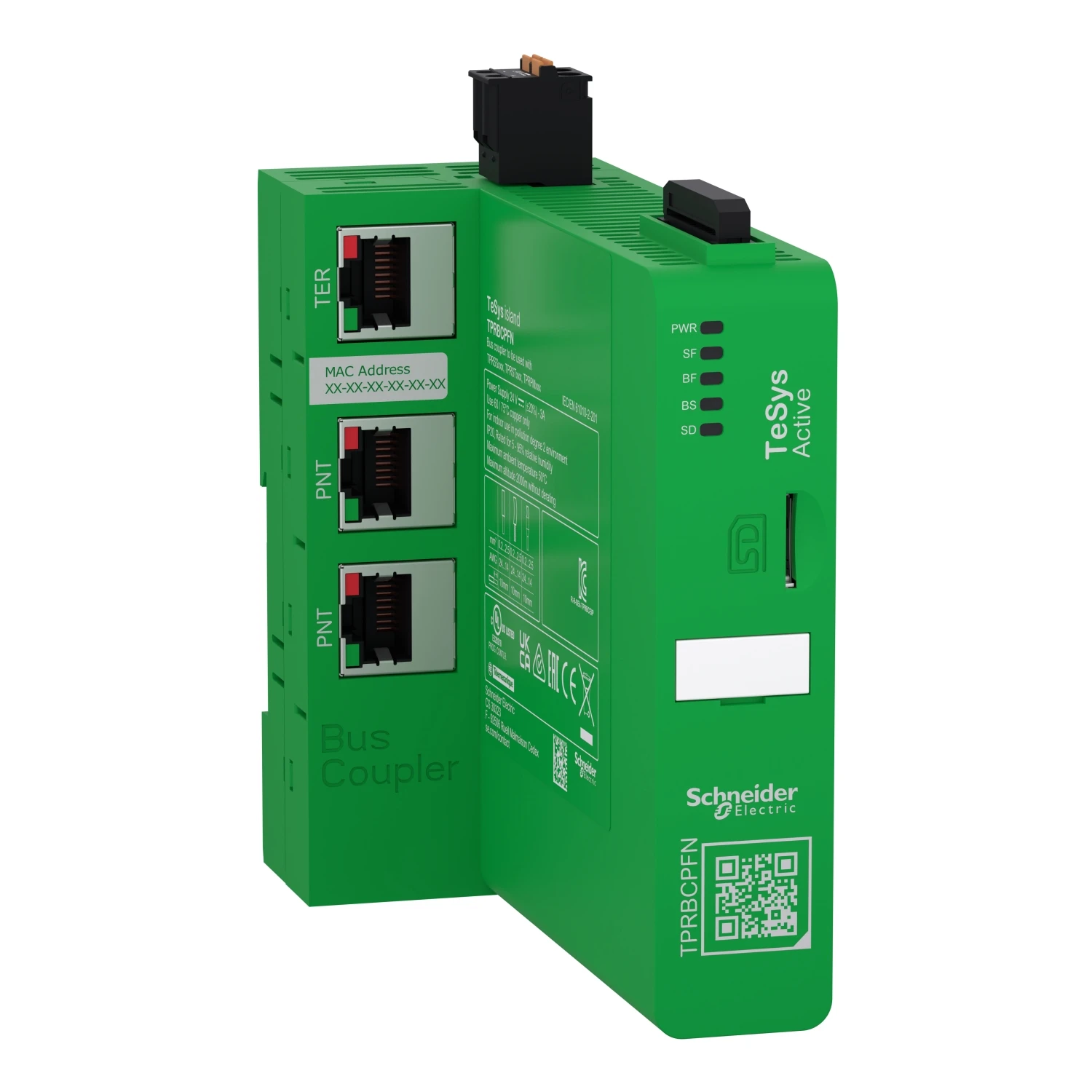

TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over PROFINET IO. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides two RJ45 ports for PROFINET IO, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified, Green Premium compliant (RoHS/REACh). · · · TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over PROFINET IO. · · It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. · · For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. · · To be supplied externally by 24V DC, it provides two RJ45 ports for PROFINET IO, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TPRBCPFN Categories: , , Brand: Part Number: 2501393210

Description

Technical Specifications  Technical Specifications Fieldbus, decentr. periphery – communication module Width 50.00 mm Height 118.00 mm Depth 114.00 mm Supply voltage AC 60 Hz – – – V Supply voltage AC 50 Hz – – – V Supply voltage DC 20.40 – 28.80 V Supporting protocol for TCP/IP No Suitable for safety functions No Supporting protocol for LON No Supporting protocol for INTERBUS No Supporting protocol for PROFIBUS No Supporting protocol for KNX No Radio standard GPRS No Radio standard GSM No Radio standard UMTS No Supporting protocol for MODBUS No Supporting protocol for ASI No Supporting protocol for CAN No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for EtherNet/IP No Supporting protocol for DeviceNet Safety No Supporting protocol for Foundation Fieldbus No Supporting protocol for PROFINET CBA No Supporting protocol for PROFIsafe No Supporting protocol for SafetyBUS p No Supporting protocol for PROFINET IO Yes IO link master No Supporting protocol for SUCONET No Supporting protocol for other bus systems Yes Rail mounting possible Yes With potential separation Yes Appendant operation agent (Ex ia) No Fieldbus connection over separate bus coupler possible No System accessory Yes Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Wall mounting/direct mounting No Rack-assembly possible No Radio standard WLAN 802.11 No Radio standard Bluetooth No Appendant operation agent (Ex ib) No Supporting protocol for SERCOS No Front built-in possible No Supporting protocol for INTERBUS-Safety No · Technical Data Sheet – Click to Download
