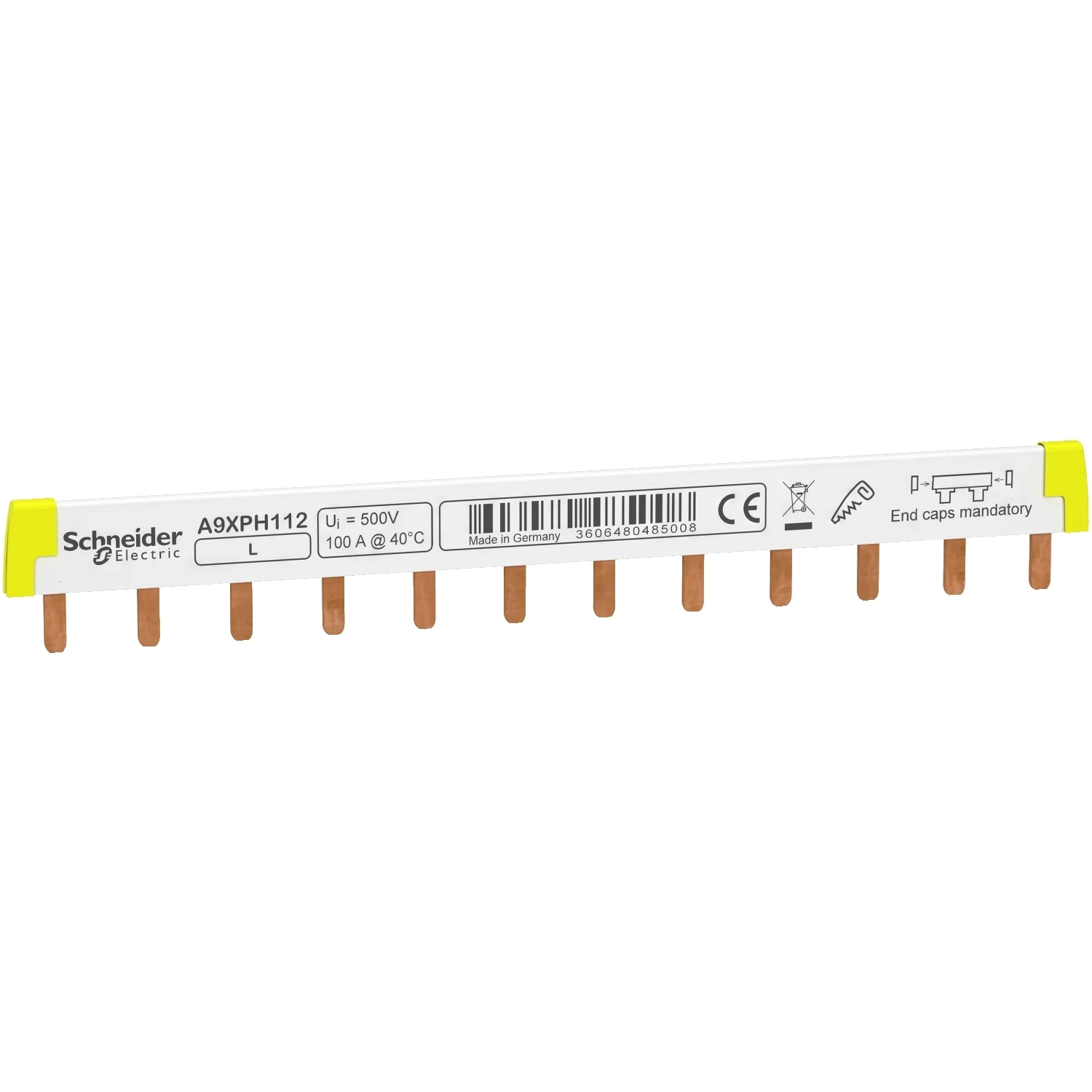

Busbar Single Pole Cutable Combination 12 Modules 100A

This Acti 9 horizontal comb busbar 18mm modules for Acti 9 iC60 or Acti 9 iK60 is cuttable. It is dedicated to 1L installations. The type is L (Line). It is a set of 1 device. It is suitable for 12 devices (1P). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 1. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards. · · · Acti9 is a DIN rail switchgear system that combines efficiency with safety to ensure maximum safety for you, your customers and their installations · · Acti9 is packed full of innovations. Acti 9 enjoys the benefits of Schneider Electric’s more than 40 years of experience · · Acti9 covers all applications, especially polluted environments and networks with absolute safety and improved continuity of service. Example: VisiTrip detects Faulty outgoers · · Acti9 is easy to choose, thanks to its meaningful part numbers. Example: A9xxx225 = 2P, 25 A · · Acti9 is easy to install and environmentally friendly. Example: Its components are 100% recyclable and recoverable. · · The number of phase is 1. The number of poles is 1. · · The Ie rated operational current at 40°C is 100A. · · The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. · · The Ui rated insulation voltage is 500VAC. · · The Ue rated operational voltage is 415VAC.
