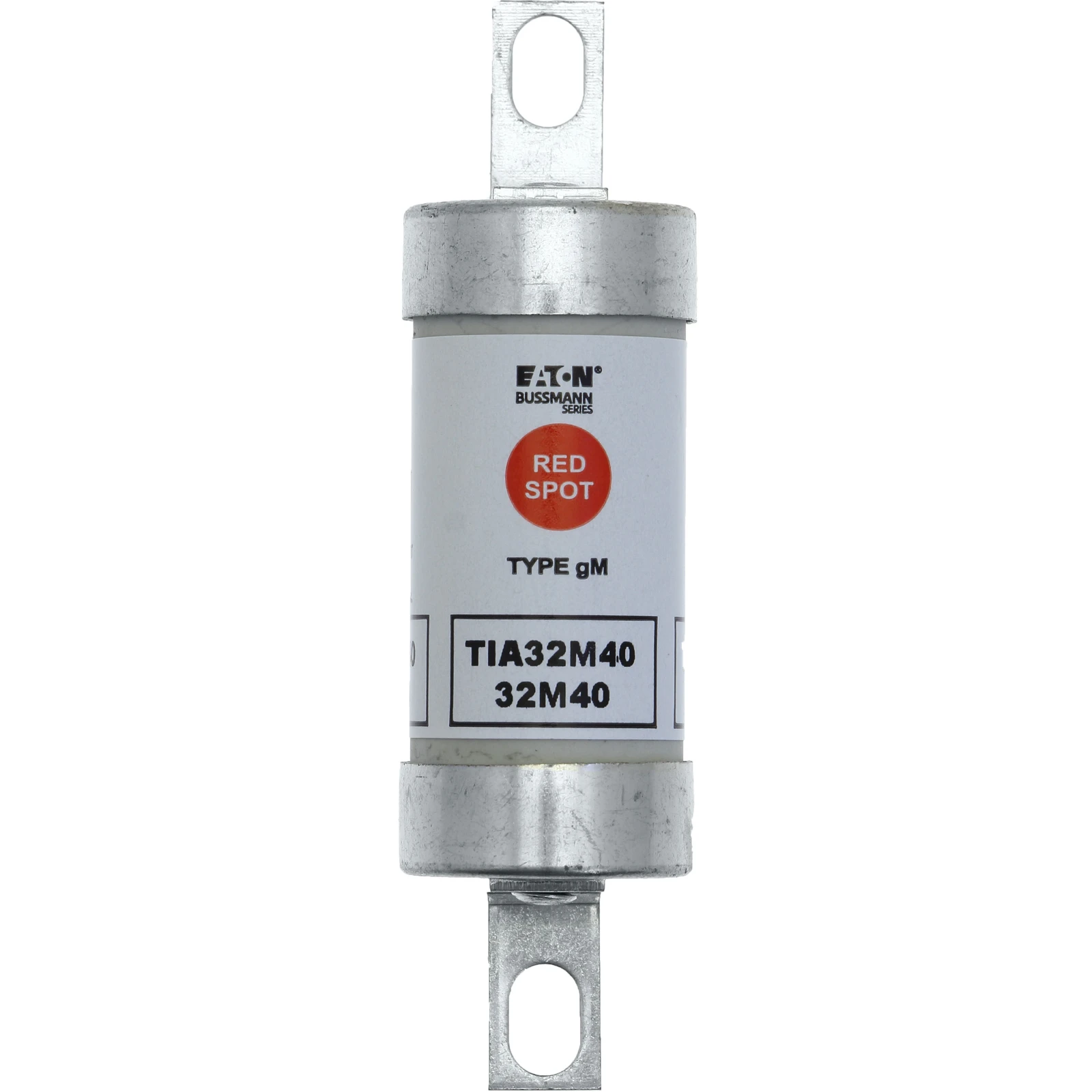

Eaton Bussmann Red Spot 32M40A Offset Bolted Tag Fuse Link
Eaton Bussmann Red Spot 32M40A Offset Bolted Tag Fuse Link
Eaton Bussmann Red Spot 32M40A Offset Bolted Tag Fuse Link - Image 2
Eaton Bussmann Red Spot 32M40A Offset Bolted Tag Fuse Link - Image 3
Eaton Bussmann Red Spot 32M40A Offset Bolted Tag Fuse Link - Image 4

Eaton Bussmann Red Spot 32M40A Offset Bolted Tag Fuse Link

£10.76 Incl. VAT

Red Spot offset bolted tags fuse links are specifically designed for the protection of general motor applications. · · · BS reference: A2 · · gM characteristics for motor protection applications · · Good peak and let-through current limitation · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · Power loss values well within the limits of IEC 60269 · · Compatible with Camaster Compact 32A CM32FC and Red Spot fuse holder 32A RS32 · · Pre-arching: 1,920 · · Total at rated voltage: 8,380 · · 73mm fixing centre · · 660-690V AC/460V DC

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TIA32M40 Categories: , , Brand: Product Code: 2500522403

Description

Technical Specifications  Technical Specifications HRC fuse Utilization category gM (motor protection) Colour code None Type of fuse status indicator None Fuse construction type according to IEC 60269 A2 Fuse system according to IEC 60269 Fuse system E Mounting holes M5 Current type AC/DC Centre-to-centre distance of connections 73 mm Rated voltage DC 460 V Breaking capacity 80 kA Rated voltage AC 660 V Rated current 40 A · Technical Data Sheet – Click to Download
