C-TEC Ctec Auxiliary Device Iso 1 Gang Plate 24V Dc O/Put

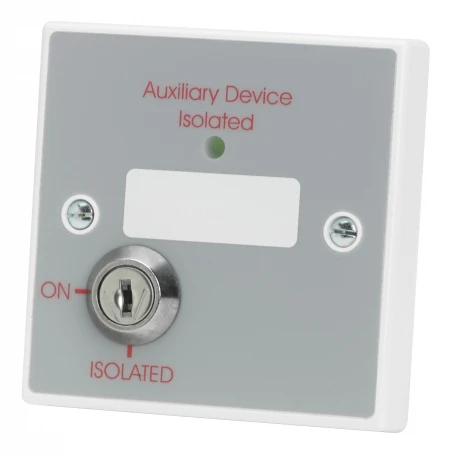

C-Tec BF367 Auxiliary Device Isolator 1 Gang , CTEC , Allows a +24 VDC output from a fire alarm control panel to be remotely isolated to prevent autodiallers, water sprinklers, rollershutters, etc., from activating. Designed so that if monitoring is used on the +24 VDC output being controlled, a fault condition will show at the fire panel when the device is Isolated. Label includes a white write on area allowing installers to add equipment locations. Fits on standard UK 25mm flush or surface mount back boxes. · · · Activation current 10mA @ 27.6 VDC required to illuminate the amber Isolated LED · · Indicators Isolated LED. · · Connections OV; SW In; SW Out. · · Construction & finish White PVC plate; Grey label; Silver plated brass switch material. · · Operating conditions/temperature -10C to +60C. · · Switching Resistive load 3A @ 30V DC; Switching Inductive load 1.5A @ 30V DC; Non-switching current rating 5A Absolute Max.
