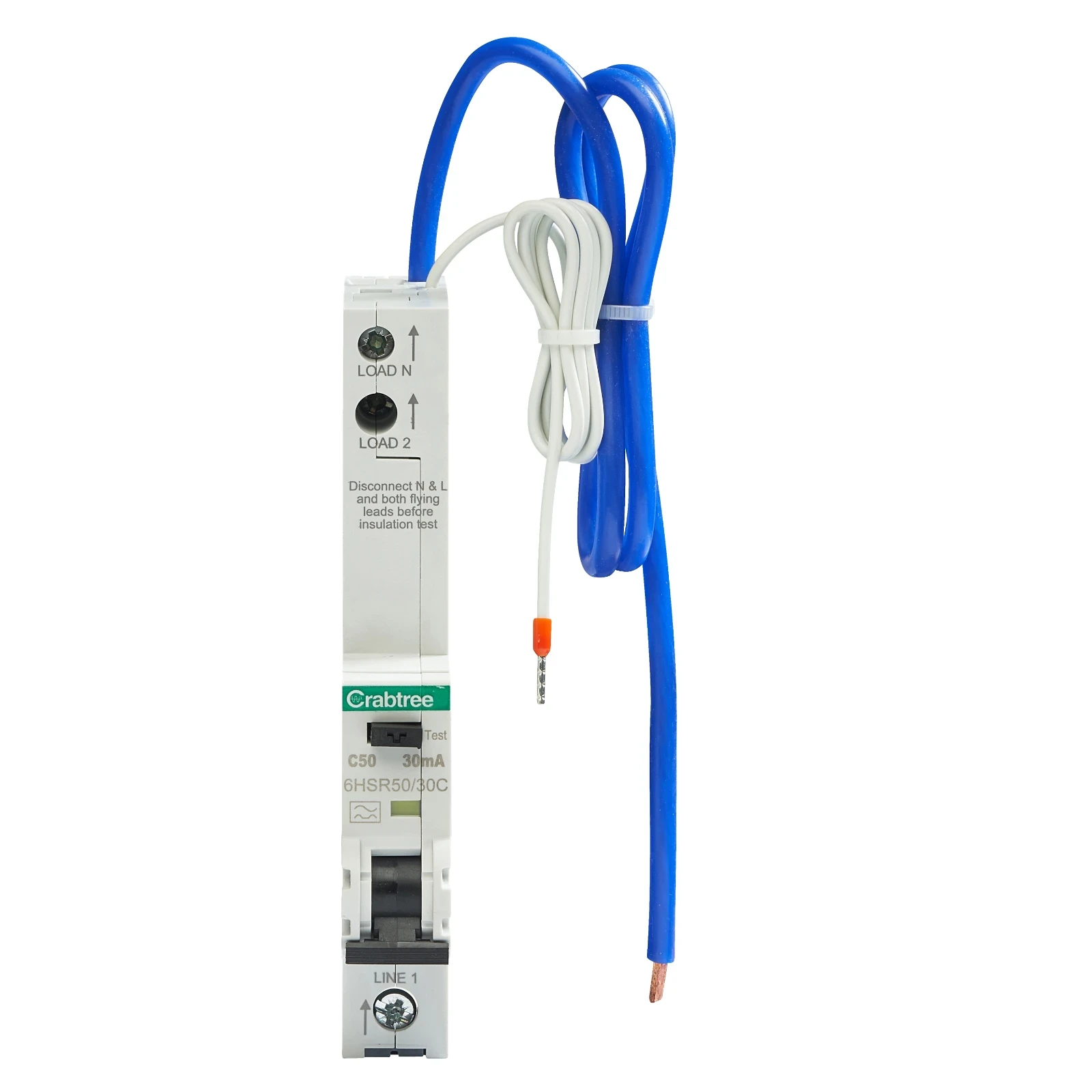

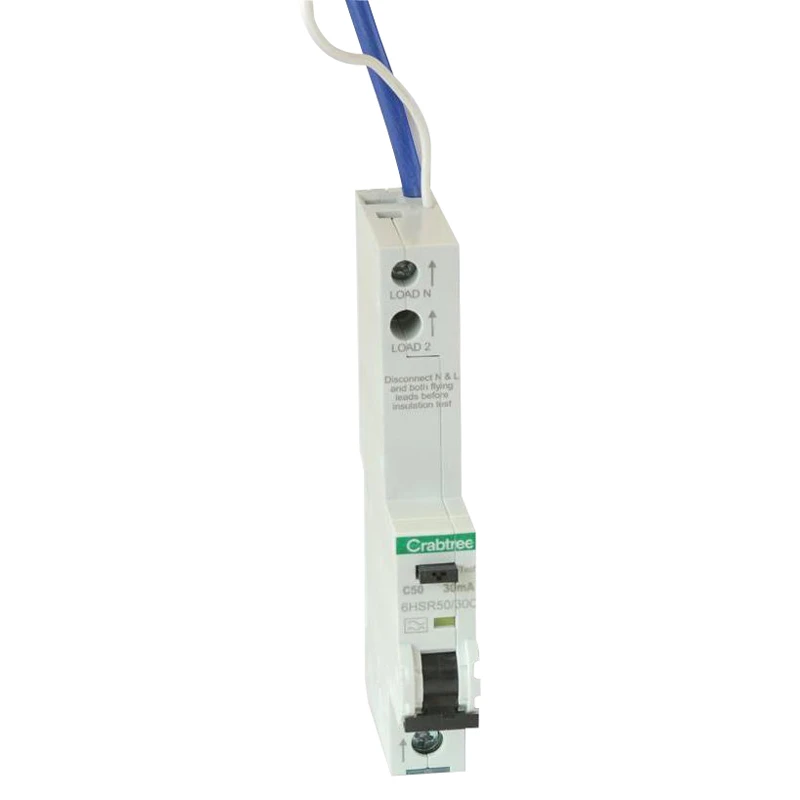

Crabtree C50 30mA 10kA 1P+N Type A RCBO (1 Module Width)
£47.39 Incl. VAT
Crabtree Loadstar RCBO is a 50A, 30mA, single pole, Type C RCBO. It has terminal cable capacity of 16mm² and 18mm width. It is suitable for use within Loadstar distribution board. · · · Single Module 10kA RCBO · · 50A C curve (MCB), 30mA Type A (RCD) · · Neutral & Earth Tail lengths = 600mm · · Suitable for use in Crabtree Loadstar Distribution Boards
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Degree of protection (IP rating) IP20 Mounting method DIN rail Tripping characteristic (type/curve) C Rated voltage 230 V Rated insulation voltage Ui 400 V Rated current 50 A Over voltage category 3 Number of poles (total) 1 Current limiting class 3 Number of protected poles 1 Rated fault current 0.03 A Concurrently switching N-neutral No Ambient temperature during operating -5 – 45 °C Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Width in number of modular spacings 1 Rated short-circuit breaking capacity according to EN 61009 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
